71
9
OTHER FUNCTIONS
■ Tone/DTCS squelch
q Set the desired operating frequency, CTCSS tone and
DTCS code.
w Push [2 TONE] for 1 sec. one or more times to activate the
tone or DTCS squelch. (T SQL or DTCS)
• Subaudible tone encoder “T,” tone squelch “T SQL,” pocket beep
“T SQLS,” DTCS squelch “DTCS,” DTCS beep “SDTCS”
and no tone operation are activated in order.
• Rotating [DIAL] while pushing [2 TONE] also selects the tone
functions.
e Operate the transceiver in the normal way.
r When the received signal includes a matching tone, the
squelch opens and the signal can be heard.
• When the received signal’s tone does not match, tone squelch
does not open, however, the S-indicator shows signal strength.
• To open the squelch manually, push and hold [SQL].
■ Pocket beep function
q Set the desired operating frequency.
w Set the desired CTCSS tone or DTCS code.
e Push [2 TONE] for 1 sec. one or more times to activate the
pocket beep or DTCS beep. (T SQLS or SDTCS)
• Rotating [DIAL] while pushing [2 TONE] also selects the tone
functions.
r When a signal with the correct tone or code is received,
the transceiver emits beep tones for 30 sec. and blinks
“S”.
t Push [PTT] to answer or push [SQL] to stop the beeps and
blinking.
➲ CONVENIENT
Store subaudible tone frequencies, DTCS code, DTCS phase
mode and tone/DTCS squelch ON/OFF settings in memories
(call) for easy recall.

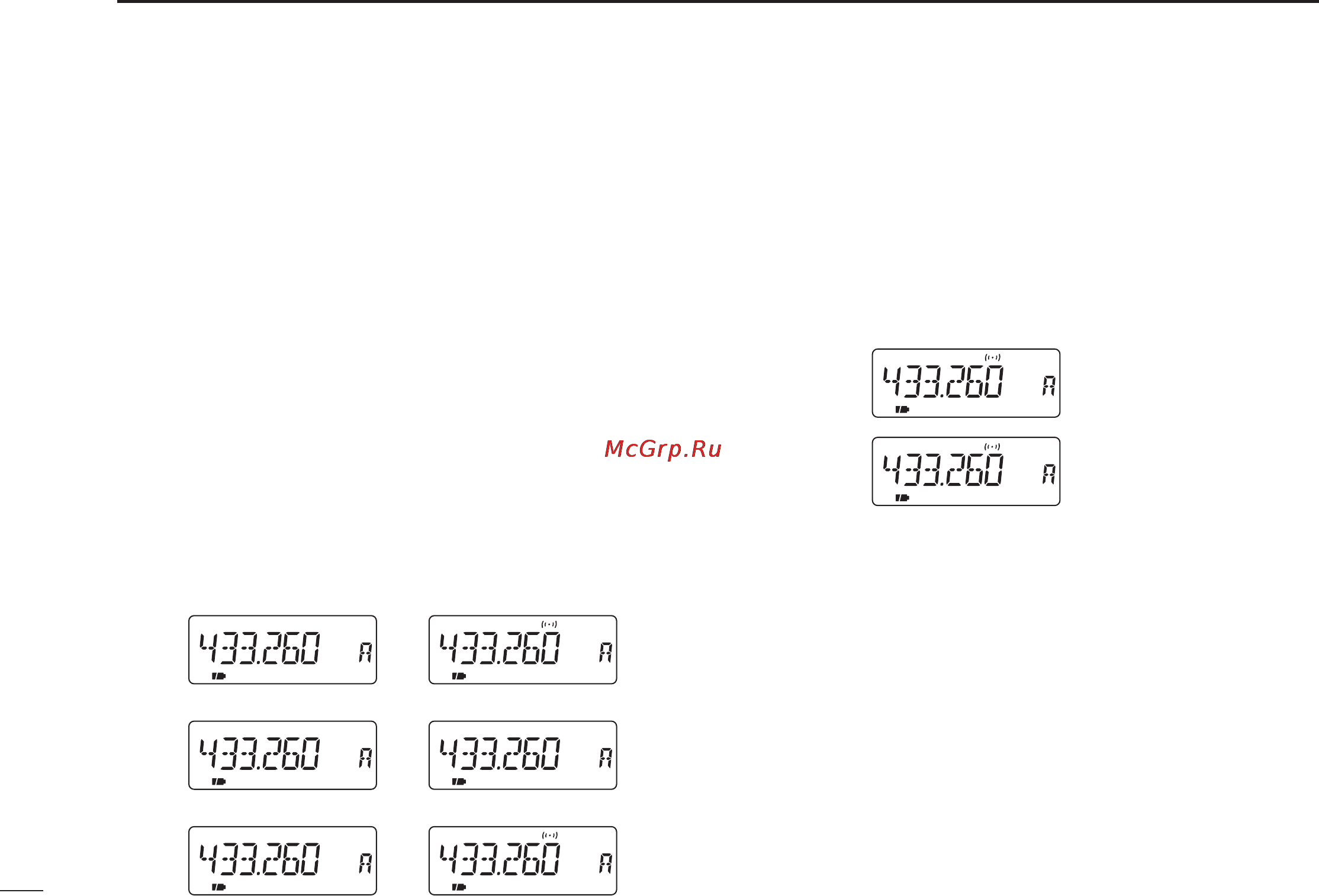

FM DTCS SKIPP
FM SQL SKIPTP
Pocket beep
by CTCSS dode
Pocket beep
by DTCS code
FM SKIPP
FM SKIPTP
FM SQL SKIPTP
FM SQL SKIPTP
FM DTCS SKIPP
FM DTCS SKIPP
No tone operation
Subaudible tone encoder
Tone squelch
Pocket beep
DTCS beep
DTCS squelch
