58
8
SET MODE

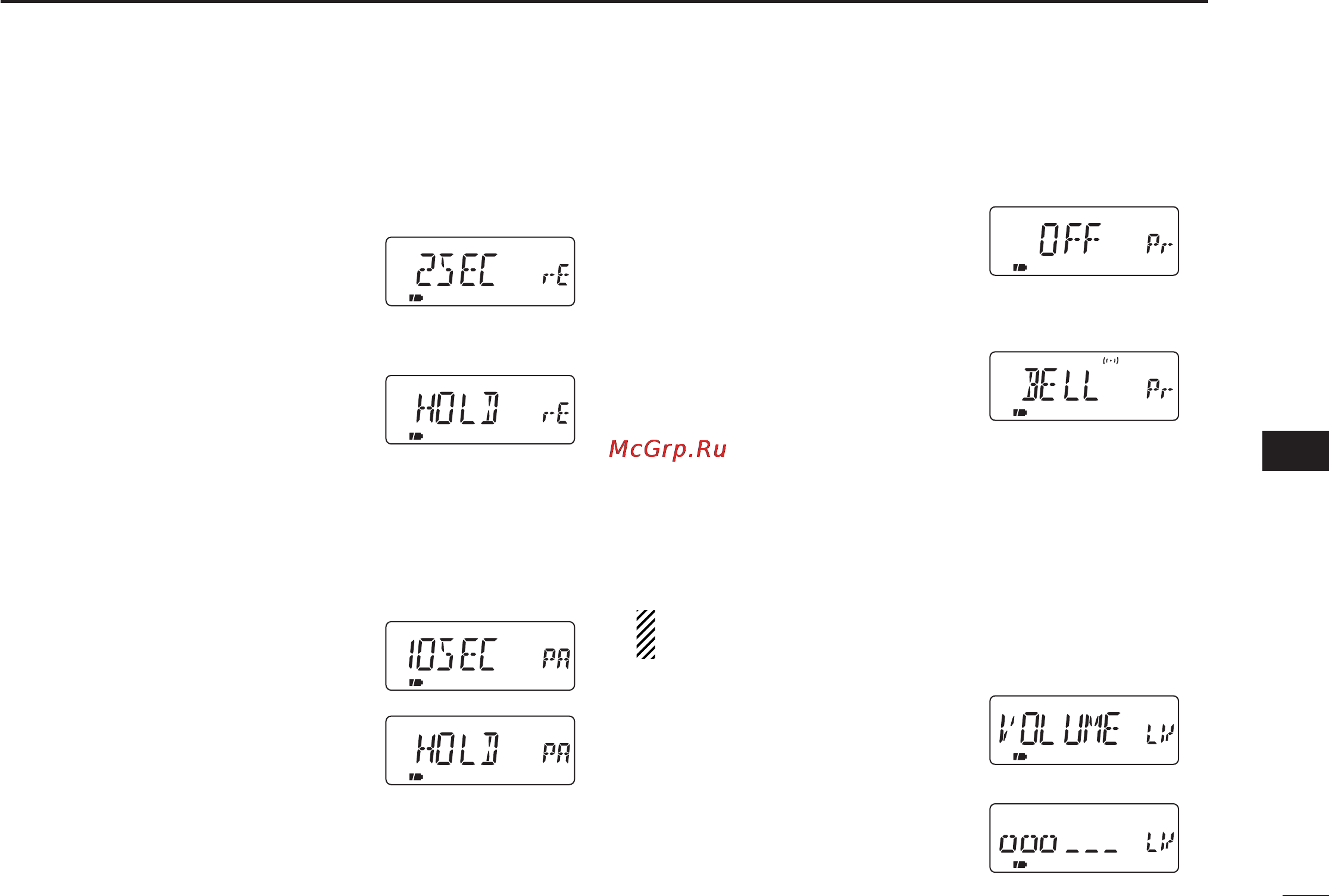

• Scan resume time (RESUME)
Selects the scan resume time of a paused frequency after the
received signal disappears.
• 0 Scan resumes when a received
signal disappears.
• 1–5 Scan pauses 1–5 sec. after a
received signal disappears.
(default: 2 sec.)
• Hold Scan pauses on a received sig-
nal even if it disappears. Rotate
the tuning dial to resume manu-
ally.
• Scan pause timer (PAUSE)
Selects the scan pause time. When receiving signals, the
scan pauses according to the scan pause time.
• 2–20 Scan pauses for 2–20 sec. on
a received signal in 2 sec.
steps. (default: 10 sec.)
• Hold Scan pauses on a received
signal until it disappears. Ro-
tate the tuning dial to resume
manually.
• Priority watch (PRIO)
Activates priority watch or priority watch with alert (BELL).
• OFF The priority watch is
turned OFF. (default)
• ON The transceiver checks
the memory channel fre-
quency every 5 sec.
• BELL The transceiver checks
the memory channel fre-
quency every 5 sec. You
can be alerted with beeps
and a blinking “S”.
• Beep tone level (BEEP LV)
Adjusts the confirmation beep output level to the desired level
within 32 levels or to the related level with volume.
The confirmation beep (next item) must be turned on to
have a beep tone.
• VOLUME The beep tone volume
level is linked with the
receive volume level.
(default)
• --- - - - The beep tone volume
ooo ooo level can be set in 32
steps.
ii
SET MODE
