OTHER FUNCTIONS
■ Clearing a DTMF memory
An unwanted DTMF memory can be cleared (erased).
q Push [• DTMF.M] for 1 sec. to enter DTMF memory mode.
w Rotate [DIAL] to select the desired DTMF memory chan-
nel to be cleared.
e Push [• DTMF.M] for 1 sec. to enter programming mode
and clear the selected DTMF memory channel.
• The DTMF memory channel is cleared.
r Push [SQL] or [PTT] to exit programming mode.
■ Confirming a DTMF memory
The DTMF memory can be confirmed with a DTMF tone.
q Push [• DTMF.M] for 1 sec. to enter DTMF memory mode.
w Rotate [DIAL] to select the desired DTMF memory chan-
nel.
e Push [SQL] to confirm the DTMF memory contents.
• The display returns to frequency indication after confirmation.

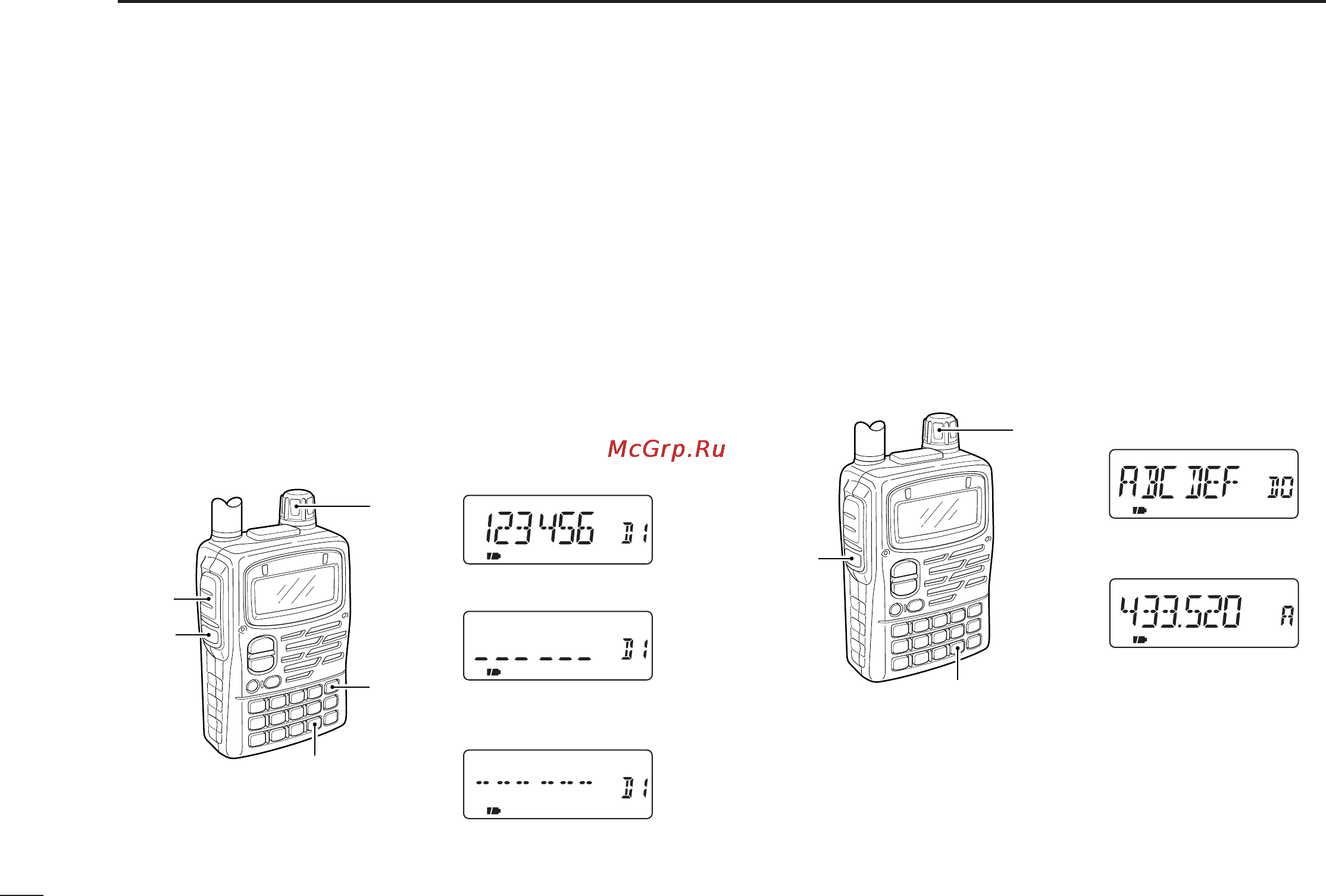

FM SKIPP
[SQL]
[• DTMF.M]
[DIAL]
DTMF code is displayed
6 digits at a time.
The display returns to
frequency indication.
[SQL]
[PTT]
[• DTMF.M]
[DIAL]
[VFO]
Select DTMF memory
to be cleared.
DTMF programming mode
The DTMF memory
becomes blank.
