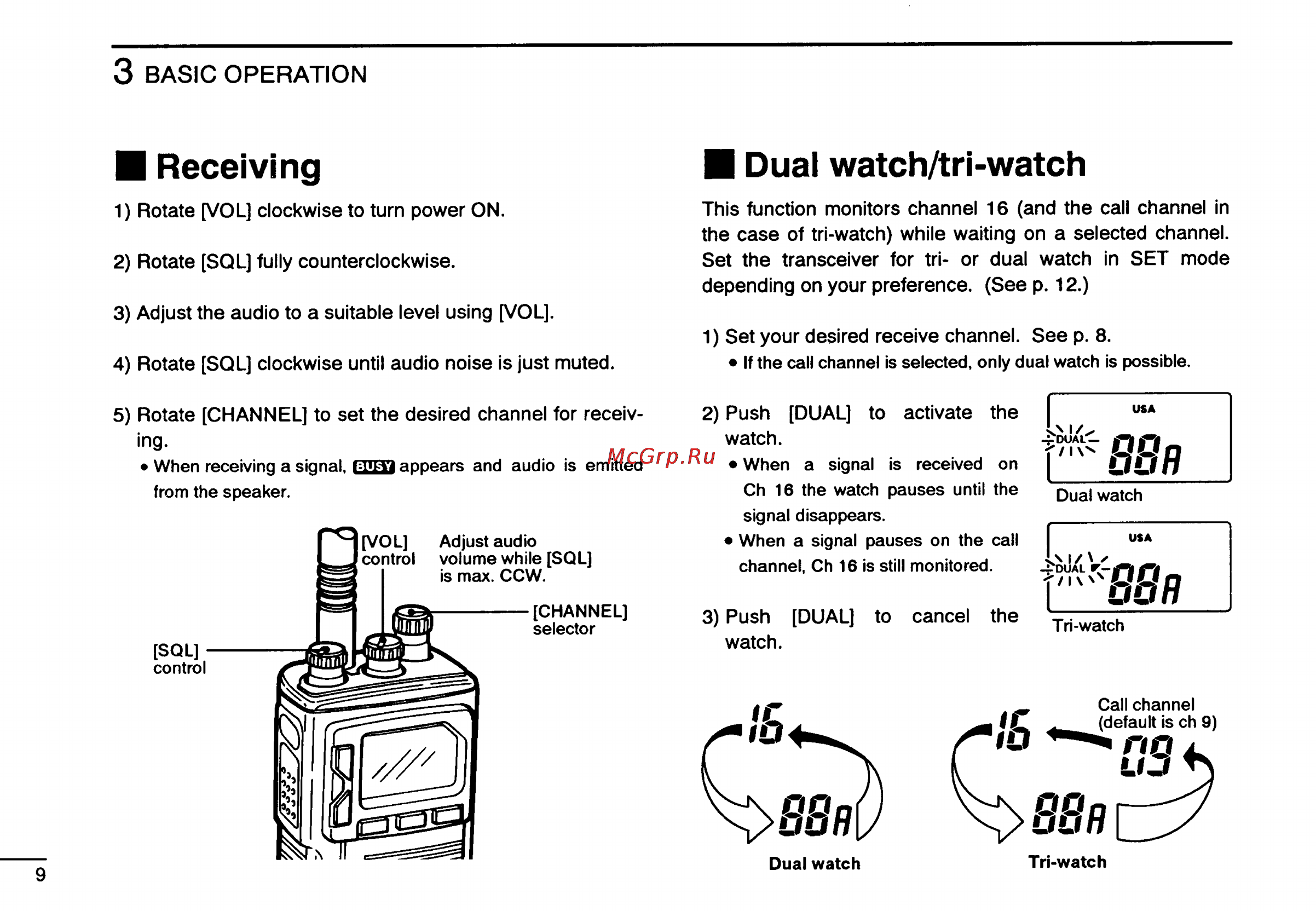

3 BASIC OPERATION Receiving Dual watch tri watch 1 Rotate VOL clockwise to turn power ON This function monitors channel 16 and the call channel in the case of tri watch while waiting on a selected channel Set the transceiver for tri or dual watch in SET mode depending on your preference See p 12 2 Rotate SQL fully counterclockwise 3 Adjust the audio to a suitable level using VOL 1 Set your desired receive channel See p 8 4 Rotate SQL clockwise until audio noise is just muted If the call channel is selected only dual watch is possible 5 Rotate CHANNEL to set the desired channel for receiv ing 2 Push DUAL to activate the watch When receiving a signal appears and audio is emitted from the speaker When a signal is received on Ch 16 the watch pauses until the signal disappears When a signal pauses on the call channel Ch 16 is still monitored 3 Push DUAL to cancel the watch 9 Dual watch USA 88 Dual watch Tri watch Tri watch я
