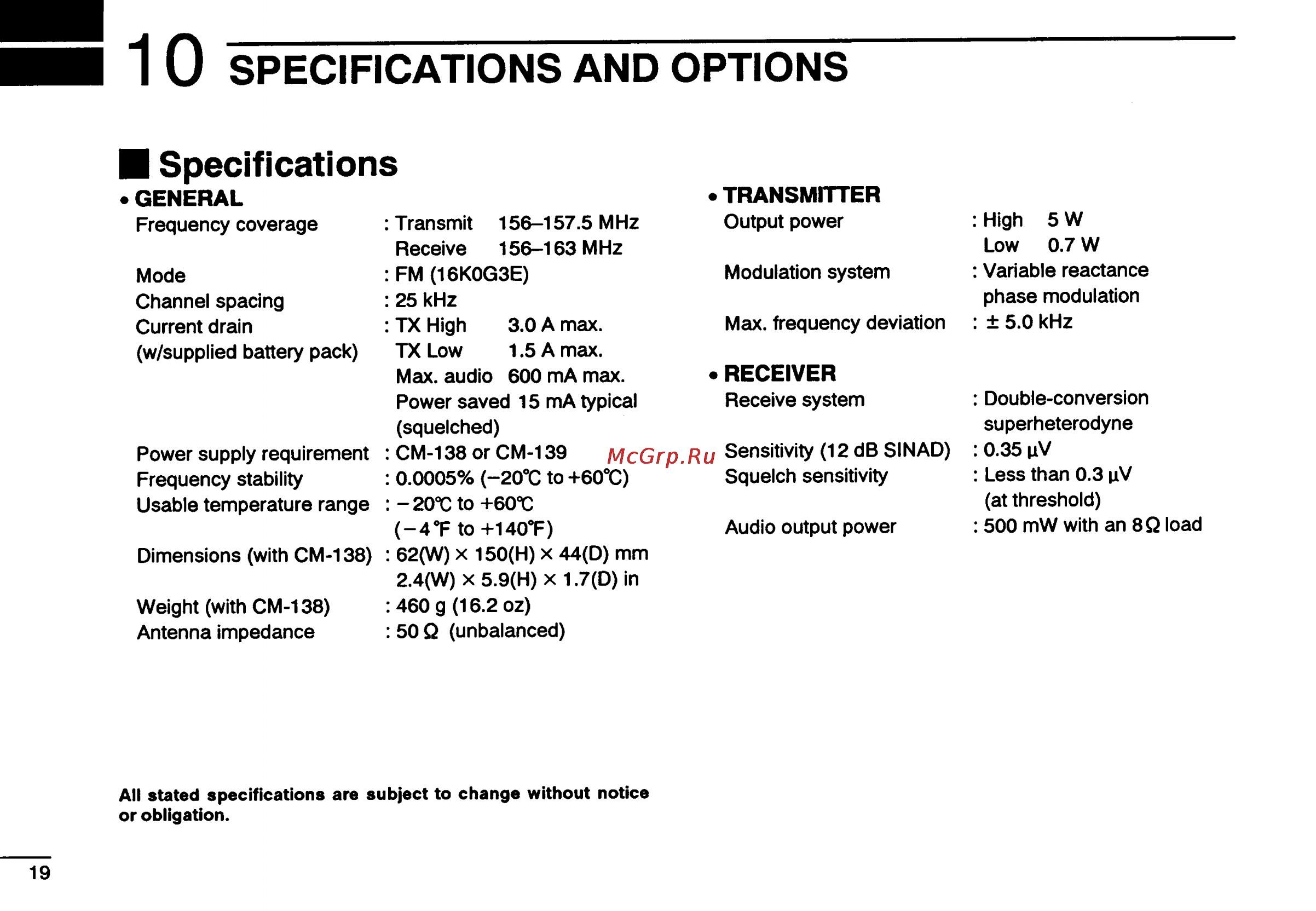

i 1 0 SPECIFICATIONS AND OPTIONS Specifications GENERAL Transmit 156 157 5 MHz 156 163 MHz Receive FM 16K0G3E Mode 25 kHz Channel spacing 3 0 A max TX High Current drain 1 5 A max TX Low w supplied battery pack Max audio 600 mA max Power saved 15 mA typical squelched Power supply requirement CM 138 or CM 139 Frequency stability 0 0005 20 C to 60 C Usable temperature range 20 to 60XJ 4T to 14O F Dimensions with CM 138 62 W x 150 H x 44 D mm 2 4 W x 5 9 H x 1 7 D in Weight with CM 138 460 g 16 2 oz Antenna impedance 50 Q unbalanced Frequency coverage All stated specifications are subject to change without notice or obligation 19 TRANSMITTER Output power Modulation system Max frequency deviation High 5 W Low 0 7 W Variable reactance phase modulation 5 0 kHz RECEIVER Receive system Sensitivity 12 dB SINAD Squelch sensitivity Audio output power Double conversion superheterodyne 0 35 pV Less than 0 3 nV at threshold 500 mW with an 8Q load
