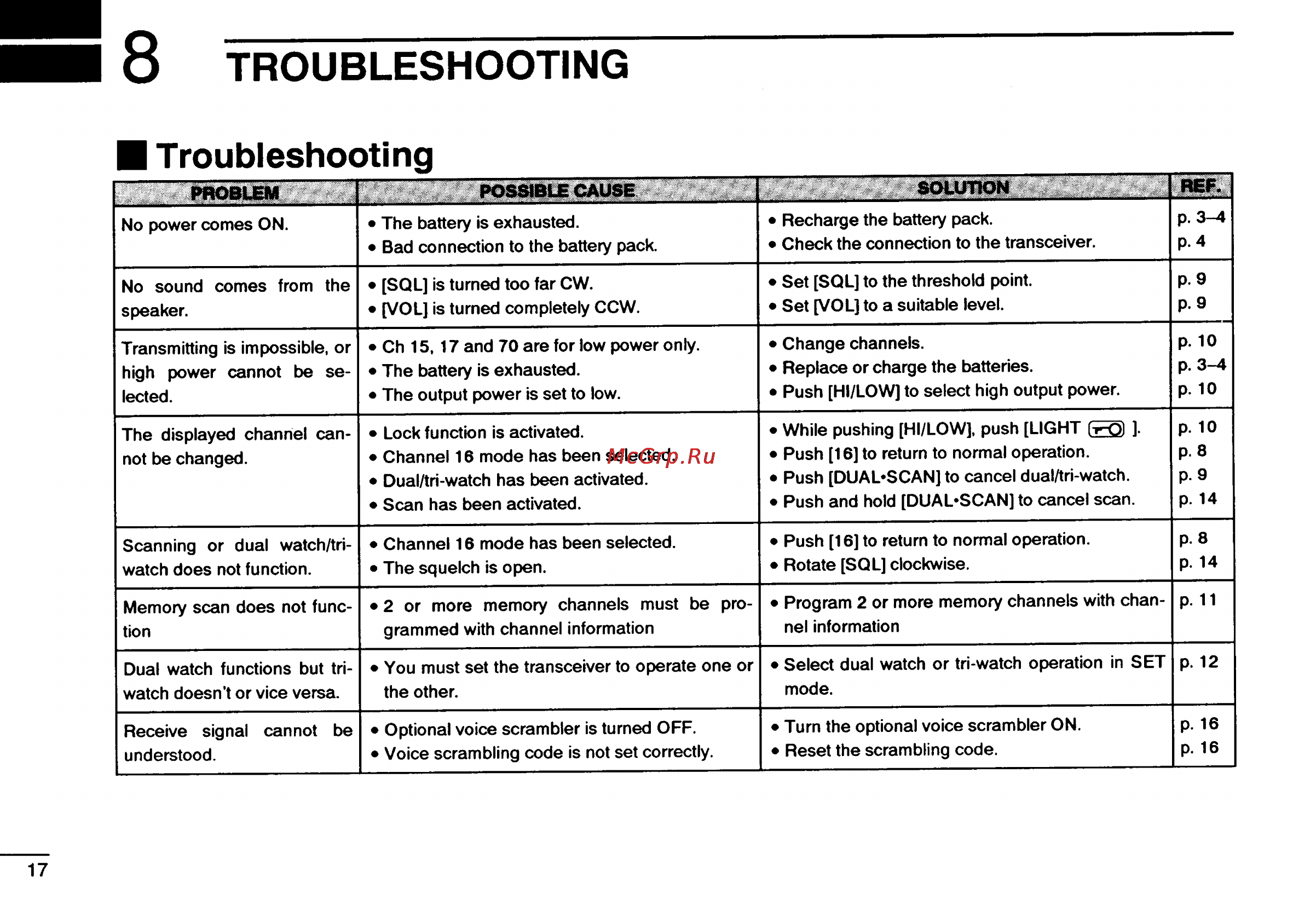

1 8 TROUBLESHOOTING Troubleshooting ___________________________ _______ _ Z 17 No power comes ON The battery is exhausted Bad connection to the battery pack Recharge the battery pack Check the connection to the transceiver p 3 4 p 4 No sound comes from the speaker SQL is turned too far CW VOL is turned completely CCW Set SQL to the threshold point Set VOL to a suitable level p 9 pa Transmitting is impossible or high power cannot be selected Ch 15 17 and 70 are for low power only The battery is exhausted The output power is set to low Change channels Replace or charge the batteries Push HI LOW to select high output power p 10 p 3 4 p 10 The displayed channel can not be changed Lock function is activated Channel 16 mode has been selected Dual tri watch has been activated Scan has been activated While pushing HI LOW push LIGHT r Q Push 16 to return to normal operation Push DUAL SCAN to cancel dual tri watch Push and hold DUAL SCAN to cancel scan p 10 p 8 p 9 p 14 Scanning or dual watch triwatch does not function Channel 16 mode has been selected The squelch is open Push 16 to return to normal operation Rotate SQL clockwise p 8 p 14 Memory scan does not func tion 2 or more memory channels must be pro grammed with channel information Program 2 or more memory channels with chan nel information p 11 Dual watch functions but tri watch doesn t or vice versa You must set the transceiver to operate one or the other Select dual watch or tri watch operation in SET mode P 12 Receive signal cannot be understood Optional voice scrambler is turned OFF Voice scrambling code is not set correctly Turn the optional voice scrambler ON Reset the scrambling code p 16 p 16
