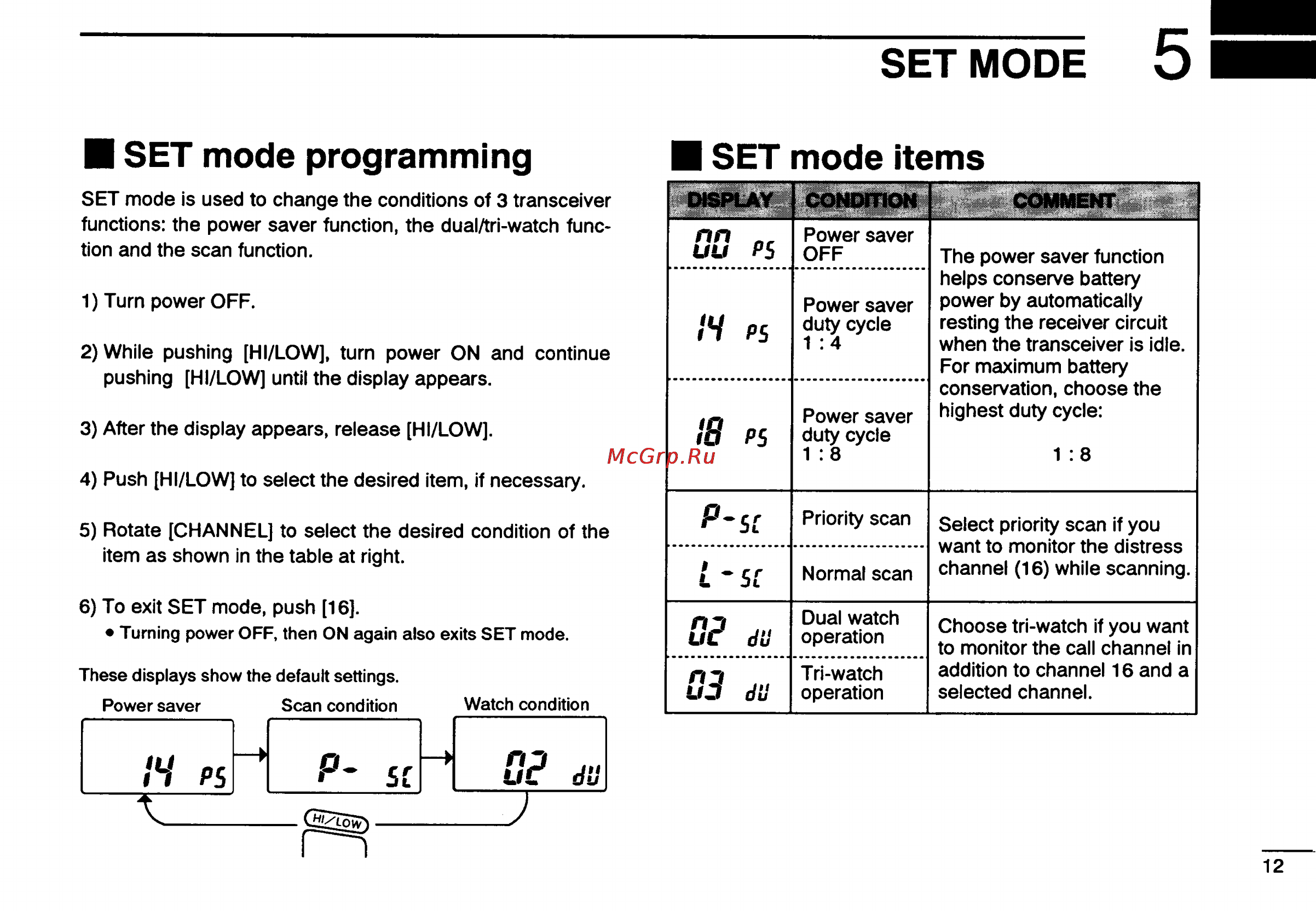

SET MODE 5 SET mode programming SET mode is used to change the conditions of 3 transceiver functions the power saver function the dual tri watch func tion and the scan function SET mode items DISPLAY SB PS Power saver OFF N PS Power saver duty cycle 1 4 IB ps Power saver duty cycle 1 8 P SC Priority scan L st Normal scan 1 Turn power OFF 2 While pushing HI LOW turn power ON and continue pushing HI LOW until the display appears 3 After the display appears release HI LOW CONDmON CCNMMBMT The power saver function helps conserve battery power by automatically resting the receiver circuit when the transceiver is idle For maximum battery conservation choose the highest duty cycle 1 8 4 Push HI LOW to select the desired item if necessary 5 Rotate CHANNEL to select the desired condition of the item as shown in the table at right 6 To exit SET mode push 16 Turning power OFF then ON again also exits SET mode These displays show the default settings Power saver Scan condition Watch condition BB du 03 M Dual watch operation Tri watch operation Select priority scan if you want to monitor the distress channel 16 while scanning Choose tri watch if you want to monitor the call channel in addition to channel 16 and a selected channel 12
