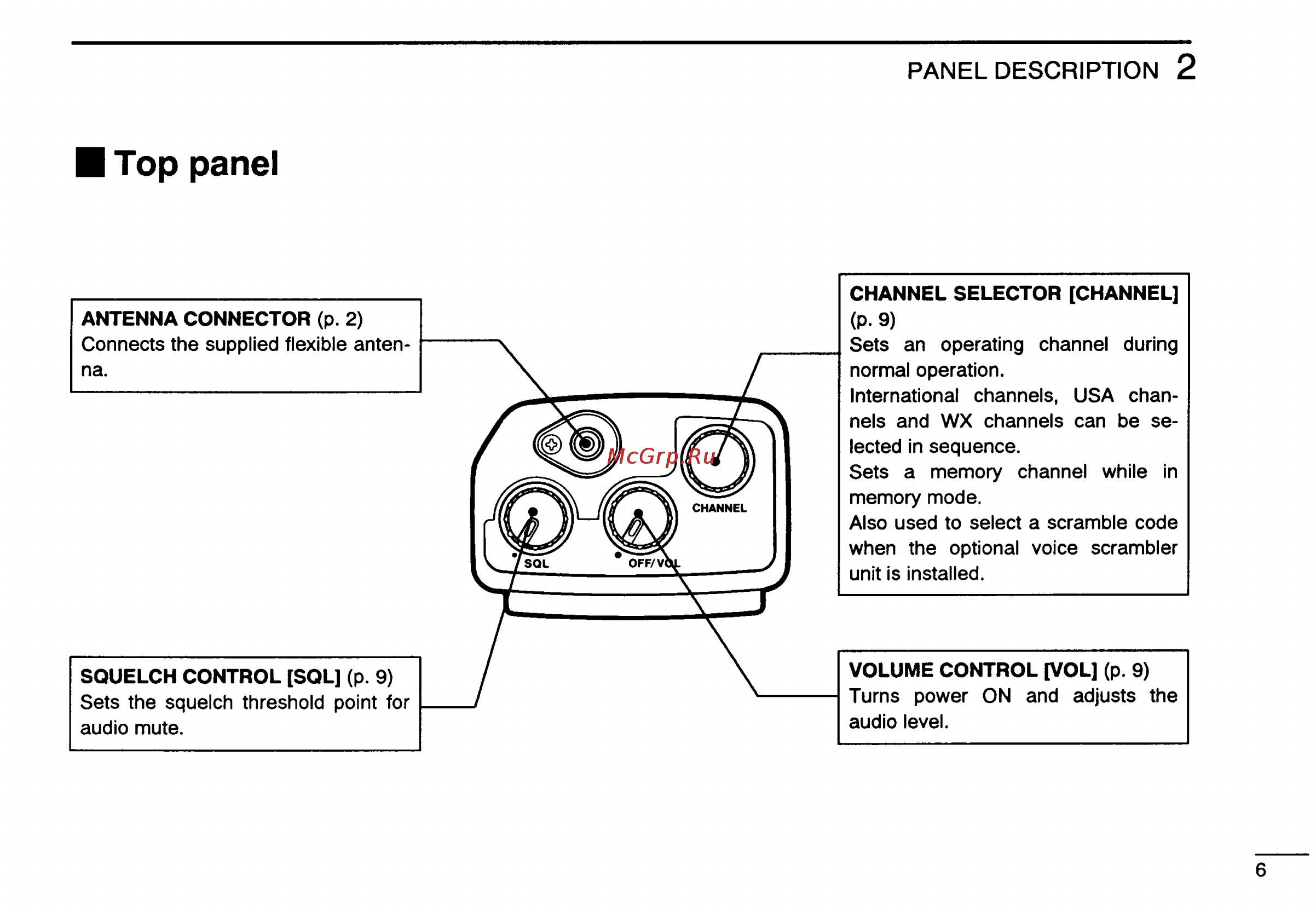

PANEL DESCRIPTION 2 Top panel ANTENNA CONNECTOR p 2 Connects the supplied flexible anten na SQUELCH CONTROL SQL p 9 Sets the squelch threshold point for audio mute CHANNEL SELECTOR CHANNEL P 9 Sets an operating channel during normal operation International channels USA chan nels and WX channels can be se lected in sequence Sets a memory channel while in memory mode Also used to select a scramble code when the optional voice scrambler unit is installed VOLUME CONTROL VOL p 9 Turns power ON and adjusts the audio level 6
