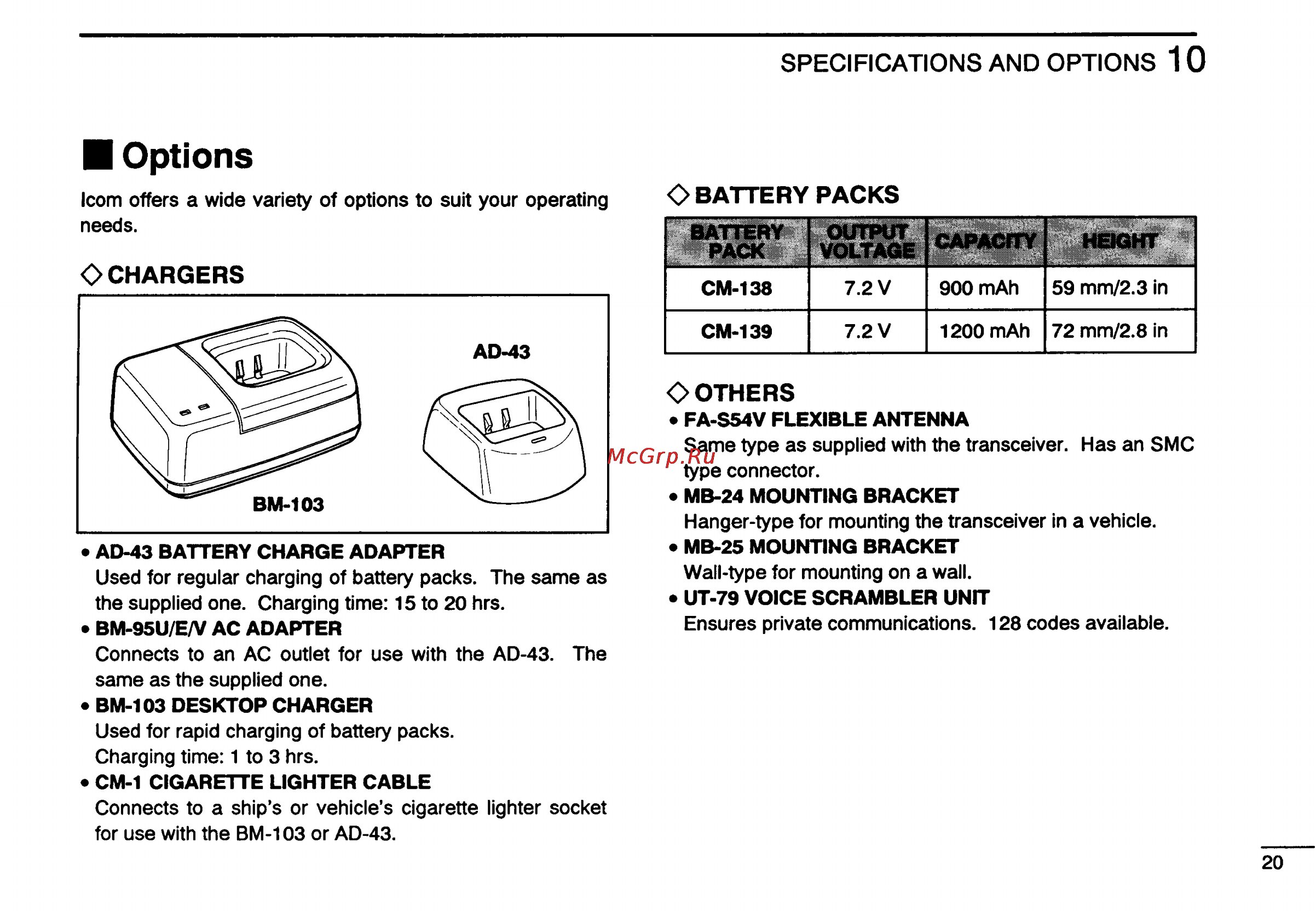

SPECIFICATIONS AND OPTIONS 10 Options loom offers a wide variety of options to suit your operating needs OCHARGERS O BATTERY PACKS IGifil PACK MMI OUTPUT VOLTAGE CAPACITY MQGHT CM 138 7 2 V 900 mAh 59 mm 2 3 in CM 139 7 2 V 1200 mAh 72 mm 2 8 In OOTHERS AD 43 BATTERY CHARGE ADAPTER Used for regular charging of battery packs The same as the supplied one Charging time 15 to 20 hrs BM 95U E V AC ADAPTER Connects to an AC outlet for use with the AD 43 The same as the supplied one BM 103 DESKTOP CHARGER Used for rapid charging of battery packs Charging time 1 to 3 hrs CM 1 CIGARETTE LIGHTER CABLE Connects to a ship s or vehicle s cigarette lighter socket for use with the BM 103 or AD 43 FA S54V FLEXIBLE ANTENNA Same type as supplied with the transceiver Has an SMC type connector MB 24 MOUNTING BRACKET Hanger type for mounting the transceiver in a vehicle MB 25 MOUNTING BRACKET Wall type for mounting on a wall UT 79 VOICE SCRAMBLER UNIT Ensures private communications 128 codes available 20
