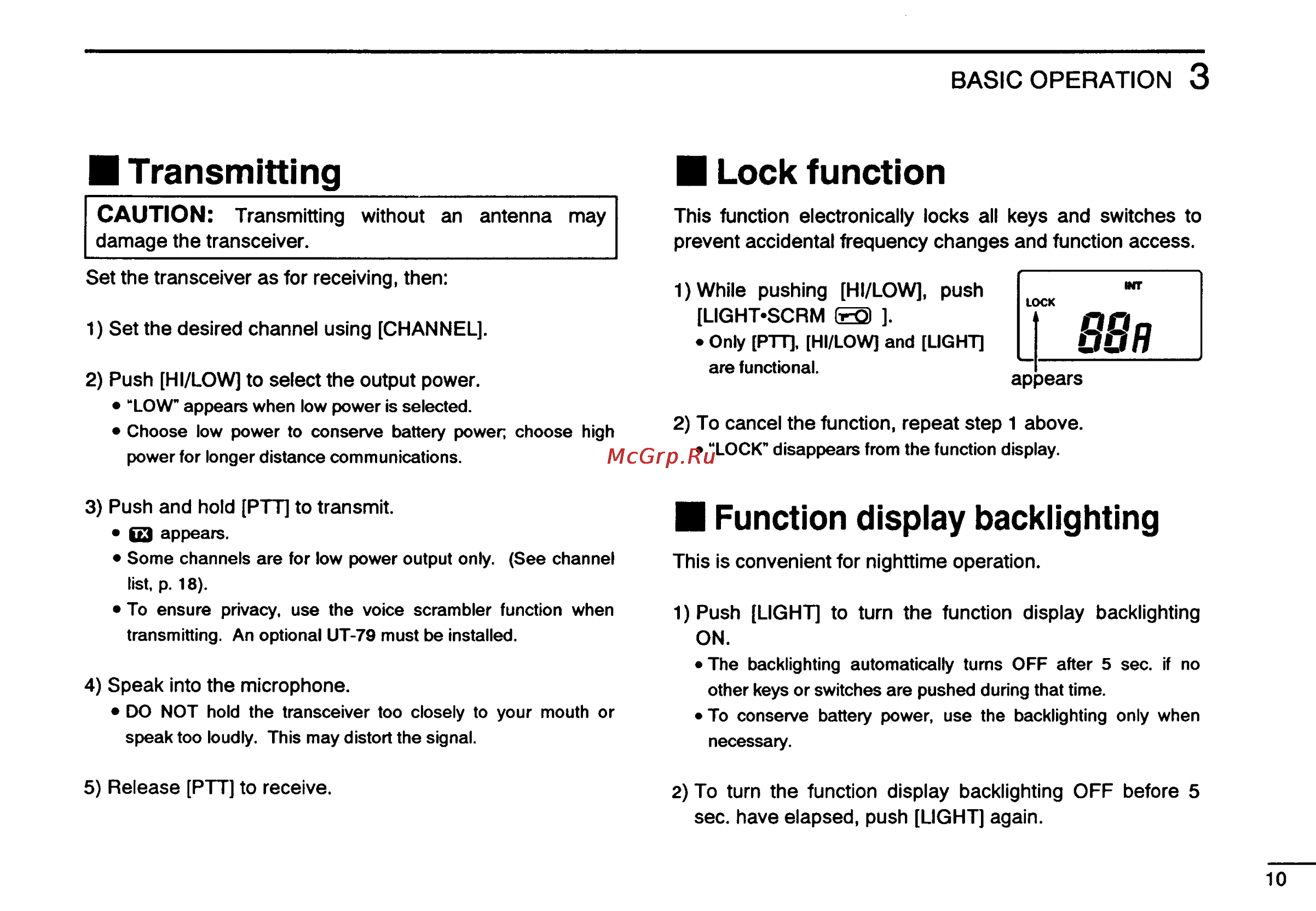

BASIC OPERATION 3 M Transmitting________________ CAUTION Transmitting without an antenna may damage the transceiver Set the transceiver as for receiving then 1 Set the desired channel using CHANNEL 2 Push HI LOW to select the output power LOW appears when low power is selected Choose low power to conserve battery power choose high power for longer distance communications 3 Push and hold PTT to transmit Q3 appears Some channels are for low power output only See channel list p 18 To ensure privacy use the voice scrambler function when transmitting An optional UT 79 must be installed 4 Speak into the microphone DO NOT hold the transceiver too closely to your mouth or speak too loudly This may distort the signal 5 Release PTT to receive Lock function This function electronically locks all keys and switches to prevent accidental frequency changes and function access 1 While pushing HI LOW push LIGHT SCRM Only PTT HI LOW and LIGHT are functional appears 2 To cancel the function repeat step 1 above LOCK disappears from the function display Function display backlighting This is convenient for nighttime operation 1 Push LIGHT to turn the function display backlighting ON The backlighting automatically turns OFF after 5 sec if no other keys or switches are pushed during that time To conserve battery power use the backlighting only when necessary 2 To turn the function display backlighting OFF before 5 sec have elapsed push LIGHT again 10
