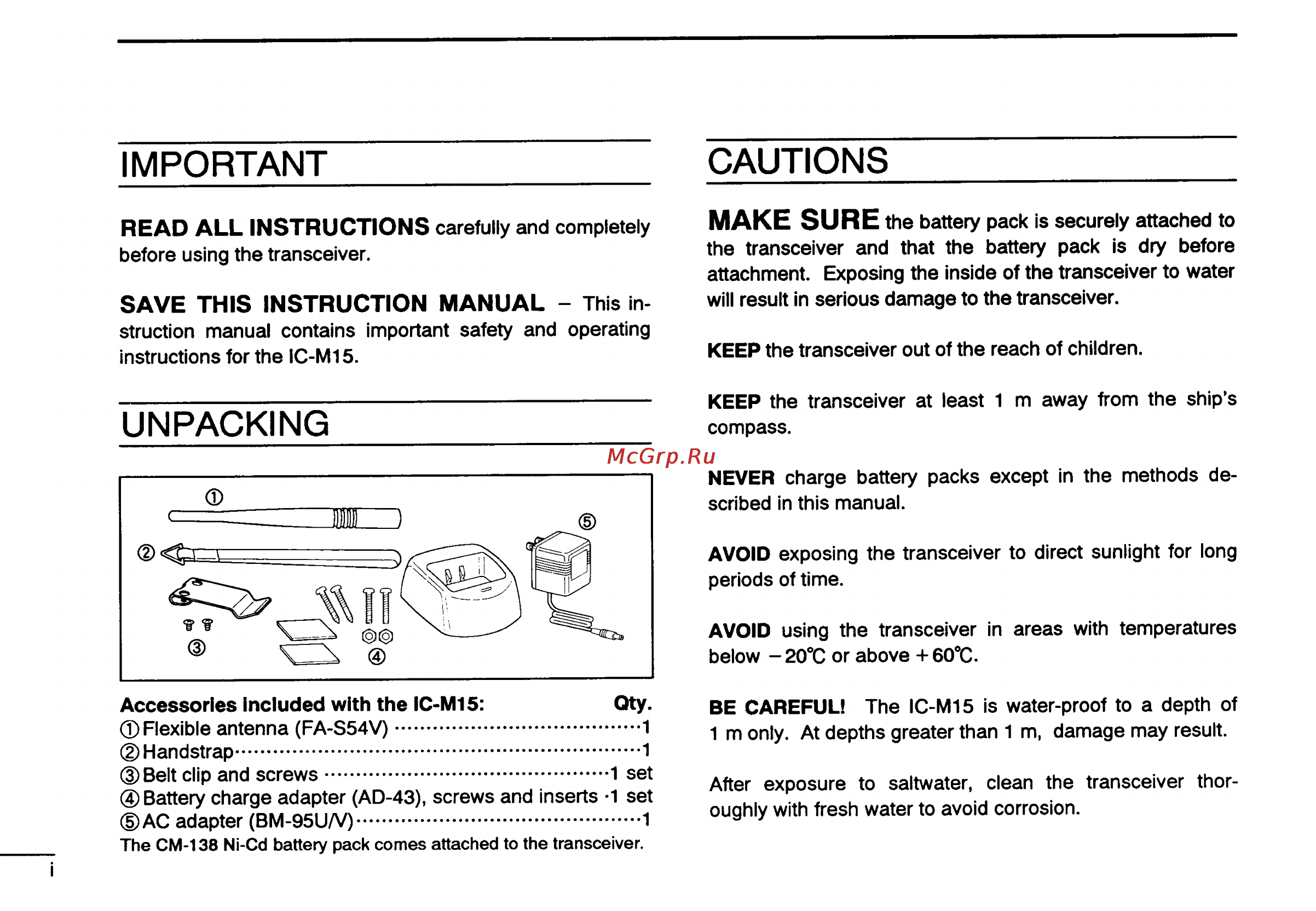

IMPORTANT CAUTIONS READ ALL INSTRUCTIONS carefully and completely MAKE SURE the battery pack is securely attached to the transceiver and that the battery pack is dry before attachment Exposing the inside of the transceiver to water will result in serious damage to the transceiver before using the transceiver SAVE THIS INSTRUCTION MANUAL This in struction manual contains important safety and operating instructions for the IC M15 UNPACKING KEEP the transceiver out of the reach of children KEEP the transceiver at least 1 m away from the ship s compass NEVER charge battery packs except in the methods de scribed in this manual AVOID exposing the transceiver to direct sunlight for long periods of time AVOID using the transceiver in areas with temperatures below 20 C or above 60 C Accessories Included with the IC M15 Oty Flexible antenna FA S54V 1 D Handstrap 1 Belt clip and screws 1 set Battery charge adapter AD 43 screws and inserts 1 set AC adapter BM 95U V 1 The CM 138 Ni Cd battery pack comes attached to the transceiver BE CAREFUL The IC M15 is water proof to a depth of 1 m only At depths greater than 1 m damage may result After exposure to saltwater clean the transceiver thor oughly with fresh water to avoid corrosion
