![Icom IC-M15 [6/24] Battery life](/img/pdf.png)
Icom IC-M15 [6/24] Battery life
![Icom IC-M15 [6/24] Battery life](/views2/1074623/page6/bg6.png)
Содержание
- Ic m15 1
- Icom inc 1
- Important cautions 2
- Make sure 2
- Read all instructions 2
- Save this instruction manual 2
- Unpacking 2
- Table of contents 3
- I 1 pre operation 4
- Operating rules 4
- Priorities 4
- Privacy 4
- Radio licenses 4
- Accessory attachment 5
- O belt clip 5
- O flexible antenna 5
- O handstrap 5
- Pre operation 1 5
- Battery life 6
- Battery pack removal 6
- Cautions 6
- Charging notes 6
- Pre operation 6
- Charging time 15 to 20 hrs approx charging time 1 to 2 hrs approx 7
- Insert the transceiver and attached bat tery pack or a battery pack only into the charging slot of the bm 103 7
- Insert the transceiver and attached battery pack into the charging slot of the ad 43 7
- M battery charging________ 7
- Pre operation 1 7
- Using an optional bm 103 7
- Using the supplied charge adapter 7
- Front and side panels 8
- Panel description 8
- Panel description 2 9
- Top panel 9
- Basic operation 11
- Basic operation 12
- Dual watch tri watch 12
- Receiving 12
- Basic operation 3 13
- Caution 13
- Function display backlighting 13
- Lock function 13
- M transmitting________________ 13
- Call channel 14
- Memory channels 14
- Ml 4 memory and call channel programming 14
- Set mode 5 15
- Set mode items 15
- Set mode programming 15
- Normal scan 16
- Priority scan 16
- Scan functions 16
- Scan types 16
- Installation 18
- Optional voice scrambler unit 18
- Activating the scrambler 19
- Oon oon 19
- Programming codes 19
- 1 8 troubleshooting 20
- Troubleshooting ___________________________ _______ _ 20
- Ar rwcww 21
- Channel list 9 21
- General 22
- I 1 0 specifications and options 22
- Receiver 22
- Specifications 22
- Transmitter 22
- Igifil 23
- O battery packs 23
- O others 23
- Ochargers 23
- Options 23
- Output voltage capacity mqght 23
- Specifications and options 10 23
Похожие устройства
- Liebherr CTsl 2451-20 Инструкция по эксплуатации
- Icom IC-M45A Инструкция по эксплуатации
- Bosch KGV36VW20R Инструкция по эксплуатации
- Icom IC-M56 Инструкция по эксплуатации
- Hotpoint-Ariston ECF 2014 L Инструкция по эксплуатации
- Icom IC-M304 Инструкция по эксплуатации
- Siemens KG36VXW20R Инструкция по эксплуатации
- Jura Impressa XS90 Инструкция по эксплуатации
- Icom IC-M700PRO Инструкция по эксплуатации
- Bosch KGV36VL20R Инструкция по эксплуатации
- Asko HI1621G EU INDUCTION HOB Инструкция по эксплуатации
- Icom IC-M710 Инструкция по эксплуатации
- Bosch KGV39VW20R Инструкция по эксплуатации
- Asko HI1641S EU INDUCTION HOB Инструкция по эксплуатации
- Icom IC-M59 Инструкция по эксплуатации
- Bosch KGV39VL20R Инструкция по эксплуатации
- Asko HI1642S EU INDUCTION Инструкция по эксплуатации
- Icom IC-M80 Инструкция по эксплуатации
- Asko HI1661S EU INDUCTION HOB Инструкция по эксплуатации
- Bosch KGE36AL20R Инструкция по эксплуатации

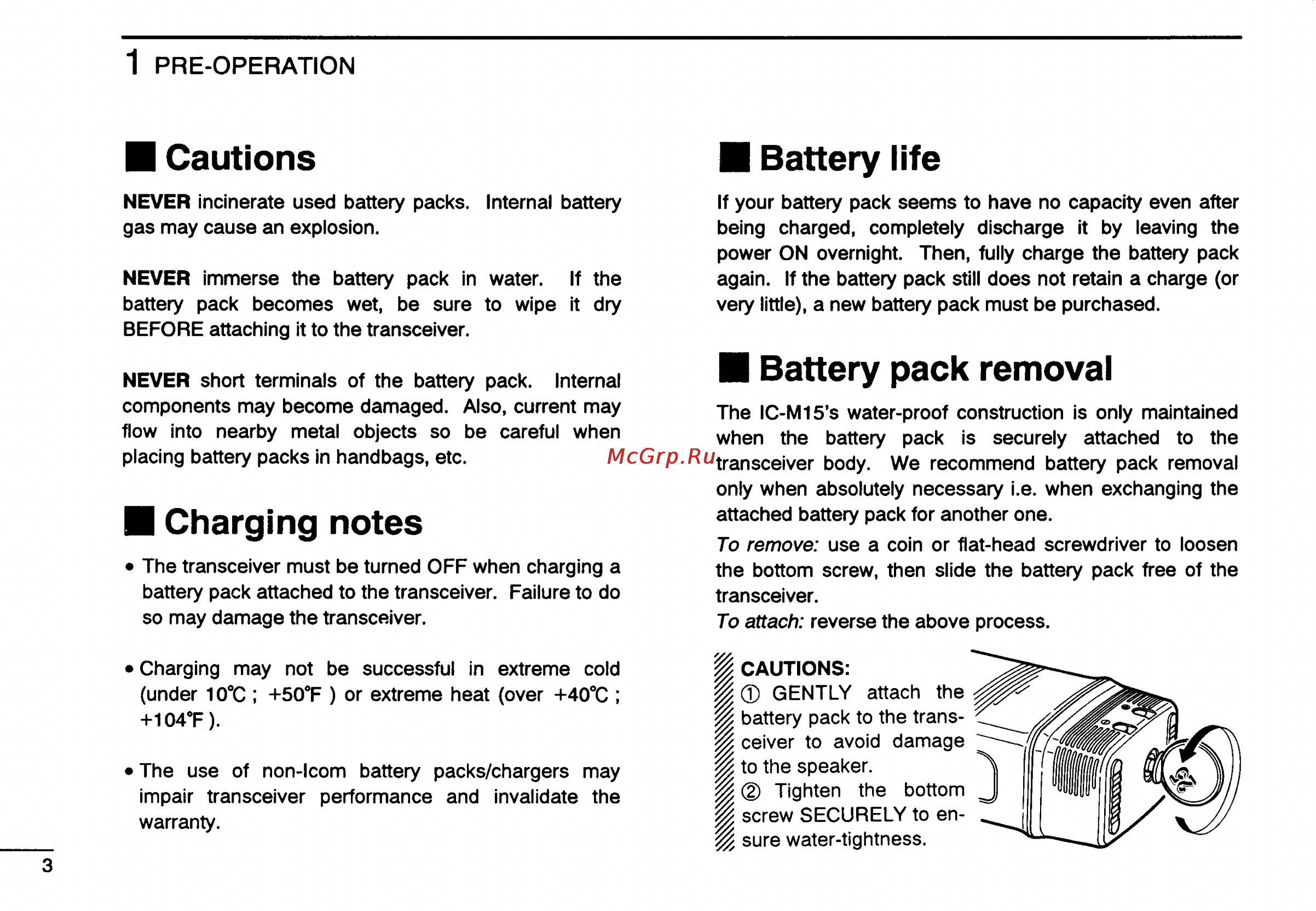

1 PRE OPERATION Cautions Battery life NEVER incinerate used battery packs Internal battery gas may cause an explosion If your battery pack seems to have no capacity even after being charged completely discharge it by leaving the power ON overnight Then fully charge the battery pack again If the battery pack still does not retain a charge or very little a new battery pack must be purchased NEVER immerse the battery pack in water If the battery pack becomes wet be sure to wipe it dry BEFORE attaching it to the transceiver NEVER short terminals of the battery pack Internal components may become damaged Also current may flow into nearby metal objects so be careful when placing battery packs in handbags etc Charging notes The transceiver must be turned OFF when charging a battery pack attached to the transceiver Failure to do so may damage the transceiver Charging may not be successful in extreme cold under 10 C 50 F or extreme heat over 40 C 104T The use of non lcom battery packs chargers may impair transceiver performance and invalidate the warranty Battery pack removal The IC M15 s water proof construction is only maintained when the battery pack is securely attached to the transceiver body We recommend battery pack removal only when absolutely necessary i e when exchanging the attached battery pack for another one To remove use a coin or flat head screwdriver to loosen the bottom screw then slide the battery pack free of the transceiver To attach reverse the above process H CAUTIONS GENTLY attach the battery pack to the trans ceiver to avoid damage to the speaker X D Tighten the bottom J P screw SECURELY to ensure water tightness
