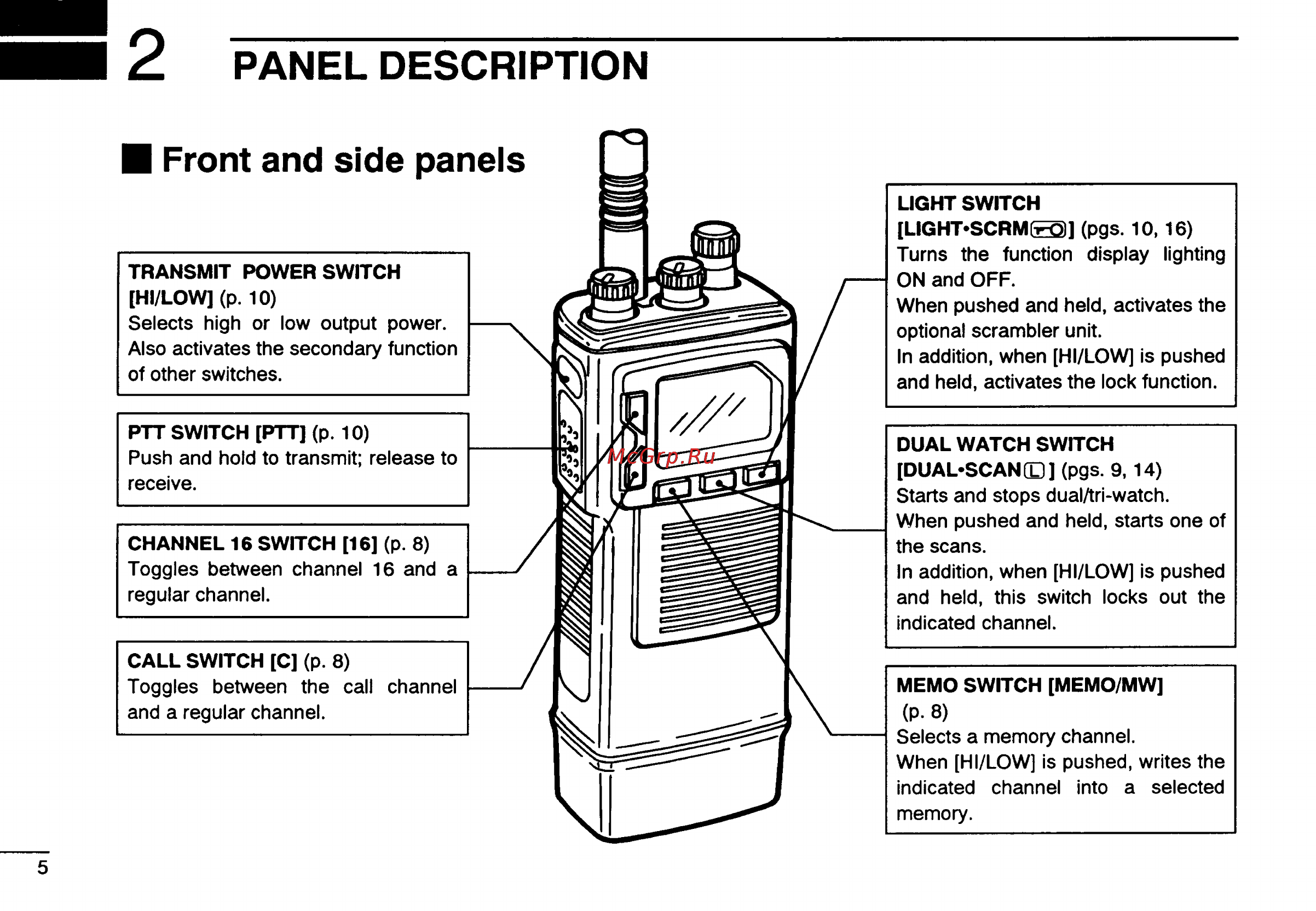

2 PANEL DESCRIPTION Front and side panels LIGHT SWITCH LIGHT SCRM pgs 10 16 Turns the function display lighting ON and OFF When pushed and held activates the optional scrambler unit In addition when HI LOW is pushed and held activates the lock function TRANSMIT POWER SWITCH HI LOW p 10 Selects high or low output power Also activates the secondary function of other switches PTT SWITCH PTT p 10 Push and hold to transmit release to receive CHANNEL 16 SWITCH 16 p 8 Toggles between channel 16 and a regular channel CALL SWITCH C p 8 Toggles between the call channel and a regular channel DUAL WATCH SWITCH DUAL SCAN CD J pgs 9 14 Starts and stops dual tri watch When pushed and held starts one of the scans In addition when HI LOW is pushed and held this switch locks out the indicated channel MEMO SWITCH MEMO MW P 8 Selects a memory channel When HI LOW is pushed writes the indicated channel into a selected memory
