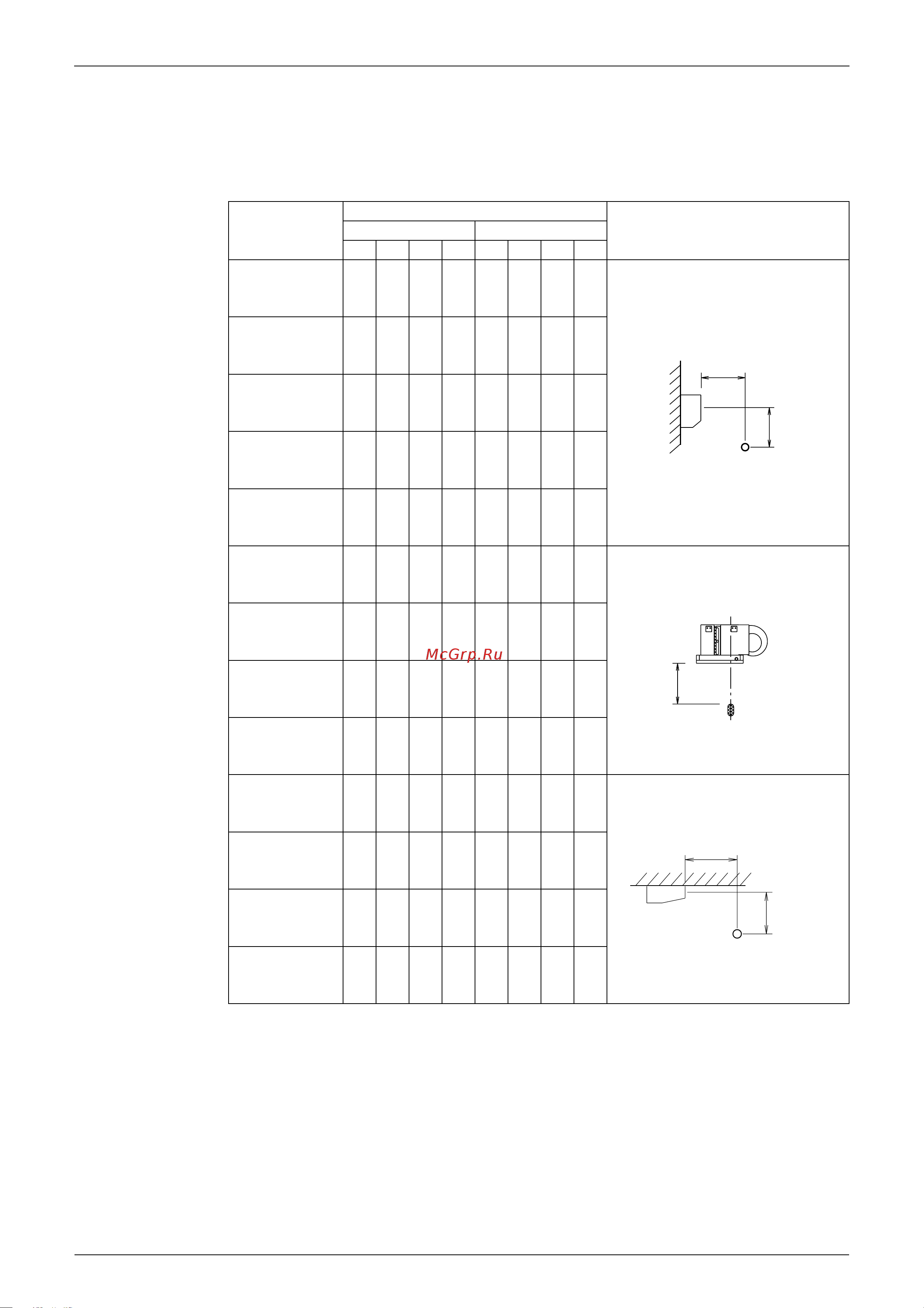

Sound Level ED12-321A
128 SUPER MULTI NX B-Series Heat Pump
10.Sound Level
10.1 Overall Sound Level
10.1.1 Indoor Units (dBA)
Model
50Hz 220~240V / 60Hz 220~230V
Measuring LocationCooling Heating
HMLSLHMLSL
FTXE25BVMA 3734302737333027
FTXE35BVMA 3835322938353128
FTXD50BVMA 4440353242383330
FTXD60BVMA 4541363344403532
FTXD71BVMA 4642373446423734
CDX25AVMA 3938363340383633
CDX35AVMA 3938363340383633
CDX50AVMA 4241393642403835
CDX60AVMA 4443413844424037
FLX25AVMA 3734312837343128
FLX35AVMA 3835322939363330
FLX50AVMA 4743393646413532
FLX60AVMA 4845413847423734
1m
0.8m
(R1759)
1.5m
Microphone
1m
0.8m
(R1002)
