Piping Diagrams ED12-321A
92 SUPER MULTI NX B-Series Heat Pump
6. Piping Diagrams
6.1 Indoor Units
6.1.1 Wall Mounted Type

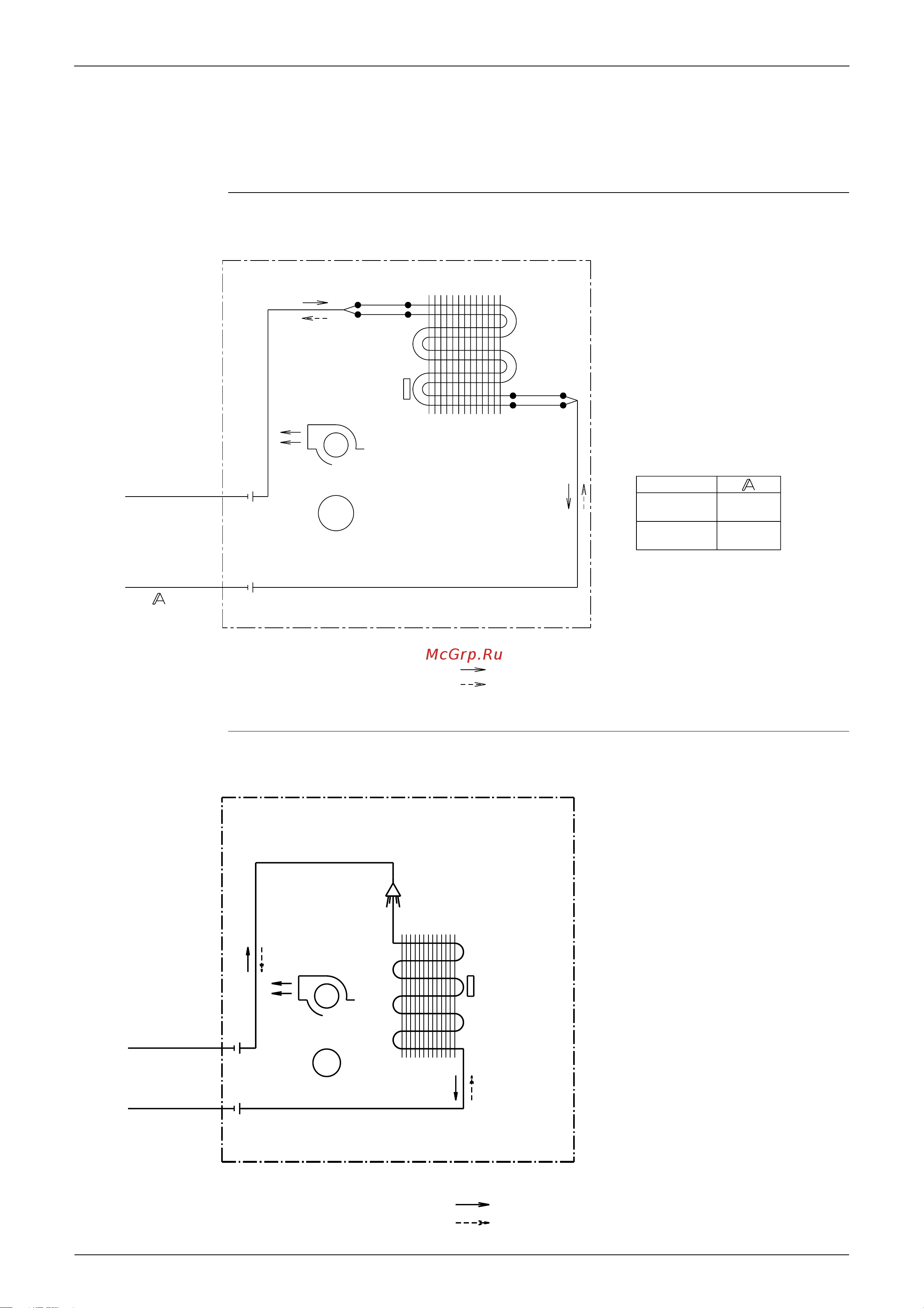

FTXE25BVMA / FTXE35BVMA
FTXD50BVMA
FIELD PIPING
FIELD PIPING
(
CuT
)
(
6.4CuT
)
7.9CuT
CROSS FLOW FAN
ON HEAT EXCH.
THERMISTOR
INDOOR UNIT
M
FAN MOTOR
6.4CuT
7.0CuT
9.5CuT
HEAT EXCHANGER
REFRIGERANT FLOW
HEATING
COOLING
6.4CuT
6.4CuT
C : 4D032969B
12.7
9.5
FTXE35--
FTXE25--
FIELD PIPING
FIELD PIPING
(
12.7CuT
)
(
6.4CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
REFRIGERANT FLOW
ON HEAT EXCH.
THERMISTOR
HEATING
COOLING
4D040081A
HEAT EXCHANGER
