Si18-201 Method of Field Set
Operating Test 219
Fan Speed Changeover when Thermostat is OFF
By setting to “Set Fan Speed,” you can switch the fan speed to the set fan speed when the
heating thermostat is OFF.
∗
Since there is concern about draft if using “fan speed up when thermostat is OFF,” you should
take the setup location into consideration.
Setting Table
Main/Sub Setting when Using 2 Remote Controllers
Set the switch on the remote controller’s PC board.
Control by 2 Remote Controllers (controlling 1 indoor unit with 2 remote controllers)
"
When using 2 remote controllers, one of either the control panel or the separate remote
controller must be set to “MAIN” and the other to “SUB”.
(MAIN/SUB CHANGEOVER)

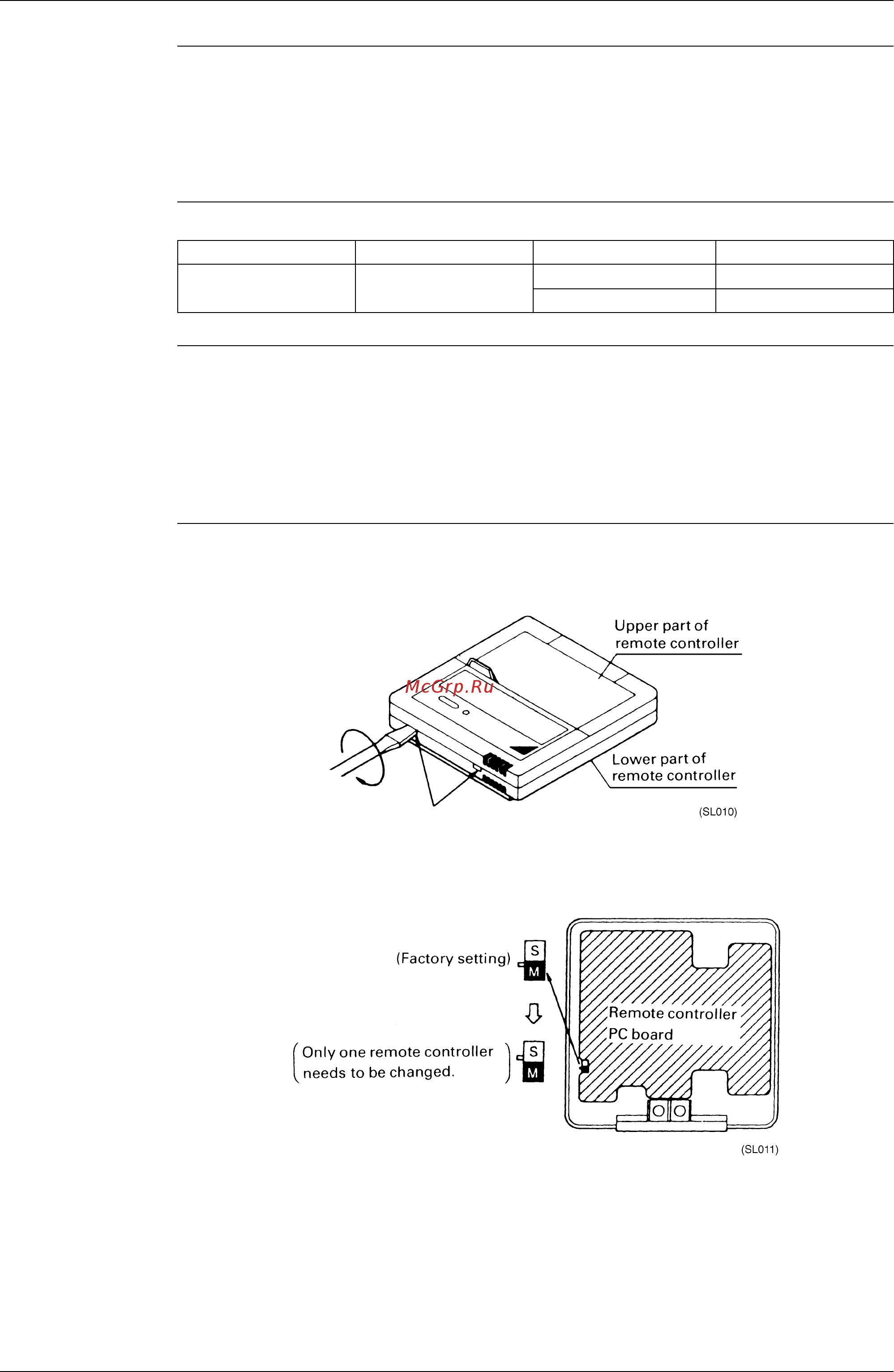

Procedure 1. Insert a “ - “ screwdriver into the recess between the upper and lower part of remote
controller and, working from the 2 positions, pry off the upper part. (The remote controller PC
board is attached to the upper part of remote controller.)
Insert the screwdriver here and gently work off the upper part of remote controller.
2. Turm the MAIN/SUB CHANGEOVER SWITCH on one of the two remote controller PC
boards to “S”. (Leave the switch of the other remote controller set to “M”.)
Mode No. First Code No. Second Code No. Setting
12(22) 3 01 LL Fan Speed
02 Set Fan Speed
