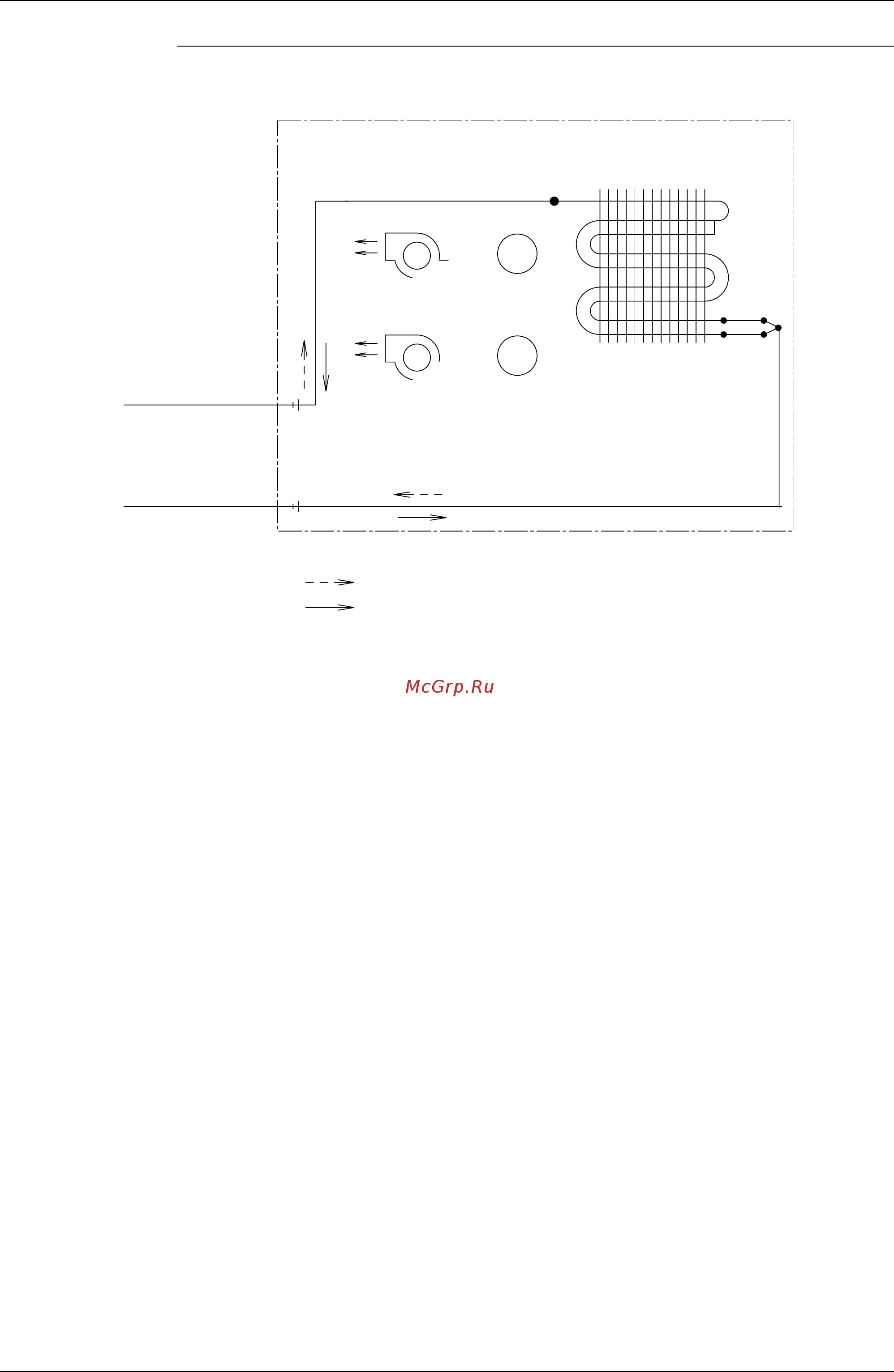

Si18-201 Piping Diagrams
Appendix 369
FVX25 / 35KZV1B
FVX
(
K
)
35 12.7CuT
FVX
(
K
)
25 9.5CuT
FIELD PIPING
FIELD PIPING
(
6.4CuT
)
REFRIGERANT FLOW
INDOOR UNIT
7.9CuT
CROSS FLOW FAN
CROSS FLOW FAN
COOLING
HEATING
FAN MOTOR
FAN MOTOR
9.5CuT
M
M
HEAT EXCHANGER
7.0CuT
7.0CuT
4D028914
