Method of Field Set Si18-201
220 Operating Test
2.2 Group Number Setting for Central Remote Control
"
When controlled by a central remote controller and an unified ON/OFF controller, the group
number setting in each group is required.
"
Carry out the setting after the central remote controller, the unified ON/OFF controller, and
the indoor units are powered on.

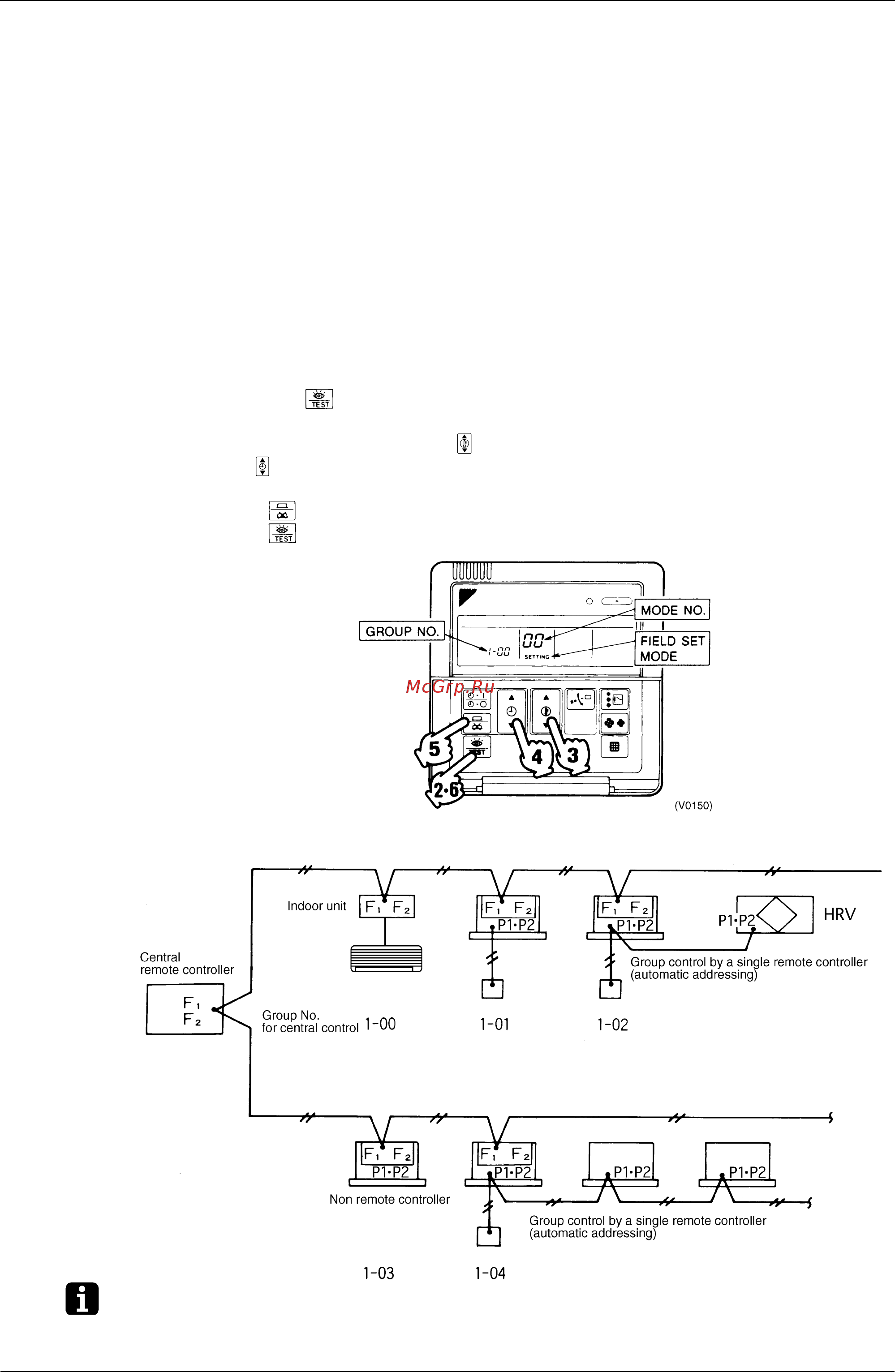

Group number setting for central remote control by a remote controller
<In case of Room Airconditioner>
The number is set by the dip switch on the PC board of interface adaptor for Room
Airconditioners.
<In case of SkyAir>
1. Power onto the indoor units and the unified ON/OFF controller. Make sure if there are any
trouble about the installation and the electric wiring or not before the power-on. (when the
power is ON, there will sometimes happen the case that it will become the state which once
all lumps will turn on before the central control lump will turn on in approx. one minute,
rejecting the handling for the control(blinking as repeating two times ON and one time OFF).
2. Hold down “” button for a minimum of 4 seconds, and then the remote controller will
enter the FIELD SET MODE.
3. Select the MODE No. “00 ” with “” button.
4. Use “” button to select the group No. for each group.
(Group numbers advance in the order of 1-00, 1-01, ... 1-15, 2-00, ... 8-15.)
5. Press “” to set the selected group No.
6. Press “” to return to NORMAL MODE.
"
Group number setting example
Note: 1. F1, F2 mark : Interface adaptor for Room Airconditioners or SkyAir.
2. In case of SkyAir without a remote controller, once connect a remote controller with SkyAir to
set the group No. for the central remote control and then remove the remote controller.
