Si18-201 Outdoor Unit
Removal Procedure 327
5

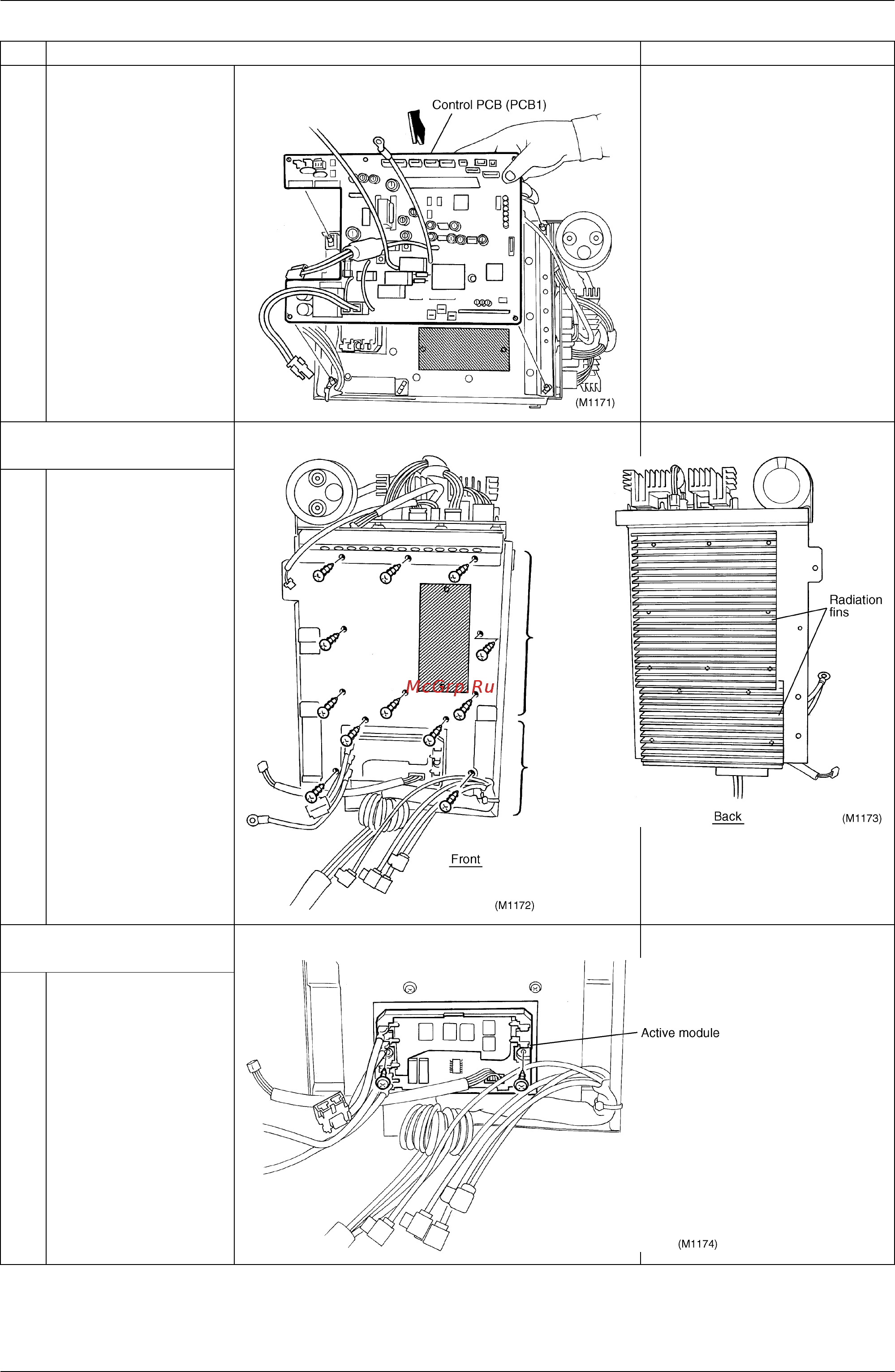

Remove the five
locking card spacers
and detach the control
PCB.
"
The back of the PCB has
silicone compound applied.
Give a slight force in
detaching the PCB.
"
Be sure to apply fresh
silicone compound before
attaching the PCB back in
place.
9. Detaching the radiation
fins
1
The radiation fins are
provided in two blocks.
Remove the eight
screws from the upper
block and the four
screws from the lower
one.
10.Detaching the active
module
1
Remove the two
screws from the active
module.
Step Procedure Points
