Outdoor Unit - RK(X)S25/35E2V1B SiBE07-724_B
124 Removal Procedure

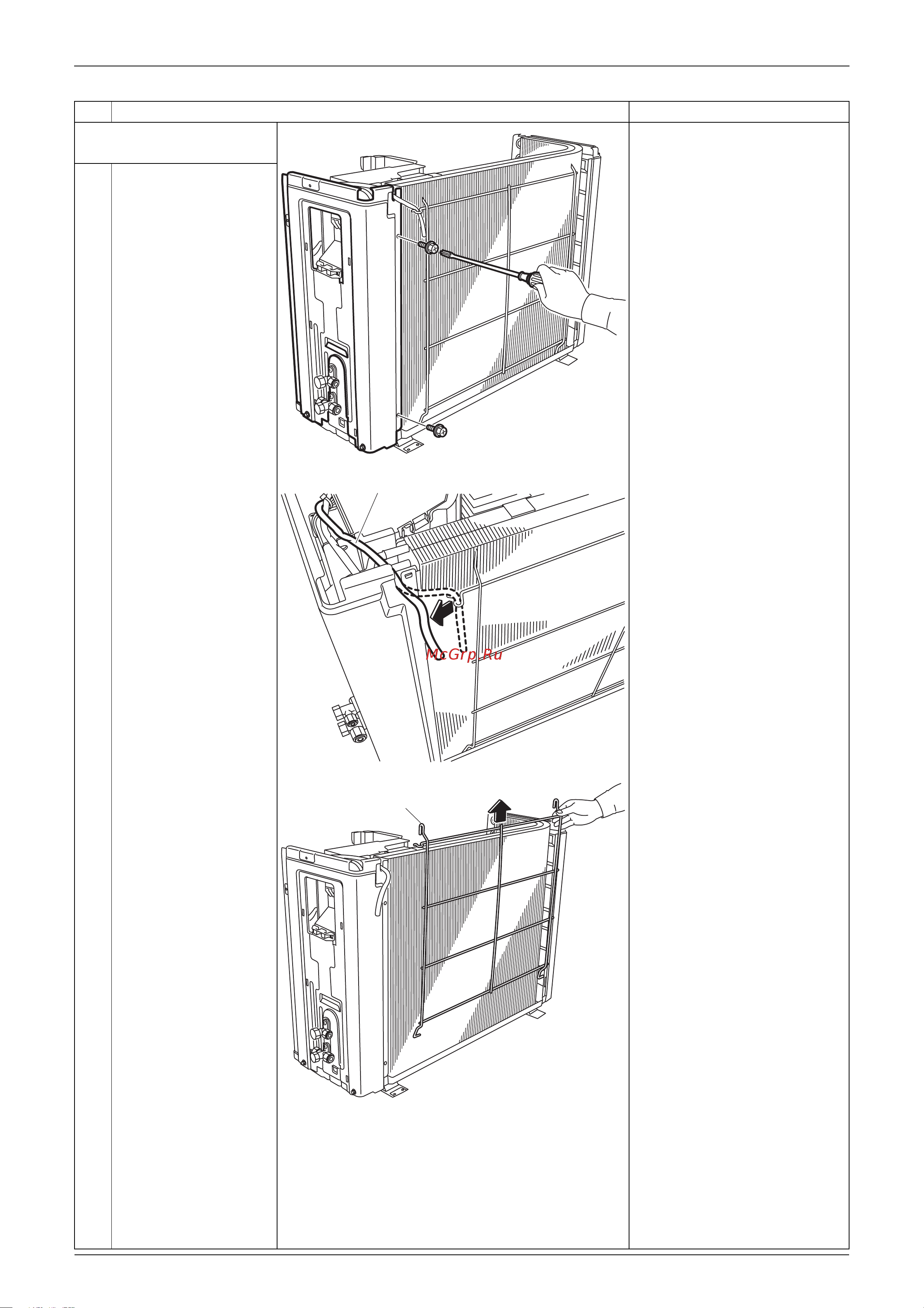

4. Remove the right side
panel.
1
Remove the 2 screws
on the rear side.
2
Release the outdoor
temperature thermistor.
3
Lift up the guard net
and remove it.
Step
Procedure Points
(R7207)
(R7208)
Outdoor temperature thermistor
Guard net
(R7209)
