Daikin FDXS25EAVMB [202/223] Removal of four way valve
![Daikin FDXS25EAVMB [202/223] Removal of four way valve](/views2/1776112/page202/bgca.png)
Outdoor Unit - RK(X)S25/35G2V1B9 SiBE07-724_B
192 Removal Procedure
3.6 Removal of Four Way Valve
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points

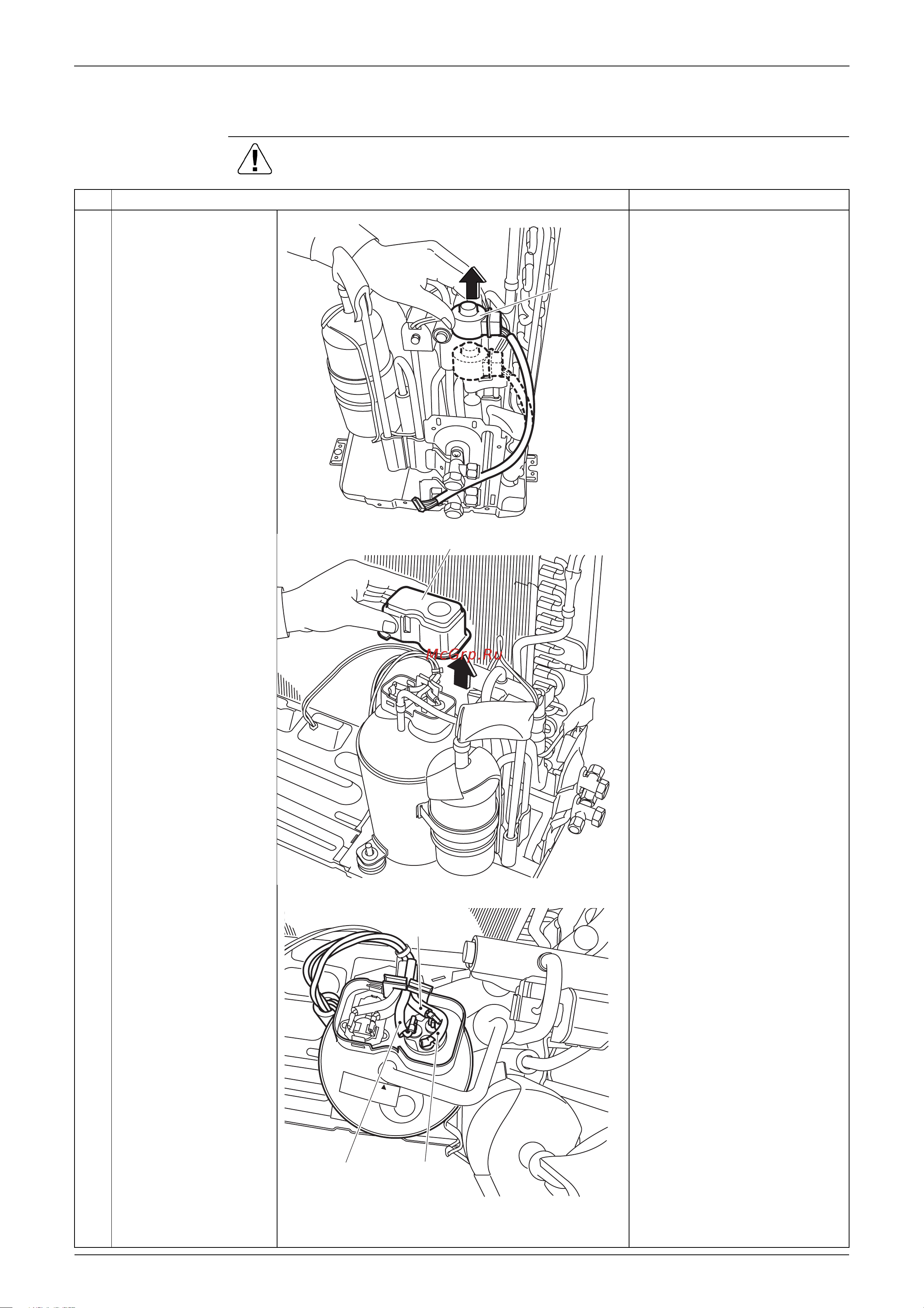

1
Pull out the electronic
expansion valve coil.
2
Remove the terminal
cover.
3
Disconnect the lead
wires of the
compressor.
(R7233)
Electronic
expansion
valve coil
(R7234)
Terminal cover
V
W
U
(R7235)
Red (U)
Yellow (V) Blue (W)
