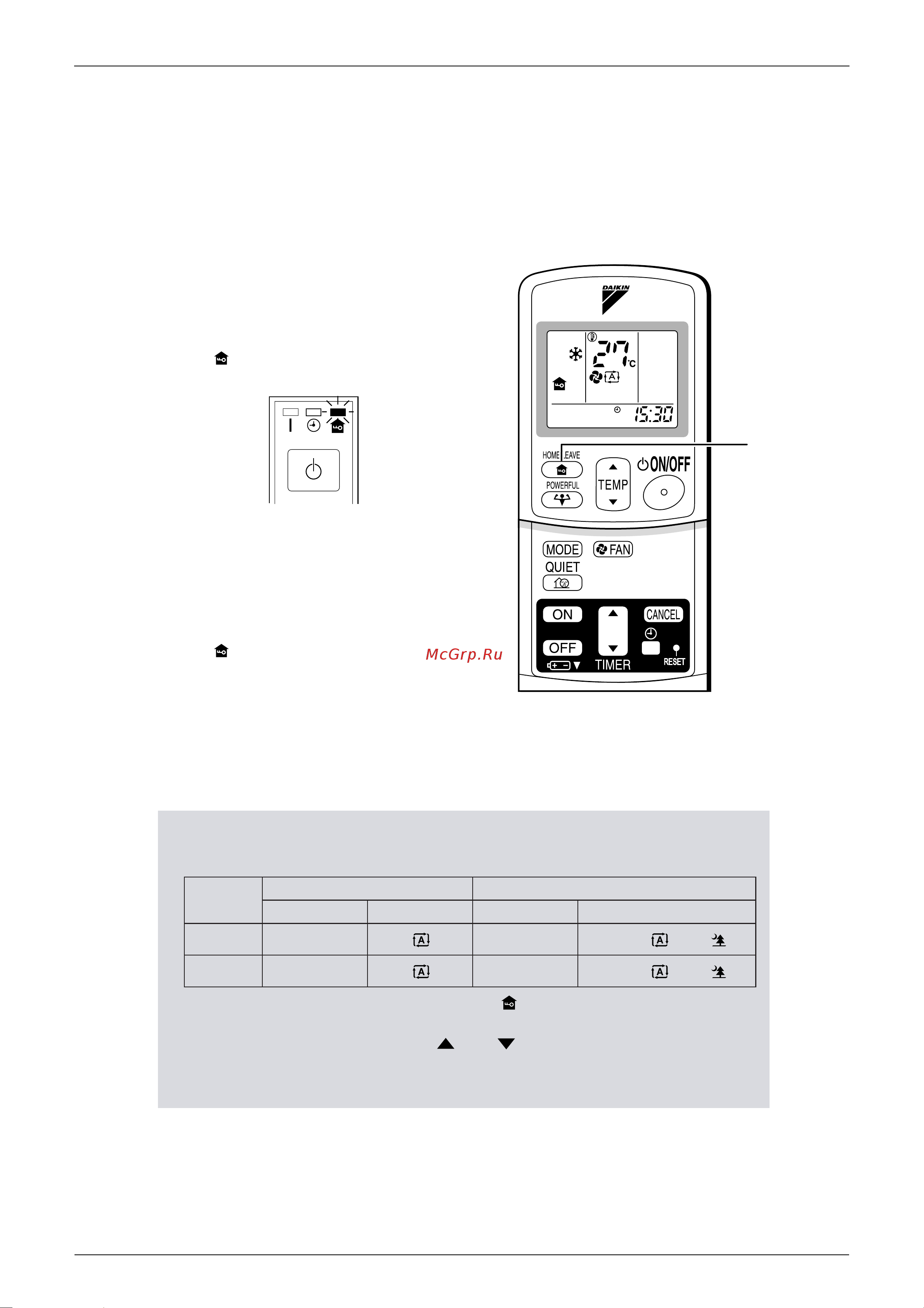

Operation Manual SiBE07-724_B
62 Operation Manual
2.5 HOME LEAVE Operation
14
HOME LEAVE Operation
1. Press “HOME LEAVE button”.
2. Press “HOME LEAVE button” again.
Before using HOME LEAVE operation.
To set the temperature and air flow rate for HOME LEAVE operation
1, 2
Initial setting Selectable range
temperature Air flow rate temperature Air flow rate
Cooling 25
°
C
“”
18-32
°
C
Heating 25
°
C
“”
10-30
°
C
HOME LEAVE operation is a function which allows you to record
your preferred temperature and air flow rate settings.
To start HOME LEAVE
operation
•
“ ” is displayed on the LCD.
•
The HOME LEAVE lamp lights up.
•
The HOME LEAVE lamp goes off.
•
“ ” disappears from the LCD.
To cancel HOME LEAVE
operation
When using HOME LEAVE operation for the first time, please set the temperature and air flow rate
for HOME LEAVE operation.
Record your preferred temperature and air flow rate.
1.
Press “HOME LEAVE button”. Make sure “ ” is displayed in the remote
control display.
2.
Adjust the set temperature with “ ” or “ ” as you like.
3.
Adjust the air flow rate with “FAN” setting button as you like.
Home leave operation will run with these settings the next time you use the unit. To change
the recorded information, repeat steps 1 – 3.
5 step, “ ” and
“”
5 step, “ ” and
“”
