SiBE07-724_B Outdoor Unit - RK(X)S25/35E2V1B
Removal Procedure 135

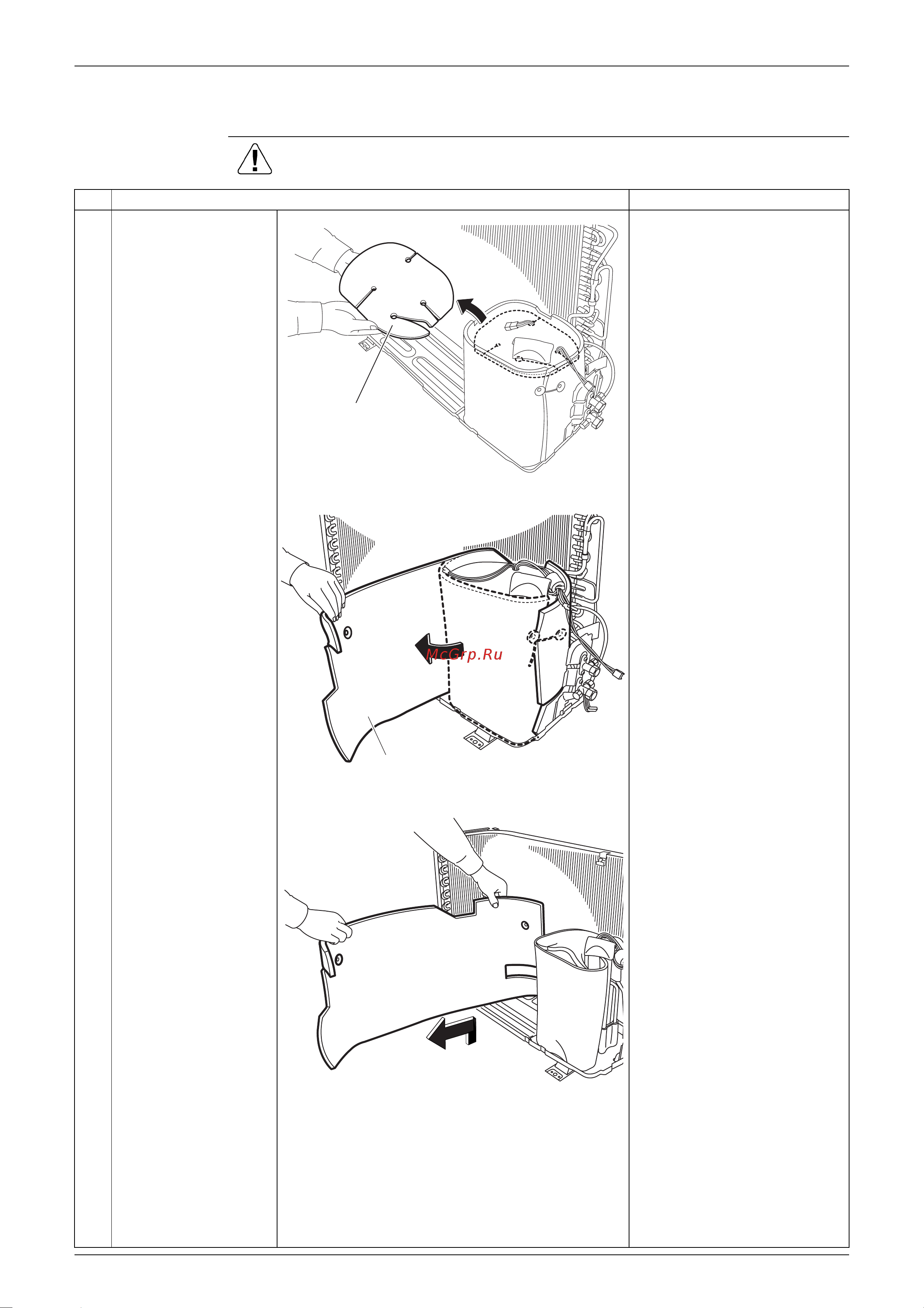

1.5 Removal of Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove the sound
blanket (top).
Since the piping ports are
torn easily, remove the
sound blanket carefully.
2
Untie the string and
open the sound blanket
(outer).
3
Lift and remove the
sound blanket (outer).
(R11884)
Sound blanket
(top)
(R7229)
Sound blanket
(R7230)
