Capacity Tables ED04-702
28 Room Air Conditioners F-Series

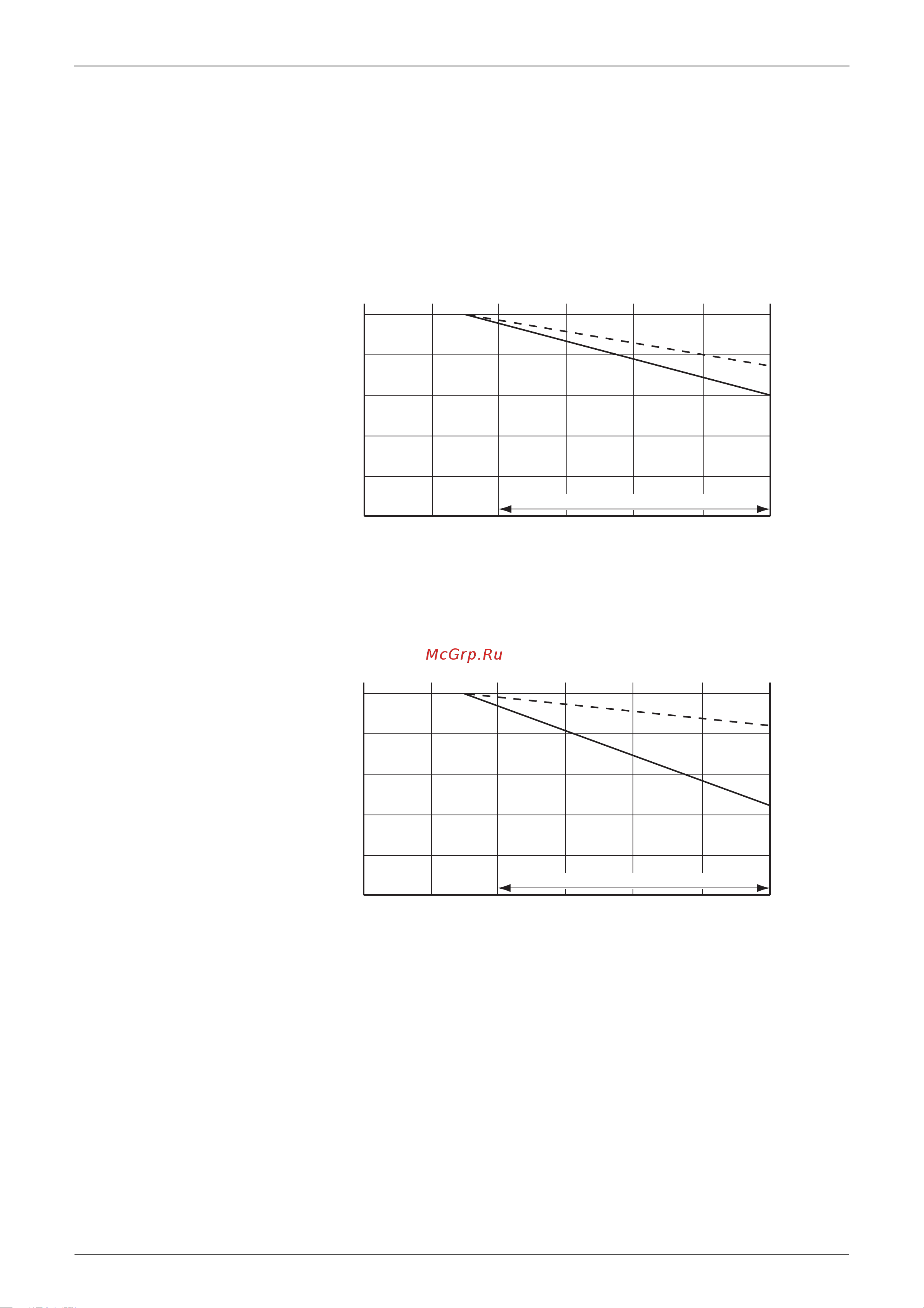

8.3 Capacity Correction Factor by the Length of Refrigerant Piping (Reference)
The cooling and the heating capacity of the unit has to be corrected in accordance with the length of
refrigerant piping. (The distance between the indoor unit and the outdoor unit)
8.3.1 50 class
8.3.2 60 / 71 class
Note: 1. The graphs show the factor when additional refrigerant of the proper quantity is charged.
Split System < — line : Cooling Capacity>
< --- line : Heating Capacity>
Capacity correction factor
1
51015202530
0.9
0.8
R-410A 50class
Piping length (m)
(R6751)
Range of the Refrigerant Additional Charge
Capacity correction factor
1
51015202530
0.9
0.8
R-410A 60/71class
Piping length (m)
(R6752)
Range of the Refrigerant Additional Charge
