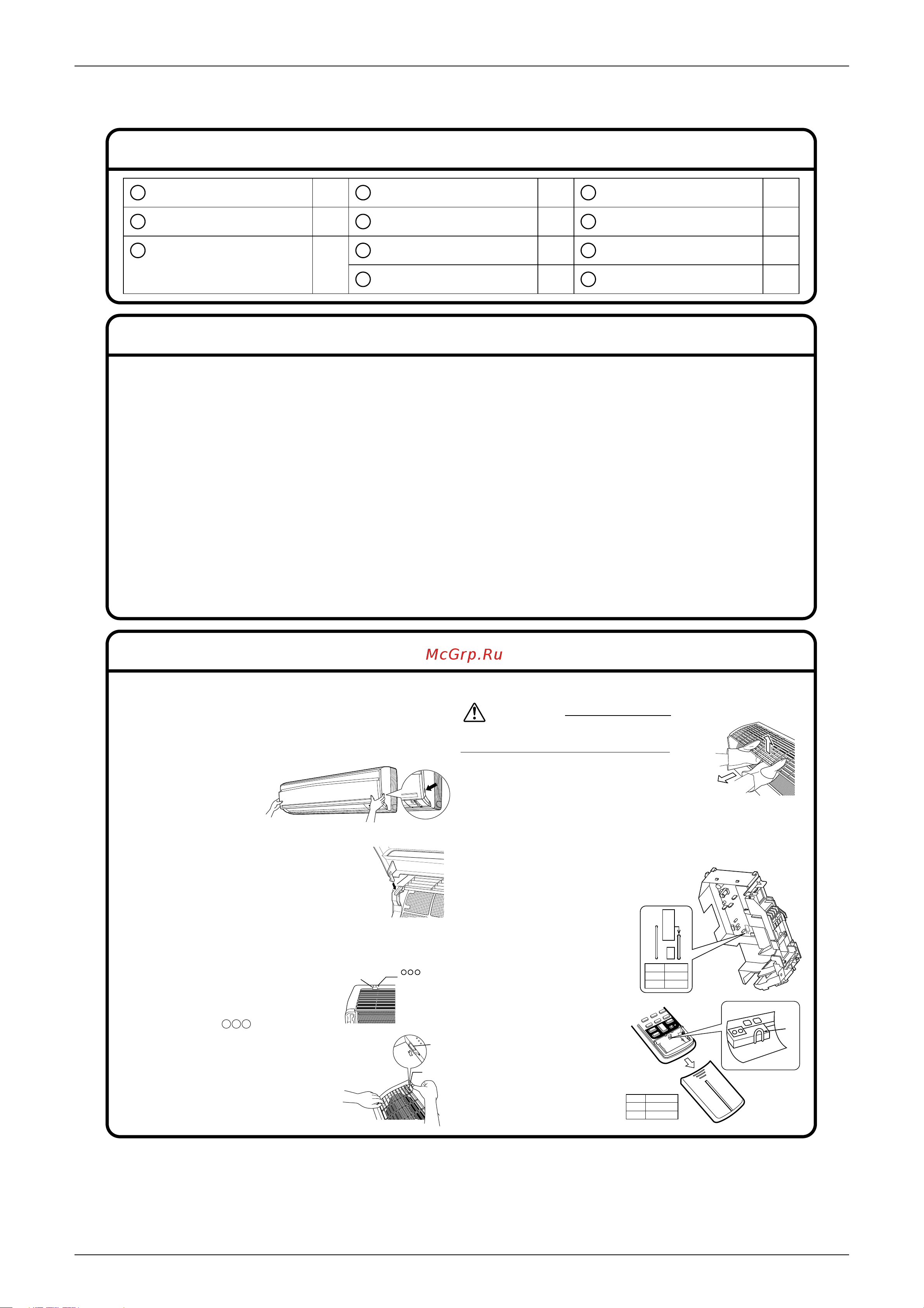

ED04-702 Installation Manual
Room Air Conditioners F-Series 37
12.1.2 FTKS 50/60/71 F
1. Indoor unit.
• The indoor unit should be sited in a place where:
1) the restrictions on installation specified in the indoor unit installation drawings are met,
2) both air intake and exhaust have clear paths met,
3) the unit is not in the path of direct sunlight,
4) the unit is away from the source of heat or steam,
5) there is no source of machine oil vapour (this may shorten indoor unit life),
6) cool air is circulated throughout the room,
7)
the unit is away from electronic ignition type fluorescent lamps (inverter or rapid start type) as they may shorten the remote controller range,
8)
the unit is at least 1 metre away from any television or radio set (unit may cause interference with the picture or sound),
9) install at the recommended height (1.8m).
2. Wireless remote controller.
1) Turn on all the fluorescent lamps in the room, if any, and find the site where remote controller signals are
properly received by the indoor unit (within 7 metres).
• Before choosing the installation site, obtain user approval.
A
B
C
D
E
F
G
H
J
K
L
1
19
1
2
2
1
1
12
Mounting plate
Titanium Apatite
Photocatalytic
Air-Purifying Filter
Wireless remote controller
Remote controller holder
AAA dry-cell batteries
Fixing screws for remote
controller holder M3 × 20L
Operation manual
Installation manual
Mounting plate fixing
screws M4 × 25L
Insulation tape
2
Indoor unit fixing screws
M4 × 12L
Accessories
Choosing an Installation Site
Installation Tips
1. Removing and installing front panel.
•
Removal method
Hook fingers on the panel protrusions on the left and right
of the main body, and open until the panel stops. Slide
the front panel sideways to disengage
the rotating shaft. Then pull
the front panel toward you
to remove it.
•
Installation method
Align the tabs of the front panel with
the grooves, and push all the way in.
Then close slowly. Push the center of
the lower surface of the panel firmly to
engage the tabs.
2. Removing and installing front grille.
• Removal method
1)Remove front panel to remove
the air filter.
2) Remove the front grille.
3) In front of the mark of
the front grille, there are 3
upper hooks. Lightly pull the
front grille toward you with one
hand, and push down on the
hooks with the fingers of your
other hand.
<When there is no work space because the unit is close to ceiling>
Be sure to wear protection gloves.
CAUTION
Place both hands under the center of the front
grille, and while pushing up, pull it toward you.
• Installation method
1) Install the front grille and firmly engage the upper hooks (3 locations).
2) Install 3 screws of the front grille.
3) Install the air filter and then mount the front panel.
3. How to set the different
addresses.
When two indoor units are
installed in one room, the
two wireless remote
controllers can be set for
different addresses.
1) In the same way as when
connecting to an HA
system, remove the metal
plate electrical wiring
cover.
2) Cut the address jumper
(JA) on the prindted
circuit board.
3) Cut the address jumper
(J4) in the remote
controller.
mark area
(3 locations)
Upper hook
Lightly pull the front grille
toward you with one
hand, and push down on
the hooks with the fingers
of your other hand.
(3 locations)
Push
down.
Upper hook
Upper hook
1) Push up.
2) Pull toward you.
Address
JA
Address
JA
EXIST
1
CUT 2
Push the
rotating shaft
of the front
panel into the
groove.
ADDRESS
J4
EXIST
CUT
1
2
J4
