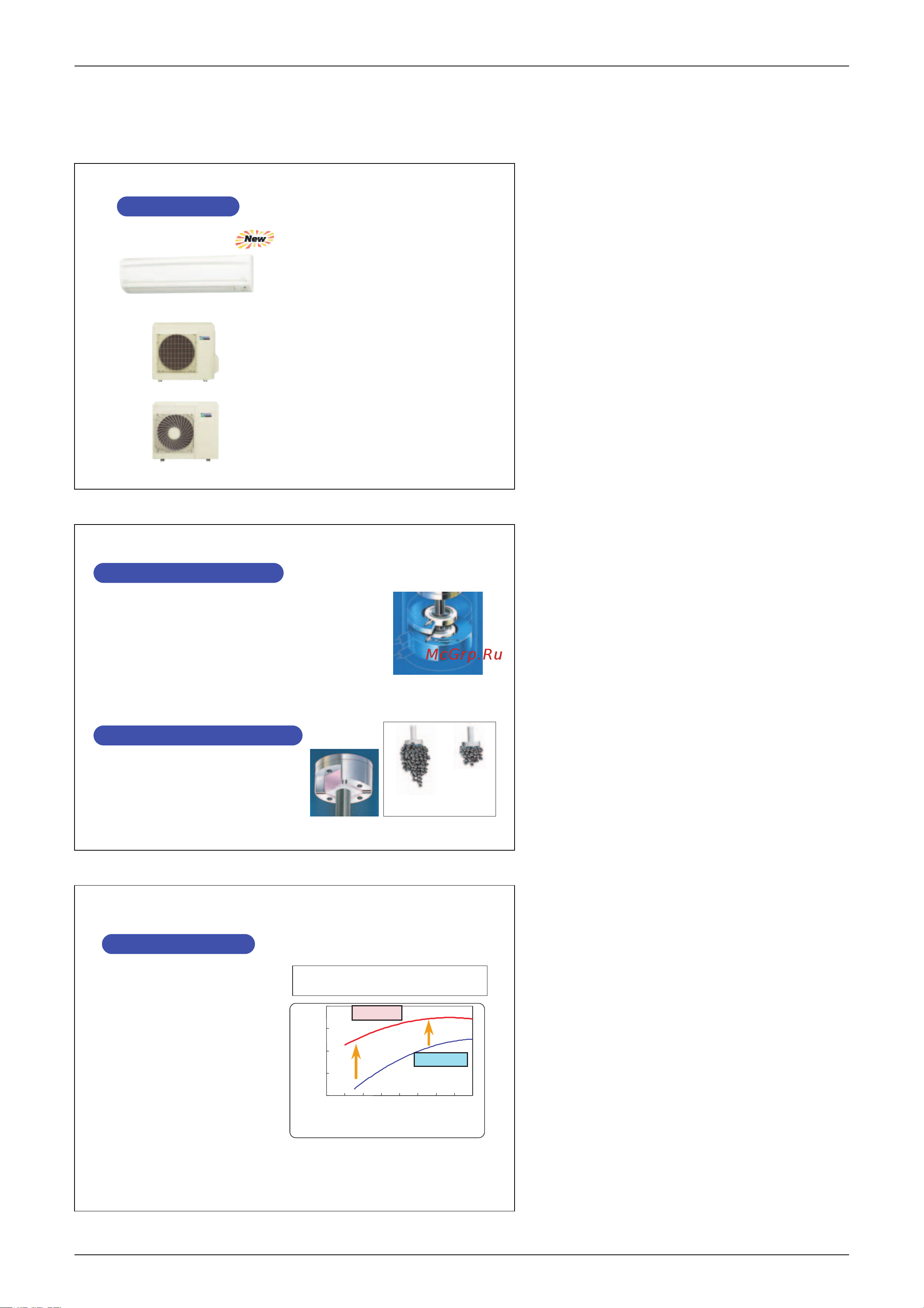

ED04-702 Features
Room Air Conditioners F-Series 3
1. Features
05RAG06A-4
Features
< FTKS50/60/71FVM >
< FTXS50/60/71FVMA >
< RKS50/60/71FVM >
< RXS50/60FVMA >
< RXS71FVMA >
Energy Saving
Swing Compressor
Reluctance DC Motor
PAM Control
Intelligent Eye
Comfortable Functions
Home Leave Operation
Indoor Unit Quiet Operation
Outdoor Unit Quiet Operation
Wipe-clean Flat Panel
Healthy & Clean Functions
05RAG06A-5
Large Energy Savings
Smooth rotation with little friction and refrigerant gas
compression with little loss, allowing high operation
efficiency
Low Vibrations and Low Noise
Smooth piston motion as if sliding along a groove,
resulting in low vibrations and low noise
High Durability
Few parts rubbing each other during operation,
achieving high performance and reliability
Swing Compressor
Higher efficiency with 2 different torques
– magnetic torque of ND magnet
and reluctance torque
Distinctive effect in energy-saving
running in low-frequency zone
Reluctance DC Motor
Neodymium
magnet
Ferrite
magnet
“”
05RAG06A-6
A DC fan motor is
introduced for the first time
in this small class. The
motor features fine rotation
control and improved
energy consumption.
A
40%
0
20
40
60
80
200 300 400 500 600 700 800 900 1000
Motor speed (rpm)
Efficiency (%)
AC motor
DC motor
DC motor efficiency
(comparison with a conventional AC motor)
pprox.
increase
Approx.
20%
increase
DC Fan Motor
