ED04-702 Operation Manual
Room Air Conditioners F-Series 73
9

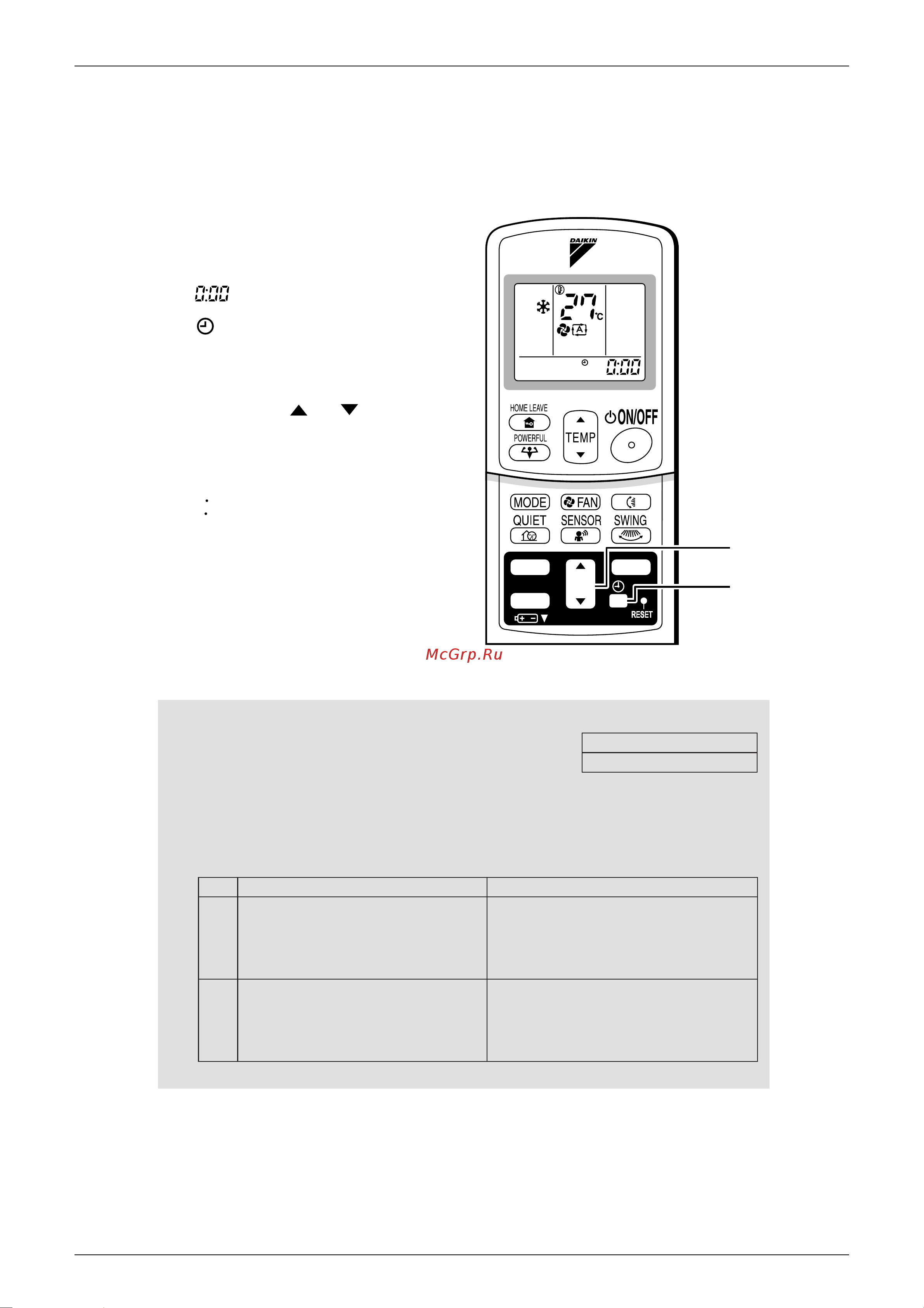

To set the clock
1. Press “CLOCK button”.
is displayed.
blinks.
2.
Press “TIMER setting button” to
set the clock to the present time.
Holding down “ ” or “ ” button
rapidly increases or decreases the time
display.
3. Press “CLOCK button”.
blinks.
Turn the breaker ON
•
Turning ON the breaker opens the flap, then
closes it again. (This is a normal procedure.)
NOTE
Tips for saving energy
•
Be careful not to cool the room too much.
Keeping the temperature setting at a moderate level helps save energy.
•
Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the cooling effect.
•
Clogged air filters cause inefficient operation and waste energy. Clean them
once in about every two weeks.
Please note
•
The air conditioner always consumes 15-35 watts of electricity even while it is not operating.
•
If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn the breaker OFF.
•
Use the air conditioner in the following conditions.
•
Operation outside this humidity or temperature range may cause a safety device to disable the system.
TIMER
ON
CANCEL
OFF
1, 3
2
Recommended temperature setting
For cooling:26
°
C – 28
°
C
Mode Operating conditions If operation is continued out of this range
COOL
Outdoor temperature:
<3MKS50/4MKS71> –10 to 46˚C
<4MKS80> 10 to 46˚C
<RKS> –10 to 46˚C
Indoor temperature: 18 to 32˚C
Indoor humidity: 80% max.
•
A safety device may work to stop the operation.
(In multi system, it may work to stop the operation of the
outdoor unit only.)
•
Condensation may occur on the indoor unit and drip.
DRY
Outdoor temperature:
<3MKS50/4MKS71> –10 to 46˚C
<4MKS80> 10 to 46˚C
<RKS> –10 to 46˚C
Indoor temperature: 18 to 32˚C
Indoor humidity: 80% max.
•
A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
