SiE18-201 Operating Test
Operating Test 159
*ex.) : Connect indoor units (2 rooms) to BP1.
Connect indoor units (3 rooms) to BP2.
Connect indoor units (2 rooms) to BP3.
The indoor units for 2 rooms are connected to BP3, but the display indicates
“BP unit unconnected.” There is a transmission failure between outdoor units
and BP unit.
Check the connecting wiring in part in the diagram below.
“” :BP unit unconnected, or transmission failure between outdoor
units and BP unit
“Numeral value” : The number of indoor units connected to each BP unit
The numbers of indoor units connected to BP1 and BP3 do not agree with the
indication. There is transmission failures between BP units and indoor units.
Check the connecting wiring in part in the diagram below.
* When checking the connecting wiring, make sure the wire numbering is
correct and that there are no numbers missing.
Normal
Flash
Transmission failure
Switch Box
Service Monitor
OUTDOOR
UNIT
INDOOR
UNIT 1
INDOOR
UNIT 2
INDOOR
UNIT 4
INDOOR
UNIT 3
INDOOR
UNIT 5
INDOOR
UNIT 6
INDOOR
UNIT 7
BP3
BP1
BP2

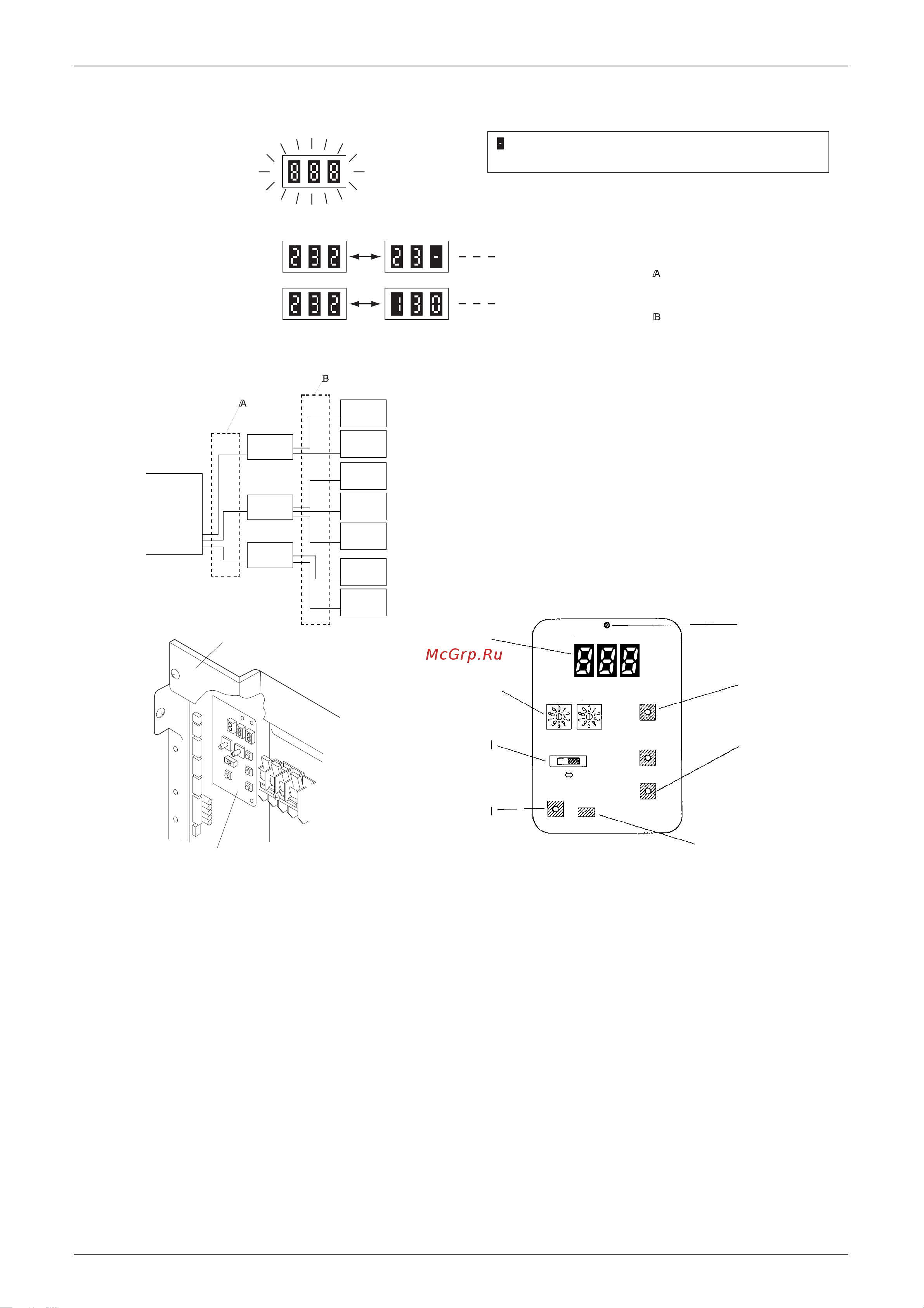

SERVICE MONITOR RAYOUT (ON PCB)
DIGITAL
SERVICE
MONITOR
LED A
SW1 SW2 SW6
SW5
SW4
SW3
SW7
TEST JP
(UP)
COOL HEAT
PUMP
DOWN
(DOWN)
SET
LED1
SERVICE MONITOR
LED2 LED3
OUTDOOR UNIT
STATUS
-
NORMAL
LED
INITIALIZE
SW
PUMP
DOWN
SW
SILENT
SELECT
SW
ADDRESS
SELECT SW
FORCED
OPERATION
MODE
SELECT SW
TEST
OPERATION
SW
