Troubleshooting - SkyAir Indoor Unit SiE18-201
196 Service Diagnosis
2.2 Self-Diagnosis by Wired Remote Controller
Explanation If operation stops due to malfunction, the remote controller’s operation LED blinks, and
malfunction code is displayed. (Even if stop operation is carried out, malfunction contents are
displayed when the inspection mode is entered.) The malfunction code enables you to tell what
kind of malfunction caused operation to stop. See page 200 for malfunction code and
malfunction contents.

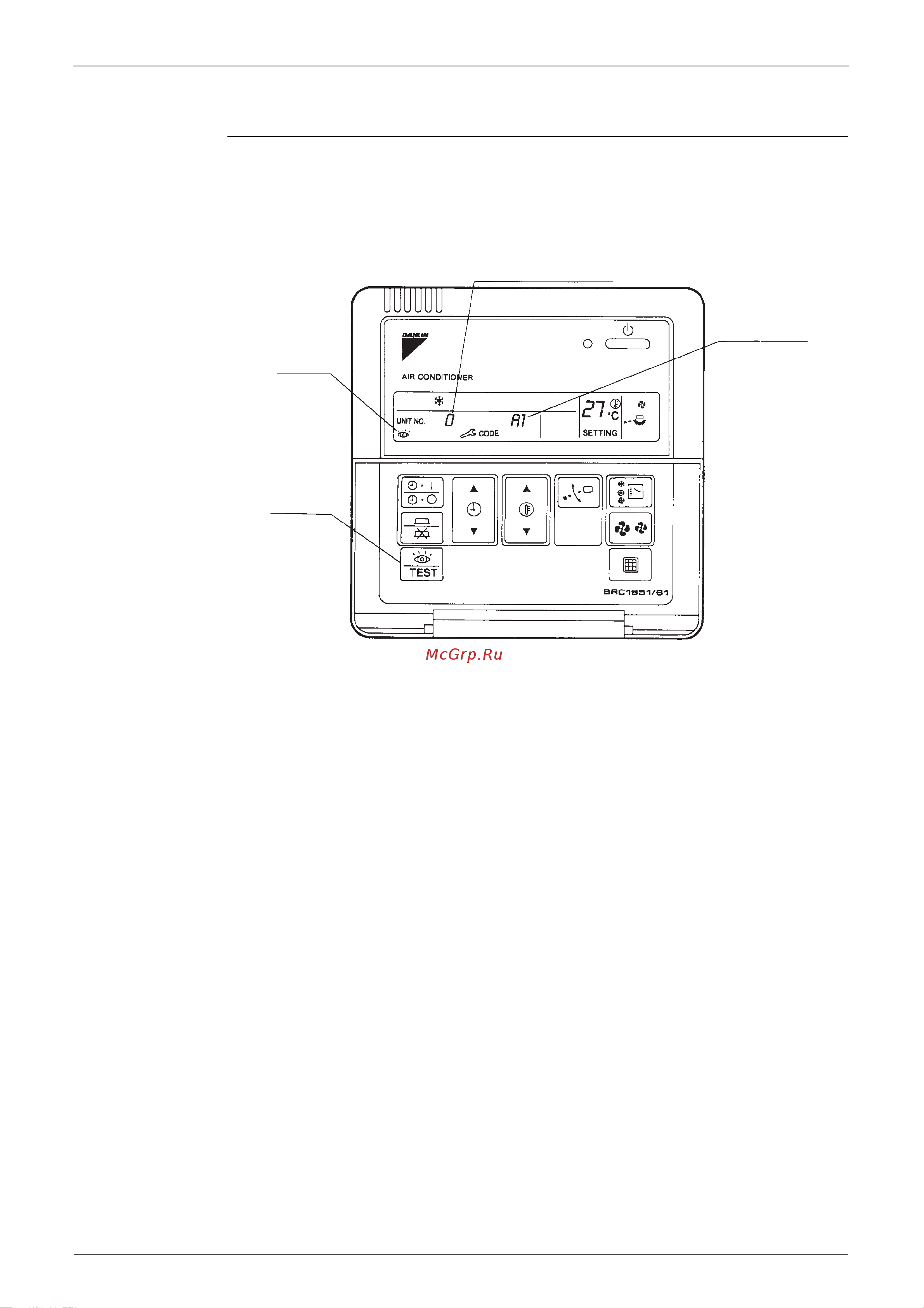

Displays the unit No. of the
malfunctioning indoor unit.
Display the
malfunction code.
Inspection
display
Inspection/
test button
(SL038)
