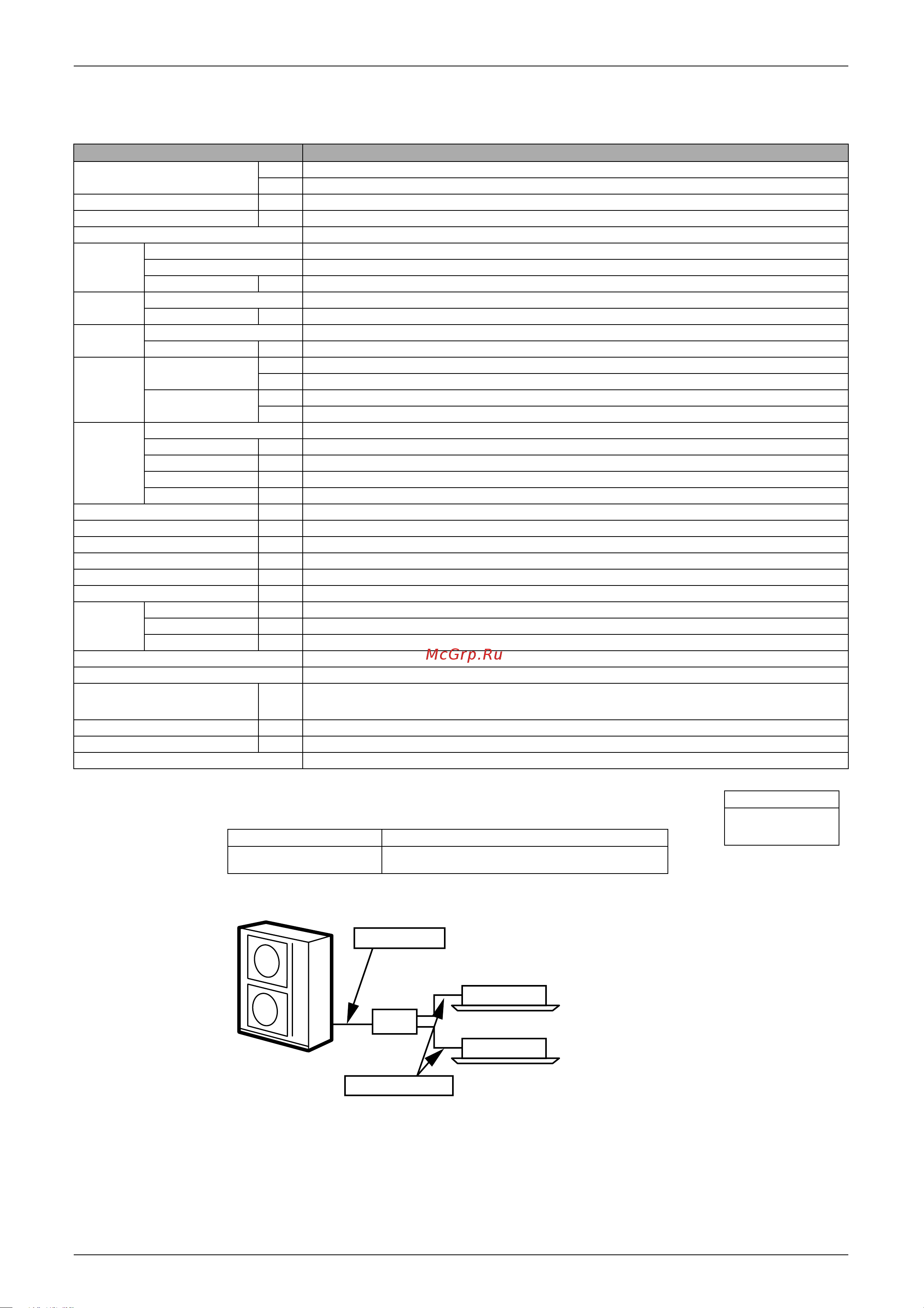

Daikin RMX140JZVMB [22/344] Bp unit
![Daikin RMX140JZVMB [22/344] Bp unit](/views2/1782301/page22/bg16.png)
SiE18-201 Specifications
Specifications 11
Notes:
1. ★ Refer to Engineering Data Book.
2. The data are based on the conditions shows in the table below.
50Hz 220-230-240V / 60Hz 220-230V
Model RMK140JZVMA
Cooling Capacity (19.0˚CWB)
kW 14.5
kcal/h 12,470
Power Consumption ★ W5,000
Running Current ★ A 23.2-22.2-21.3
Casing Color Ivory White
Compressor
Type Hermetically Sealed Scroll Type (Oval Discharge)
Model JT100FAVD
Motor Output W 3,300
Refrigerant
Oil
Model DAPHNE FVC68D
Charge kg 1.5
Refrigerant
Type R407C
Charge kg 9.9
Air Flow Rate
m³/min
H 114
L 104
cfm
H4,024
L3,671
Fan
Type Propeller
Motor Output W (Upper Side) H : 53 L : 38 (Lower Side) H : 41 L : 30
Running Current A (Upper Side) H : 0.50 L : 0.45 (Lower Side) H : 0.47 L : 0.42
Power Consumption W (Upper Side) H : 93.1 L : 78.8 (Lower Side) H : 81.3 L : 68.8
Power Factor % 100
Starting Current A 29.0
Dimensions (H×W×D) mm 1,345×880×320
Package Dimensions (W×D×H) mm 918×394×1,397
Weight kg 134
Gross Weight kg 143
Operation Sound dBA 53
Piping
Connection
Liquid mm φ9.5 (Flare Connection)
Gas mm φ19.1 (Flare Connection)
Drain mm φ18
Heat Insulation Both Liquid and Gas Pipes
No. of Wiring Connection 3 For Power Supply, 4 For Interunit Wiring (Included Earth Wiring)
Max. Interunit Piping Length m
115 (Total Main Piping and Branch PIping)
55 (Total Main Piping), 60 (Total Branch Piping)
15 (Max. Length for Each Room)
Amount of Additional Charge g/m Chargeless
Max. Installation Height Difference m 30 (Between Indoor or BP Unit and Outdoor Unit), 15 (Both between Indoor Units and BP Units)
Drawing No. 3D031579
Cooling Piping Length
Indoor ; 27˚CDB / 19.0˚CWB
Outdoor ; 35˚CDB
Main Piping : 5m
Branch Piping : 3m (each indoor unit / 71 Class+60 Class)
Conversion Formulae
kcal/h=kW×860
Btu/h=kW×3414
cfm=m³/min×35.3
BP Unit
Outdoor Unit
Main Piping
Branch Piping
Indoor Unit
(Q0143)
