Determination of initial frequency for cooling

Initial frequency FSR is determined based on the correction of outside air temperature (DOA)

and discharge pipe temperature (DO) in accordance with the above matrix.

FSR = KFIDO ° (2/128 ° (DOA - 35˚C) ° FINI1+FINI1)

KFIDO varies depending on discharge pipe temperature DO

When DO ≥ DOFINI (45˚C): KFIDO = KFIDOH (128/128) --- Hot start

When DO < DOFINI (45˚C): KFIDO = KFIDOL (179/128) --- Cold start

Reference Outside Air Temperature Hot Start Cold Start

35˚C 128/128 179/128

Outside Air

Temperature

Hot Start Cold Start

-5 37.5% 52.4%

0 45.3% 63.4%

5 53.1% 74.3%

10 60.9% 85.2%

15 68.8% 96.1%

20 76.6% 107.1%

25 84.4% 118.0%

30 92.2% 128.9%

35 100.0% 139.8%

40 107.8% 150.8%

45 115.6% 161.7%

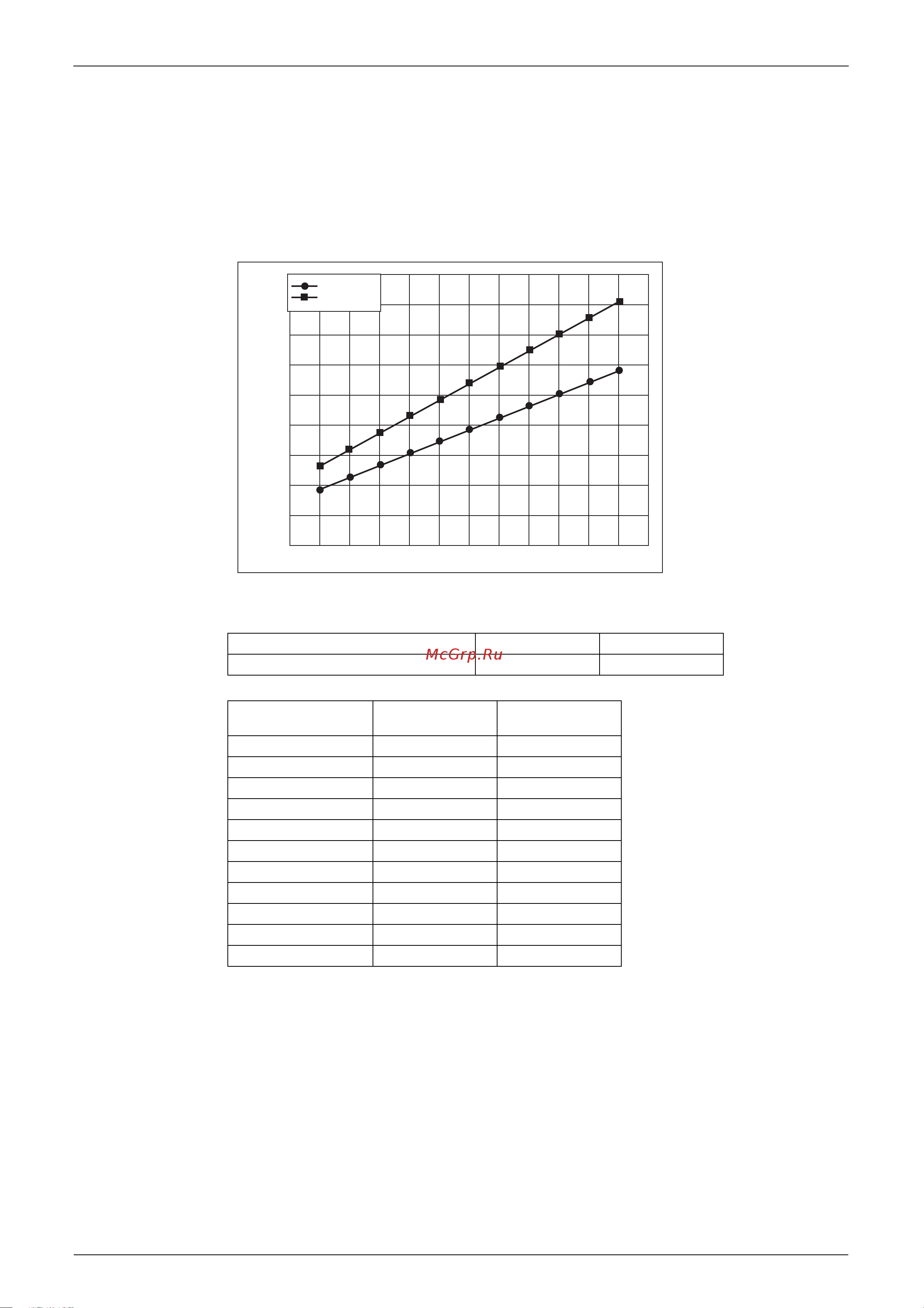

Initial HZ multiplication

Hot start

Cold start

-10 -5 0 5 10 15 25 30 35 40 45 50

Outside

air temperature

20%

40%

60%

80%

100%

120%

140%

160%

180%

(M1009)
