SiE18-201 Outdoor Unit
Removal Procedure 285
3

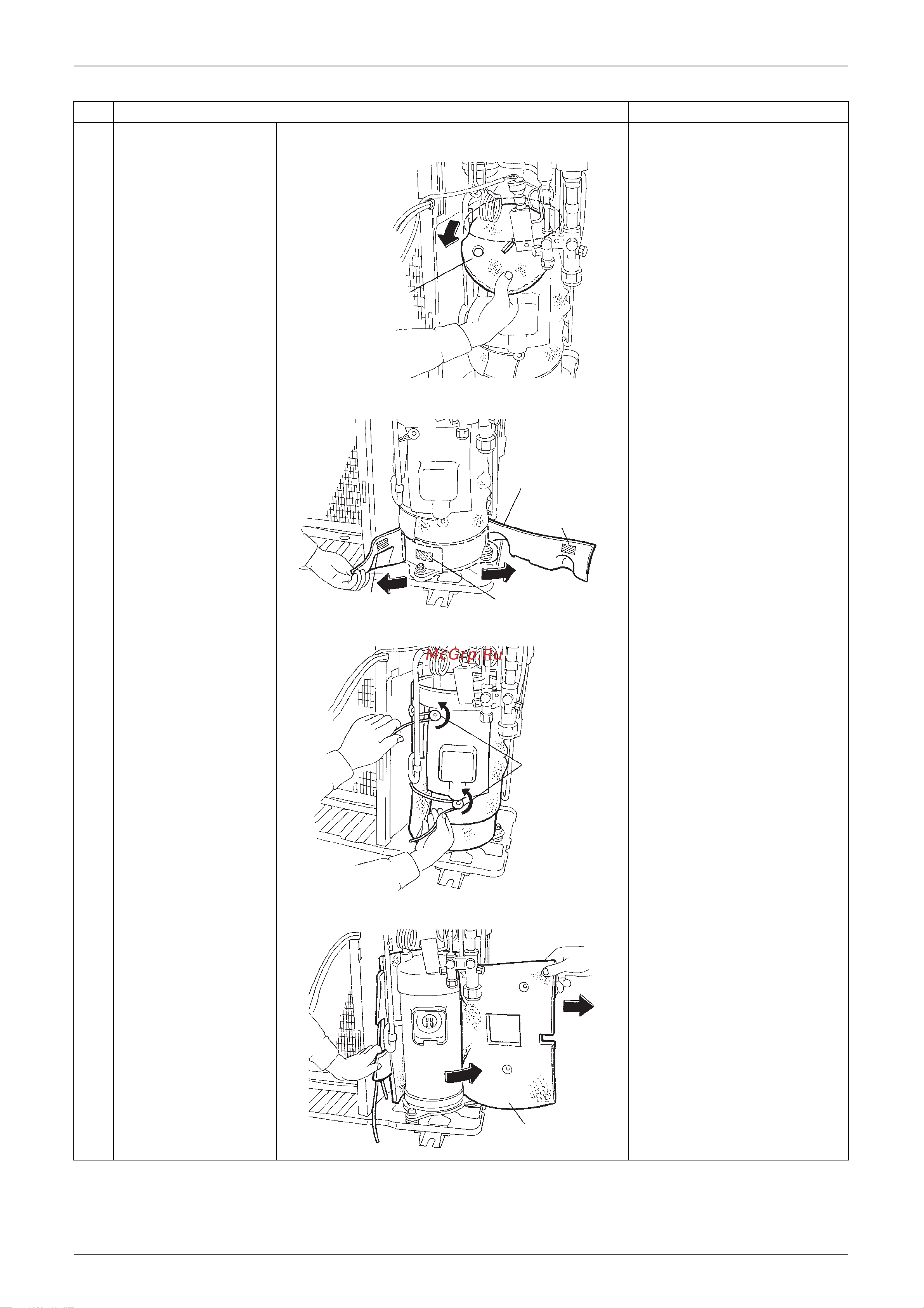

Draw out the sound
insulation cover from
the bottom of the
compressor.
4
Undo the two points of
the sound insulation
fixture string.
5
Open the sound
insulation and draw it
out.
Step Procedure Points
Sound insulation atop
the compressor
(M1207)
Velcro tape Velcro tape
Velcro tape
(M1208)
Sound insulation
Fixture string
(M1209)
Sound insulation
(M1210)
