Si04-115 For FTK25J, FTK35J, FTX25J, FTX35J
Removal Procedure 113
2

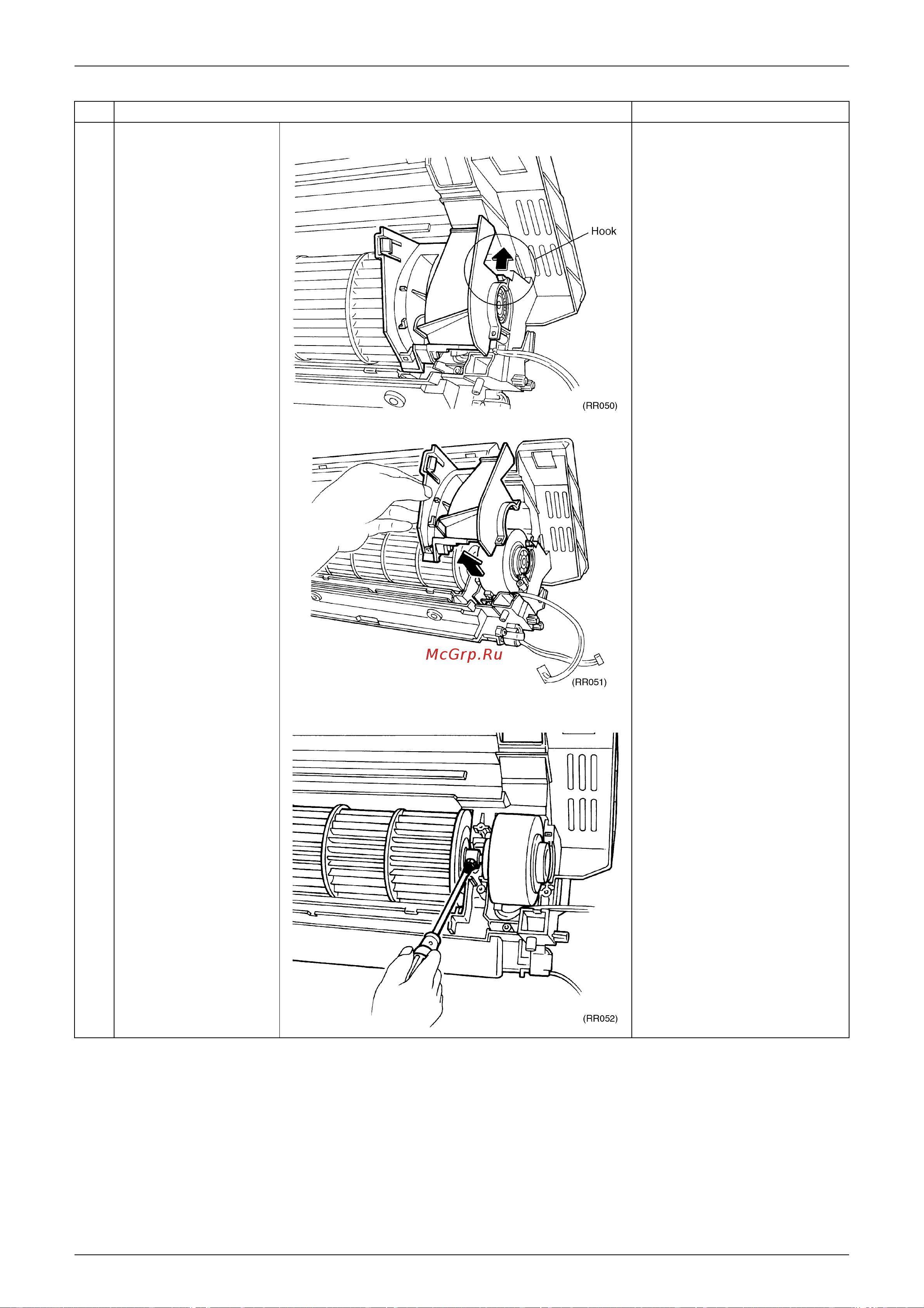

Disengage hook.
3
Loosen the hexagon
head set screw on the
fan rotor.
