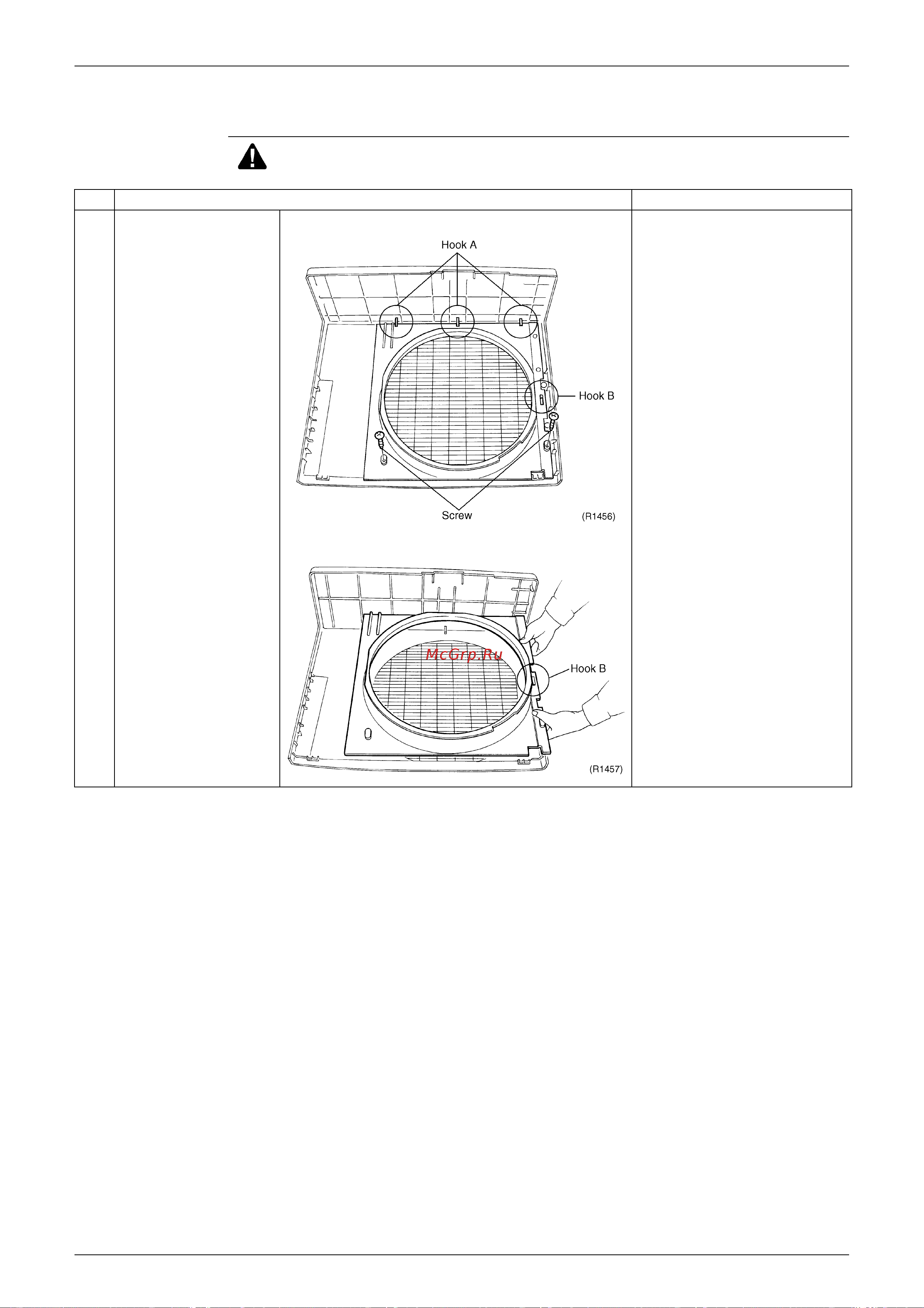

Si04-115 For RK25J, RK35J, RX25J, RX35J
Removal Procedure 119
2.2 Removal of Bell mouth and Left Side Plate
Procedure Warning Be sure to turn off all power supplies at least 10 min. before
disassembling work.
Step Procedure Points
1
The bell mouth is
attached to the front
plate with two screws
and four hooks.
"
Remove the bell mouth from
the front plate after removing
the two screws which are set
below.
2
Remove the two screws
and undo the four
hooks to release the
bell mouth.
"
Slide the bell mouth in the
arrow direction to disengage
the hook B.
