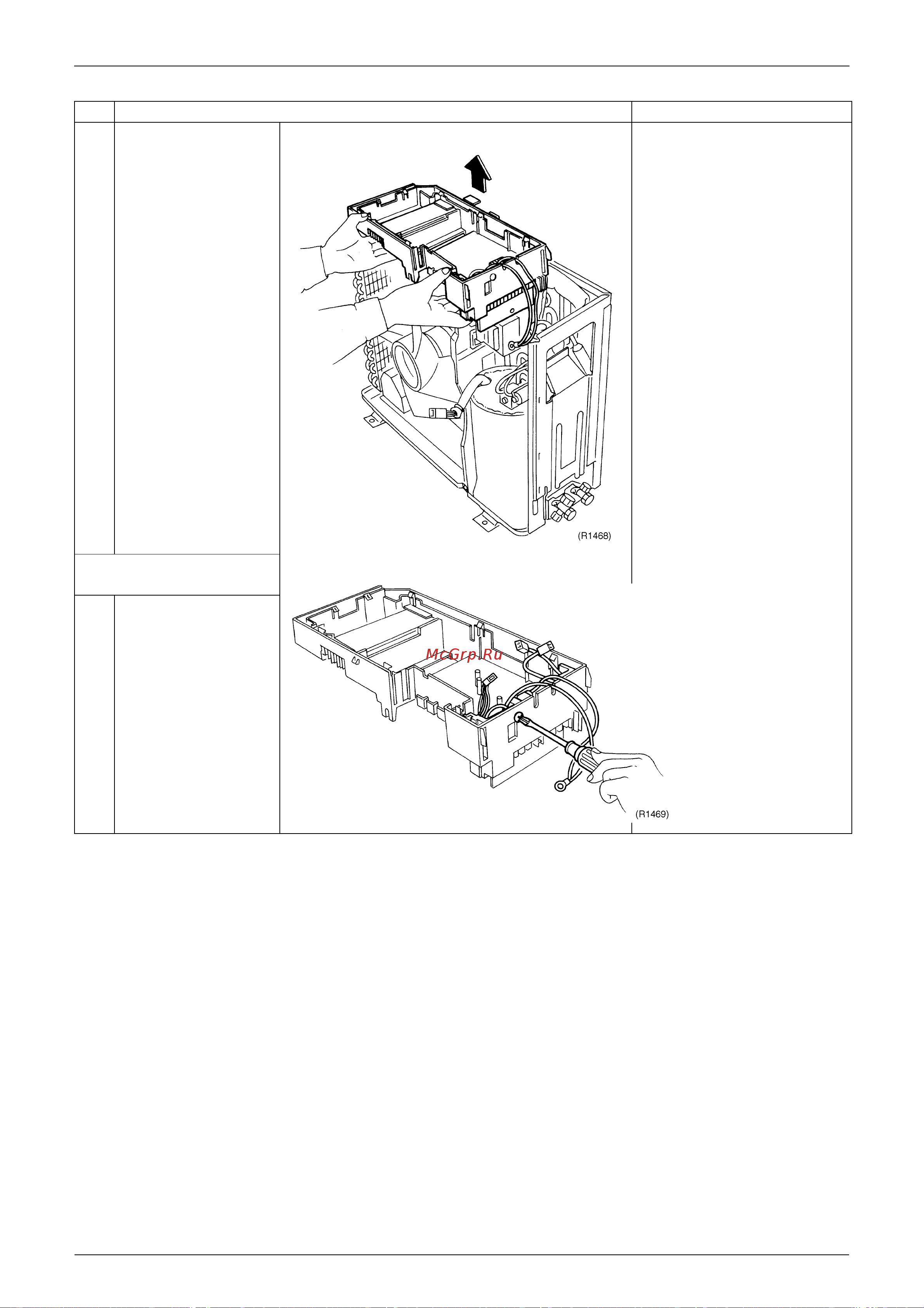

For RK25J, RK35J, RX25J, RX35J Si04-115
124 Removal Procedure
2
Lift and remove the
switch box.
4. Remove the molded
interconnect device (MID).
1
Remove the one screw
fixing the MID.
