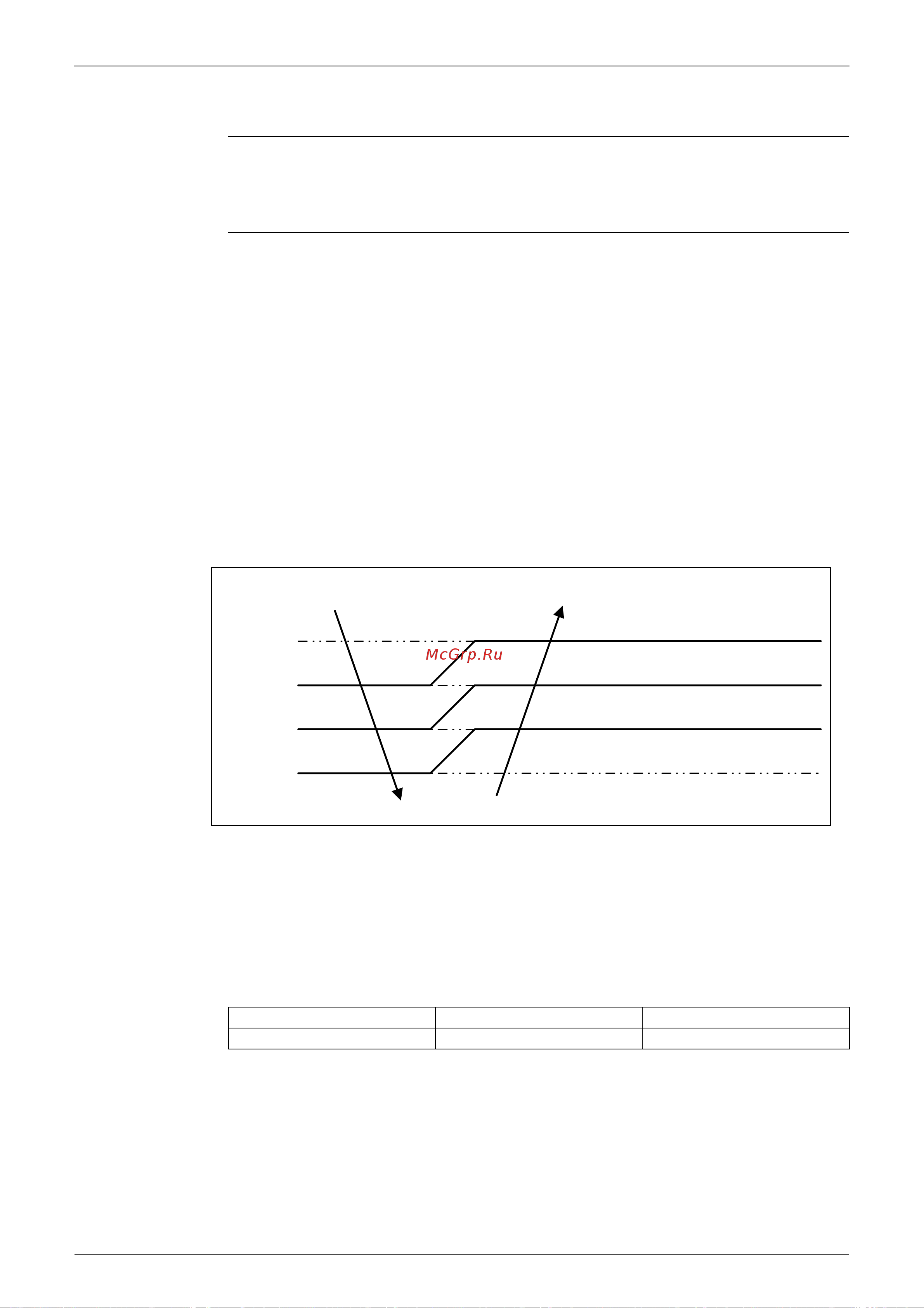

General Functionality Si04-115
40 Main Function
1.19 Dew Condensation Sweating Prevention Function
Outline During Cooling/Dry operation, when the heat exchanger’s temperature falls down excessively,
the capacity supply will be reduced (frequency step down) so as to prevent dew formation
around a discharge grille caused by a excessive capacity supply to an indoor unit.
Processing 1. Conditions of beginning/ending for this function.
Operation mode is in Cooling/Dry.
Compressors operate.
Fan speed < MH tap
Outdoor temperature
≤
32°C
Dew condensation sweating prevention function will start, if are under the
simultaneous condition with AND.
Operation mode is not in Cooling/Dry.
Compressors stop
MH tap
≤
fan speed
Outdoor temperature > 32°C
Dew condensation sweating prevention function will be completed if are under the
coordinate condition with OR.
2. Control details
"
It controls the operation frequency in accordance with the temperature zone in the step
down area ~ the return area which are set in every model.
"
Frequency limitation by means of freeze protection control will not be carried out in the return
area.
"
Frequency is increased approximately every 2 Hz/min. in the up-area.
"
Frequency alteration will not be conducted in the steady area.
"
Frequency - down is carried out in the step down area approximately every 2 ~ 4 Hz/min.
DCTUYU : Heat exchanger temperature of dew condensation sweating prevention
DCTUYU+3˚C
DCTUYU+1˚C
(Return area)
(Up-area)
(Steady area)
(Step down area)
DCTUYU+2˚C
DCTUYU
at the descend of
heat exchanger temp.
at the rise of heat
exchanger temp.
(R1923)
Setting a constant J type pair J type multi.
