Si04-115 Instruction
System Configuration 47
7
l
Holding down ( ) or ( ) button
rapidly increases or decreases the time display.
Tips for saving energy
l
Be careful not to cool (heat) the room too much.
Keeping the temperature setting at a moderate level helps
save energy.
Recommended temperature setting
F
or cooling: 26
˚C – 28˚C
For heating: 20˚C – 24˚C
l
Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the
cooling (heating) effect.
l
Clogged air filters cause inefficient operation and waste
energy. Clean them once in about every two weeks.
Please note
l
The air conditioner always consumes 15 – 35 watts of electricity
even while it is not operating.
l
If you are not going to use the air conditioner for a long period,
for example in spring or autumn, turn the breaker OFF.
l
Use the air conditioner in the following conditions.
Mode
COOL
HEAT
DRY
Operating conditions
Outdoor temperature : 10 to 46˚C
Indoor temperature : 18 to 32˚C
Indoor humidity : 80% max.
Outdoor temperature : –10 to 21˚C
Indoor temperature : 10 to 30˚C
Outdoor temperature : 21 to 46˚C
Indoor temperature : 18 to 32˚C
Indoor humidity : 80% max.
If operation is continued out of this
range:
• A safety device may work to stop the
operation.
• Condensation may occur on the indoor
unit and drip.
• A safety device may work to stop the
operation.
• A safety device may work to stop the
operation.
• Condensation may occur on the indoor
unit and drip.
l
Operation outside this humidity or temperature range may cause
a safety device to disable the system.
NOTE

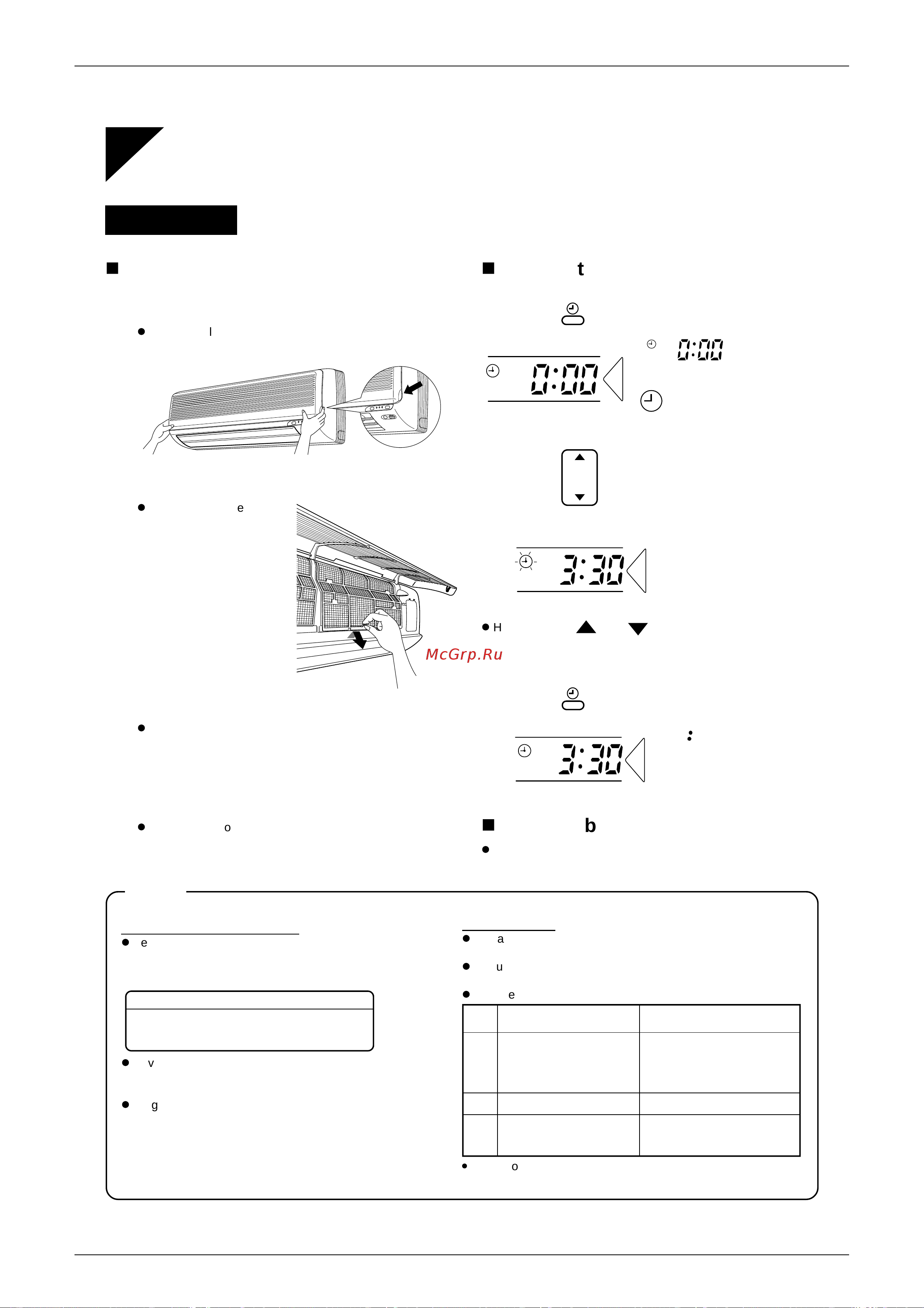

Preparation Before Operation
Indoor unit
n
Setting the clock
Press .
AM
is displayed.
Press
TIMER
to set the clock to the present
time.
blinks.
Press
.
blinks.
(Now the clock is set.)
1
2
3
n
Turn the breaker ON
l
Turning ON the breaker opens the flap, then closes it again.
(This is a normal procedure.)
n
Setting the air purifying filters
Open the front grille.
l
Hold the grille by the tabs on the two sides and lift it until
it stops with a click. (about 60˚)
Set the air purifying filters.
l
Attach an air purifying filter to each air filter.
(See page 54 "Care and cleaning")
Set the air filters in their original
positions and close the front grille .
l
Operation without air filters may result in troubles as dust
will accumulate inside the indoor unit.
Pull out the air filters.
l
Push upwards the tab at
the center of each air
filter, then pull it down.
1
2
3
4
AM
Display
PM
Display
PM
Display
(R1929)
