Nissan Note [10/66] Differential gear
![Nissan Note [10/66] Differential gear](/views2/1789828/page10/bga.png)
MT-10
[JH3]

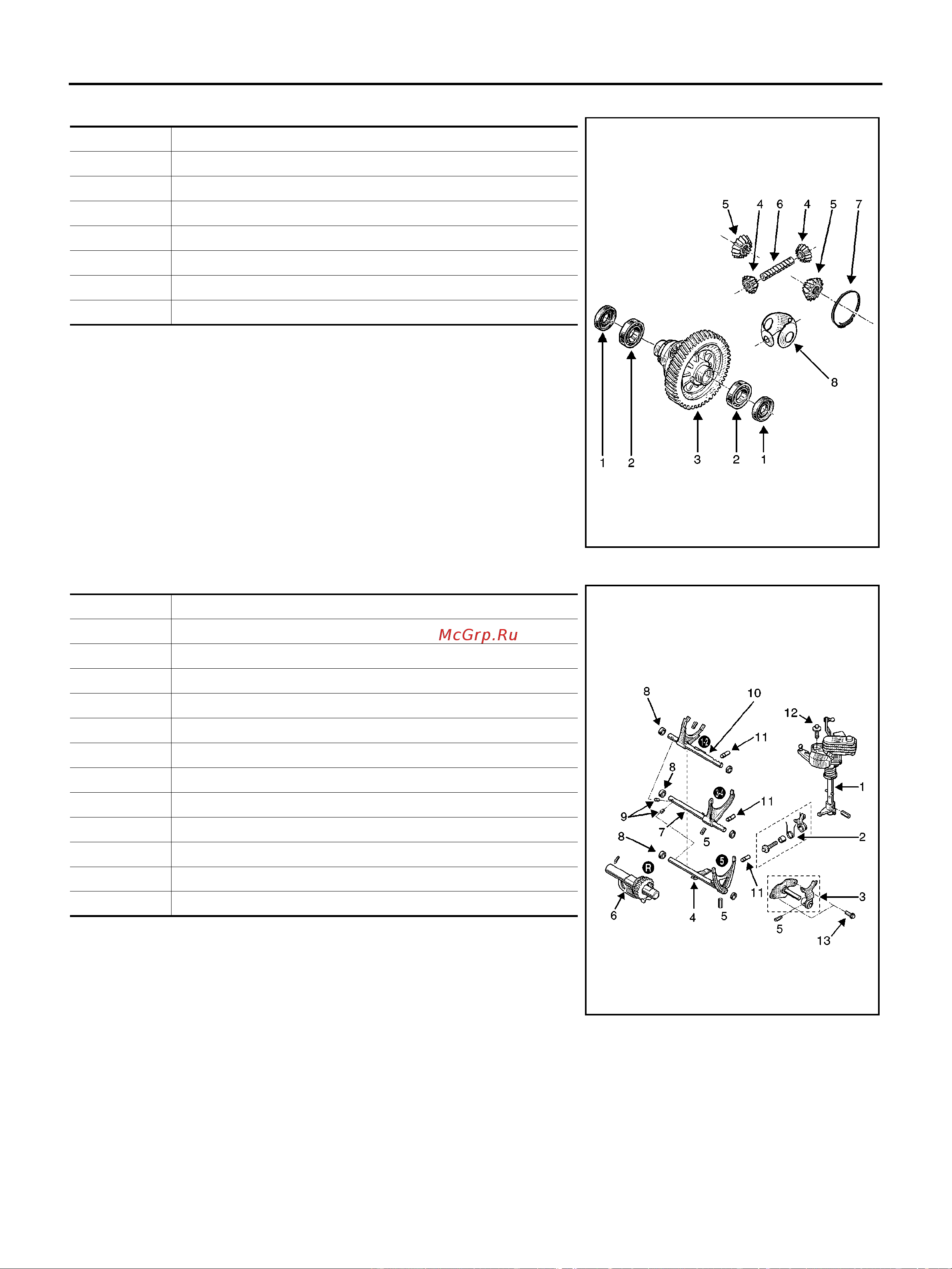

COMPONENTS
Differential Gear
BCS000L7
Shift Control Components
BCS000L8
1Oilseal
2 Differential side bearing
3 Differential case
4 Pinion mate gear
5 Bevel side gear
6 Pinion mate shaft
7 Shaft retaining spring
8 Side gear thrust washer
MCIA0170E
1 Control assembly
2 Gear shift catch
3 Reverse gear brake fork and shaft
4 Fork rod (For 5th)
5 Lock pin
6 Reverse idler gear assembly
7 Fork rod (For 3rd and 4th)
8Ring
9 Lock pin
10 Fork rod (For 1st and 2nd)
11 Check ball cartridge
12 Selector shaft bolt [20 N·m (2.0 kg-m, 15 ft-lb)]
13 Reverse gear fork shaft bolt [25 N·m (2.6 kg-m, 18 ft-lb)]
MCIA0155E
