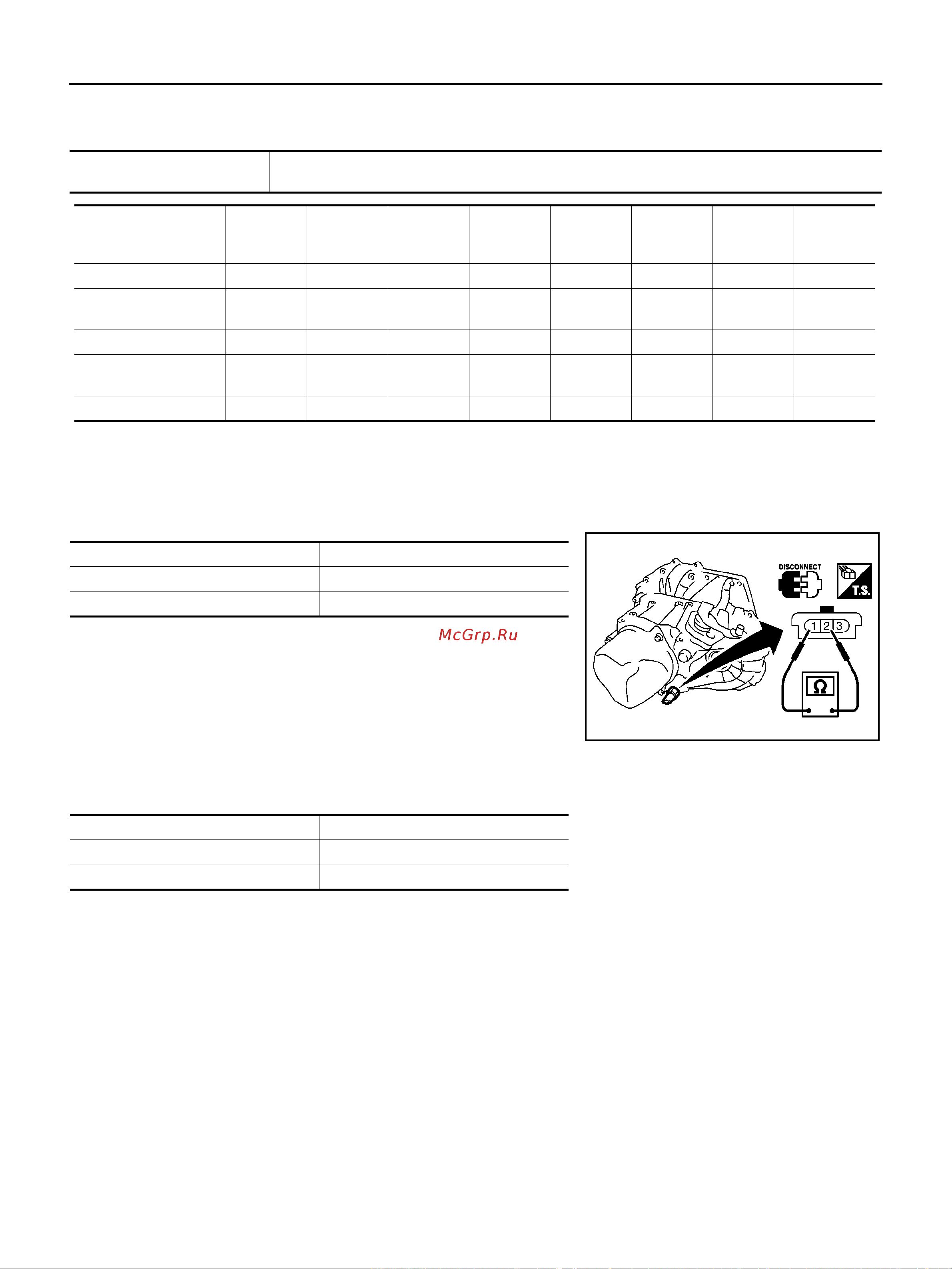

MT-16
[JH3]
TROUBLE DIAGNOSIS
TROUBLE DIAGNOSIS
PFP:00004
Symptom Chart
BCS000LF
NOTE:
The numbers indicate the order of priority for diagnostics.
Back-Up Lamp Switch
BCS000LG
● Check continuity between terminals 1 and 2.
Park/Neutral Position Switch
BCS000LH
● Check continuity between terminals 2 and 3.
Symptoms (after checking
the clutch)
Possible causes
Symptoms
Oil level
or grade
External
control
Synchro-
nizer
Gearing
Sliding
gear hub
Fork and
balls
Bearings
Engine
mounting
- housing
Gear grinding 1 2 3 4
One or more gears
cannot be selected
123 4
Gear disengagement 2 4 4 3 1
One or more gears
locked
1423
Noisy132
Gear position Continuity
Reverse Yes
Except reverse No
MCIA0157E
Gear position Continuity
Neutral Yes
Except neutral No
