MT-20
[JH3]
SEPARATING THE HOUSINGS
SEPARATING THE HOUSINGS
PFP:32010
Removal
BCS000LO

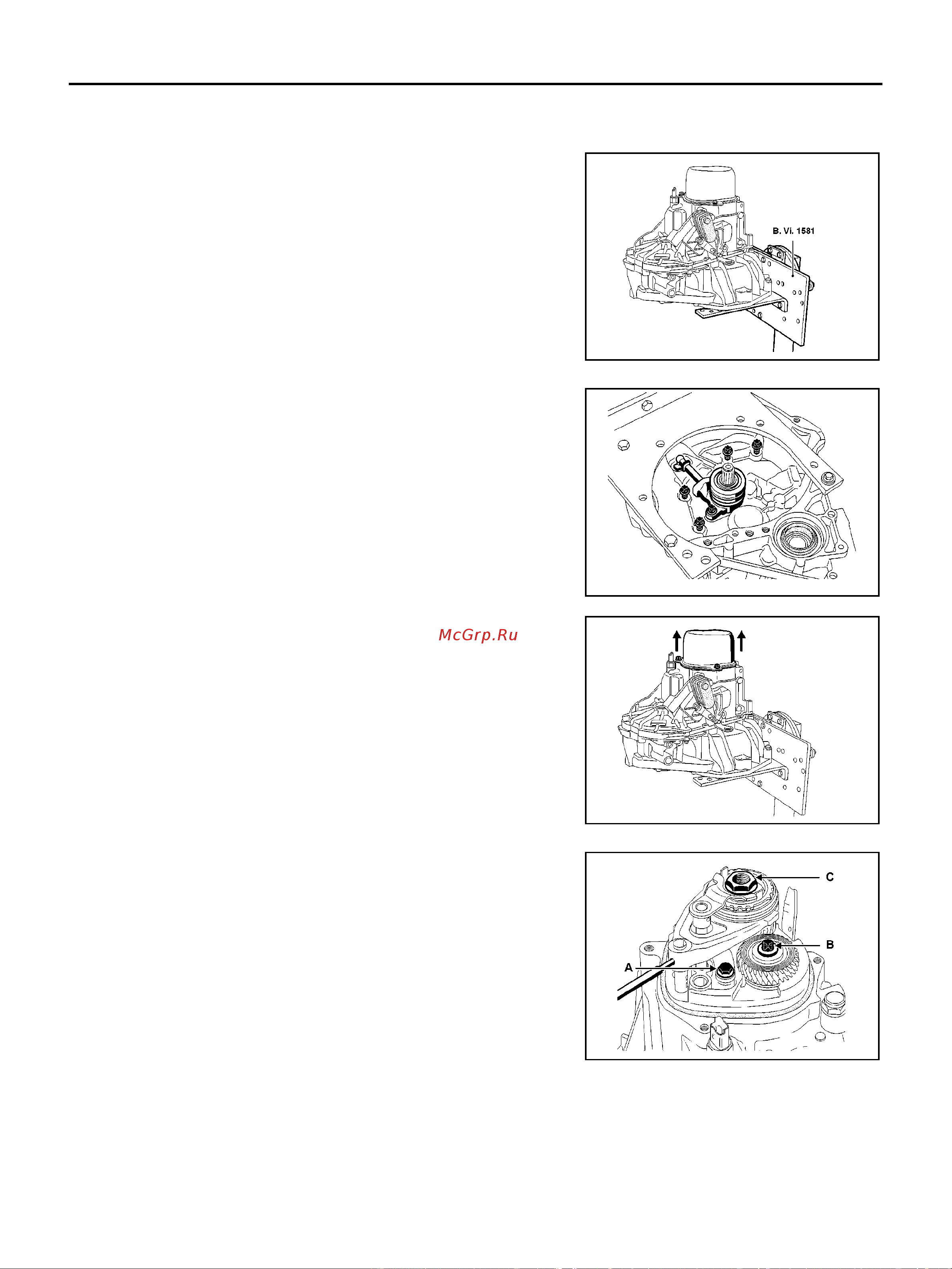

Fit the B. Vi. 1581 support plate on a Desvil stand.
Fit the gearbox on the B. Vi. 1581 support.
1. Remove the concentric slave cylinder.
2. Remove the bolts located inside the housing.
3. Remove the rear housing. This must be removed along the hori-
zontal axis of the gearbox because it has a lubrication spline
which is located in the input shaft bore.
Remove the two reverse gear fork support mounting bolts (A).
Drive in the 5th gear fork using B. Vi. 31-01.
Shift the 3rd gear on the gear selector lever and the 5th gear by
sliding the 5th gear fork on its shaft.
4. Remove the mainshaft bolt (B).
5. Remove the input shaft nut (C).
6. Remove the reverse gear synchronizer.
7. Remove the 5th gear fork and sliding gear.
MCIB0021E
MCIB0022E
MCIB0023E
MCIB0024E
