COMPONENTS
MT-9
[JH3]
D
E
F
G
H
I
J
K
L
M
A
B
MT
COMPONENTS PFP:32010

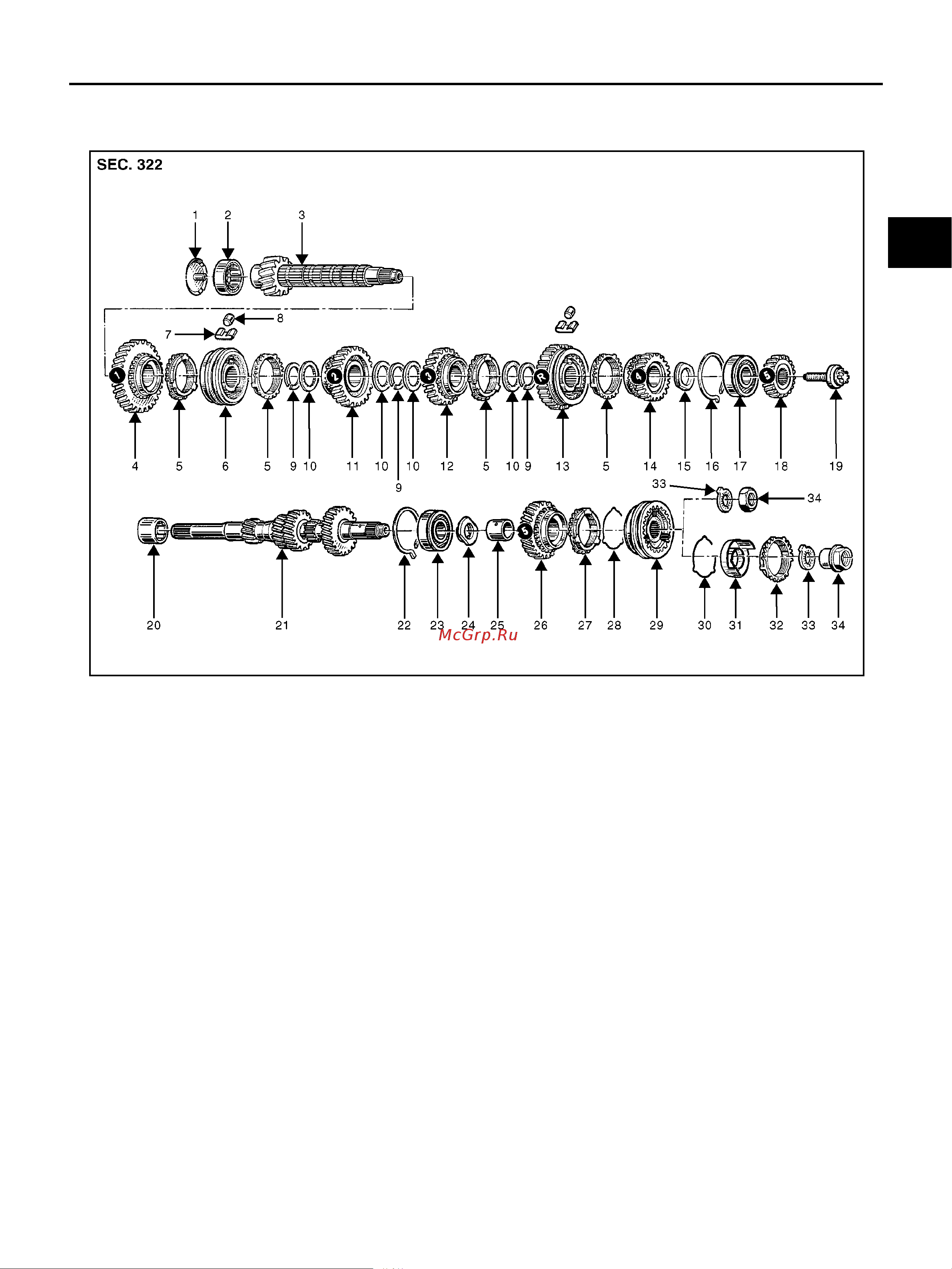

Gear Components
BCS000L6
1. Oil channel 2. Mainshaft front bearing 3. Mainshaft
4. 1st main gear 5. Baulk ring 6. 1st & 2nd synchronizer hub
7. Spring 8. Roller 9. Stop ring
10. Adapter plate 11. 2nd main gear 12. 3rd main gear
13. 3rd & 4th synchronizer hub 14. 4th main gear 15. Support washer
16. Retaining clip 17. Mainshaft rear bearing 18. 5th main gear
19. Bolt 20. Bearing guide 21. Input shaft
22. Retaining clip 23. Input shaft rear bearing 24. Support washer
25. 2nd & 3rd gear bushing 26. 5th main gear 27. Baulk ring
28. Spread spring 29. 5th synchronizer hub 30. Spread spring
31. Friction cone 32. Baulk ring 33. Washer
34. Nut
MCIB0130E
