ASSEMBLY
MT-61
[JR5]
D
E
F
G
H
I
J
K
L
M
A
B
MT
ASSEMBLY PFP:00000
Refitting
BCS000N3

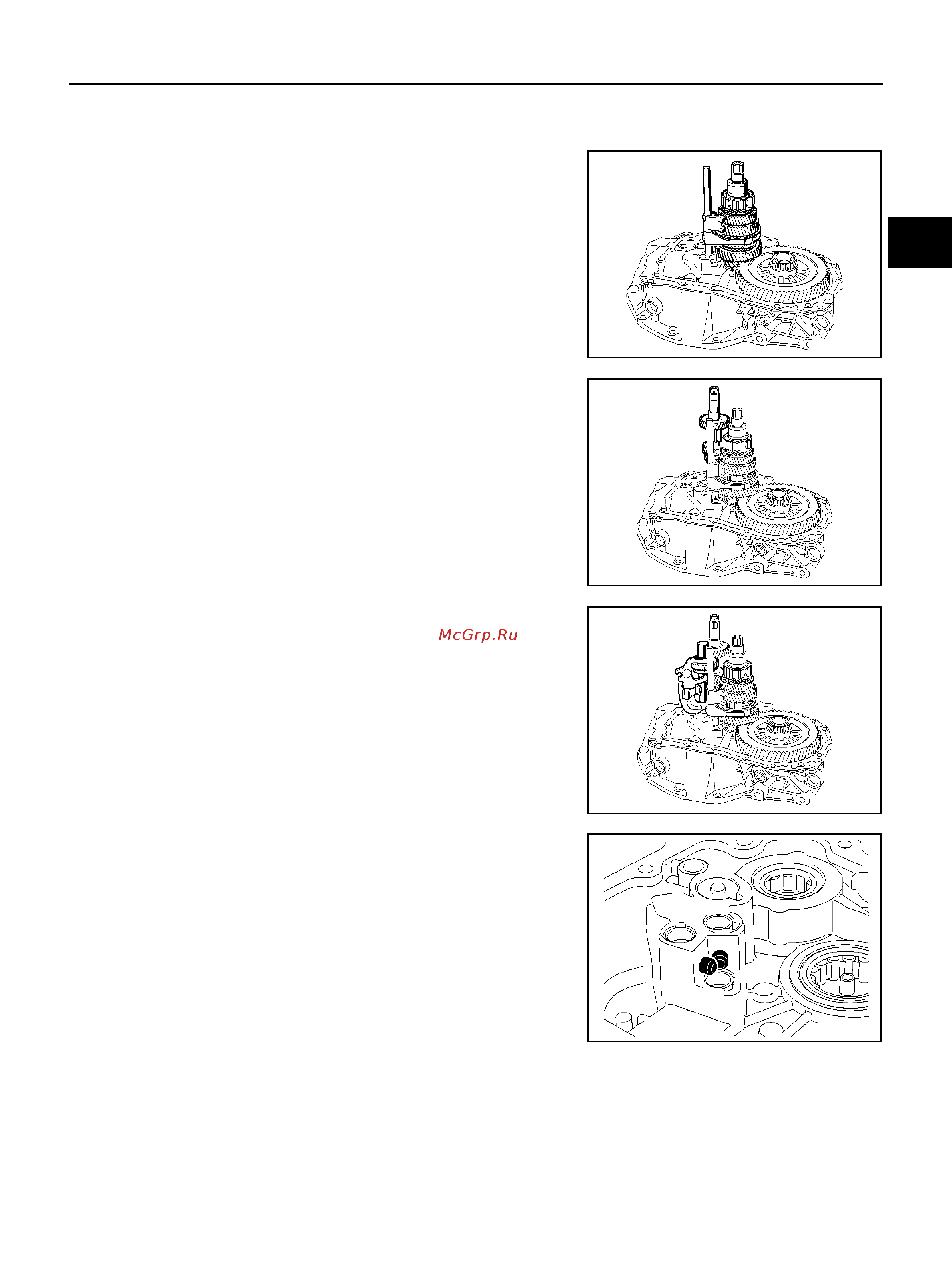

1. Fit the mainshaft and 1st/2nd gear fork assembly.
2. Fit the input shaft.
3. Fit the reverse gear assembly.
4. Fit the two locking shafts.
MCIB0055E
MCIB0056E
MCIB0057E
MCIB0058E
