Nissan Note [22/66] Repairing the gearbox
![Nissan Note [22/66] Repairing the gearbox](/views2/1789828/page22/bg16.png)
MT-22
[JH3]

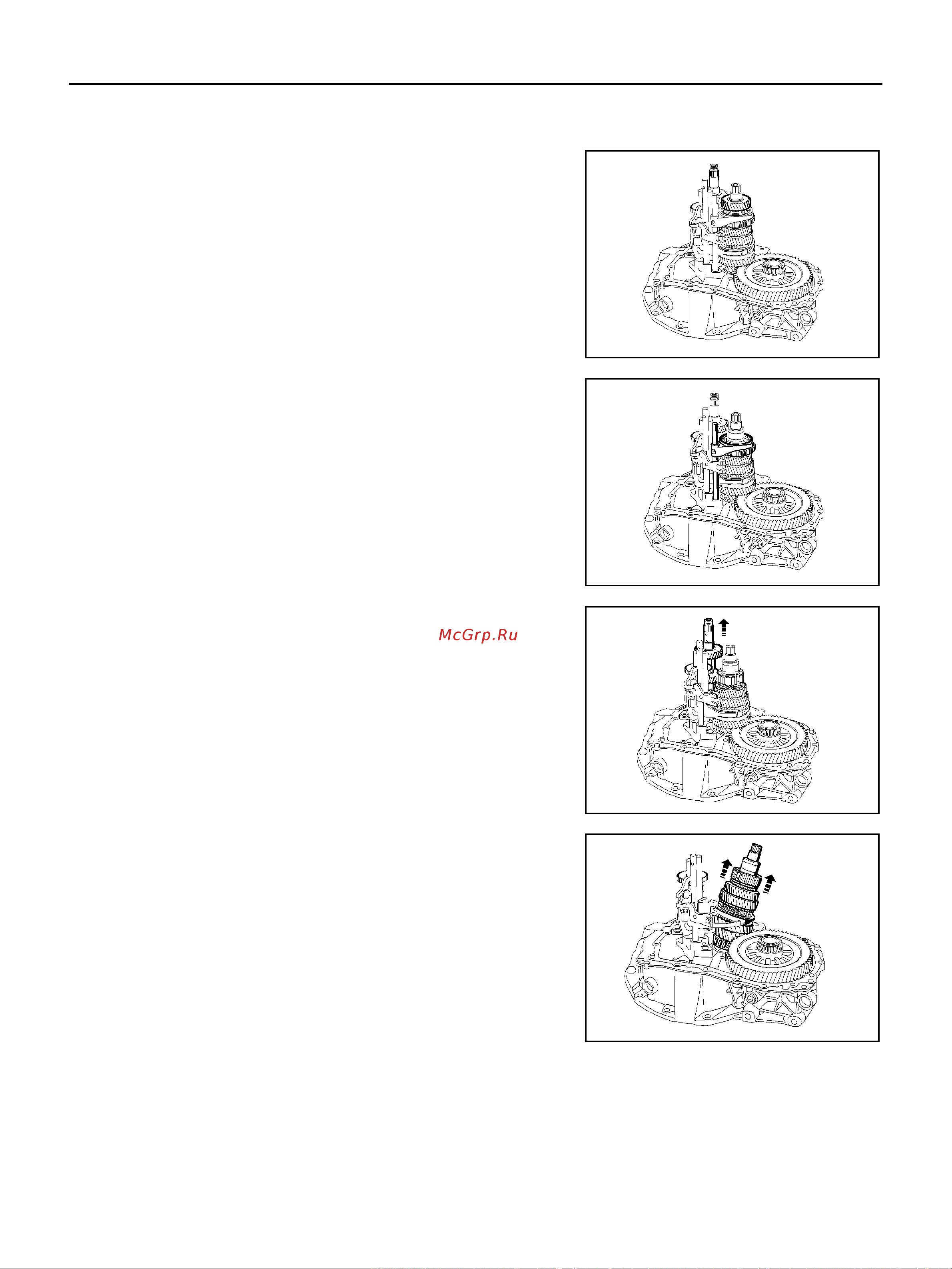

REPAIRING THE GEARBOX
REPAIRING THE GEARBOX
PFP:32010
Removal
BCS000LP
1. Remove the 4th-gear pinion.
2. Remove the 3rd/4th gear shaft/fork and sliding gear assembly
while gently lifting the mainshaft assembly.
3. Remove input shaft assembly.
4. Remove mainshaft assembly.
MCIB0028E
MCIB0029E
MCIB0030E
MCIB0031E
