Nissan Note [12/66] Control linkage
![Nissan Note [12/66] Control linkage](/views2/1789828/page12/bgc.png)
MT-12
[JH3]
CONTROL LINKAGE
CONTROL LINKAGE
PFP:34103
Removal and Installation of Control Device and Cable
BCS000LB
REMOVAL
1. Remove center console and shift boot. Refer to IP-4, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove control device mounting bolts.
3. Pressing release bottom of cable end, remove cable from either manual transmission shift lever.
4. Lift up cable and remove it from cable bracket 1.
5. Remove center muffler and heat plate. Refer to EX-3, "
Removal and Installation" , “EXHAUST SYSTEM”.
6. Remove cable bracket 2 from the vehicle. (Only for HR16DE)
7. Remove front and rear claws of control device. Remove control device and cable from the vehicle.
NOTE:
If shift knob needs to be removed, pull it up to remove.
INSTALLATION
Note the following, and install in the reverse order of removal.
● When installing, make sure to insert cable end into either manual transmission shift lever.
● After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or
Reverse.
● After installation, make sure that the shift to each position works well.
● When installing shift knob, press it onto selector lever.

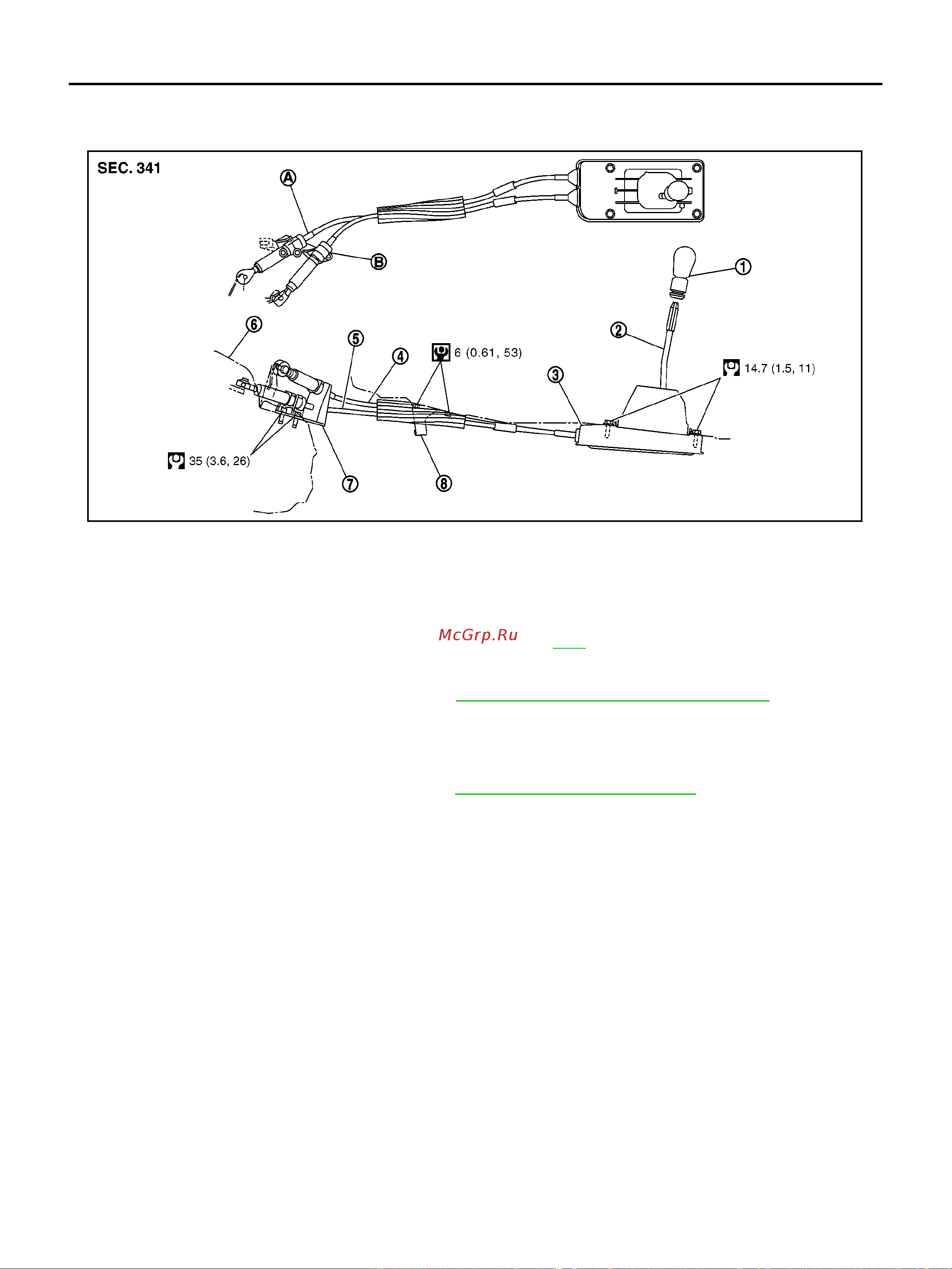

1. Shift knob 2. Shift lever 3. Control device
4. Selector lever 5. Shift cable 6. Clutch housing
7. Cable bracket 1 8. Cable bracket 2*
A. Black color B. White color
*: Only for HR16DE
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11
.
MCIB0167E
