COMPONENTS
MT-41
[JR5]
D
E
F
G
H
I
J
K
L
M
A
B
MT

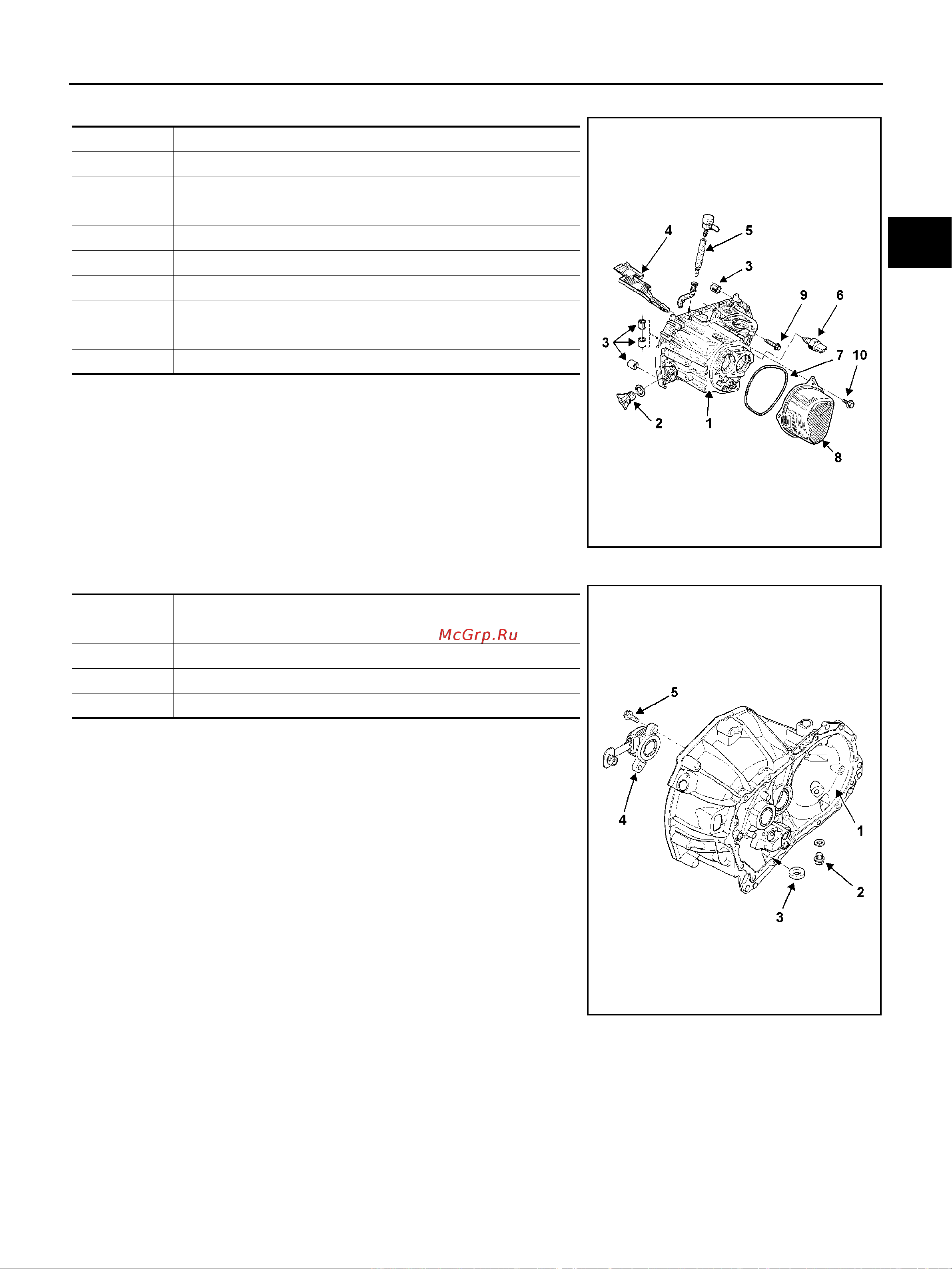

Case Components
BCS000MA
Clutch Housing
BCS000MB
1 Transaxle case
2 Filler plug
3 Dowel pin
4Oilgutter
5Breatherpipe
6 Back-up lamp switch
7O-ring
8 Transaxle case cover
9 Gearbox edge bolt [25 N·m (2.6 kg-m, 18 ft-lb)]
10 Fifth gear housing bolt [25 N·m (2.6 kg-m, 18 ft-lb)]
MCIB0013E
1Clutchhousing
2 Drain bolt [25 N·m (2.6 kg-m, 18 ft-lb)]
3 Magnet
4 Concentric slave cylinder
5 Concentric slave cylinder bolt [21 N·m (2.1 kg-m, 15 ft-lb)]
MCIB0014E
