SEPARATING THE HOUSINGS
MT-51
[JR5]
D
E
F
G
H
I
J
K
L
M
A
B
MT

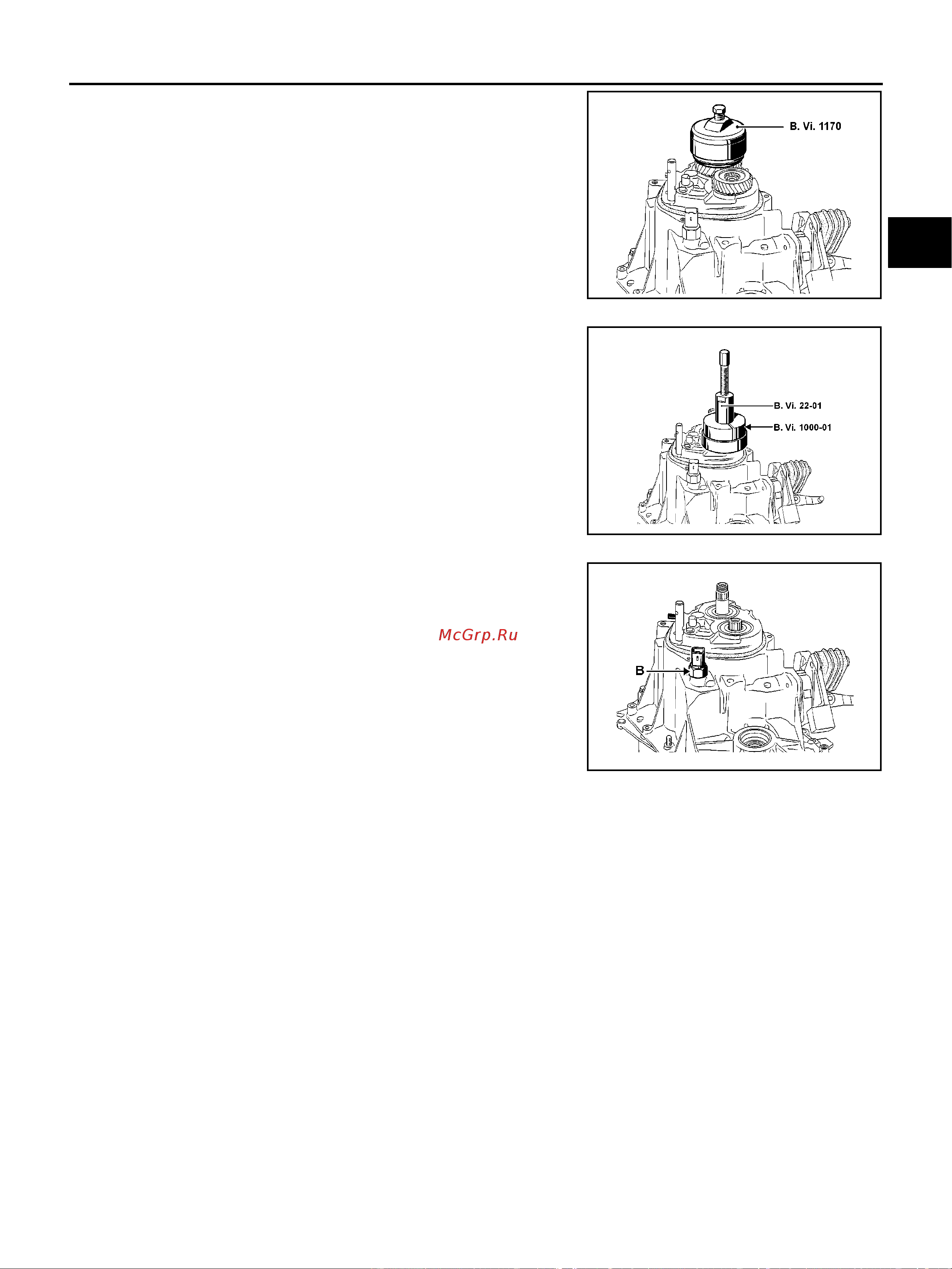

Remove the 5th gear hub using B. Vi. 1170.
To do this, fit the sliding gear B. Vi. 1170 and rotate it so that the
splines are opposite those of the input shaft hub.
Remove the fixed 5th gear using B. Vi. 22-01 and B. Vi. 1000-
01.
Remove the gearbox edge bolts.
Remove the back-up lamp switch (B).
Engage 3rd gear.
Lift and remove the mechanism housing.
MCIB0025E
MCIB0026E
MCIB0027E
