Sony VPCB11X9E/B [108/206] Connecting a usb device

108

Using Peripheral Devices >

Connecting a USB Device

You can connect a Universal Serial Bus (USB) device to your computer, such as a mouse, floppy disk drive, speaker, and

printer.

You cannot use USB devices if you disable the USB ports in the BIOS setup screen. To enable the ports, follow the steps and the tip in Disabling Built-

in Devices (page 125).

If the use of USB ports is restricted by the USB Access Restriction Setting utility, you cannot use USB devices. To change the setting, see Restricting

USB Access (page 127).

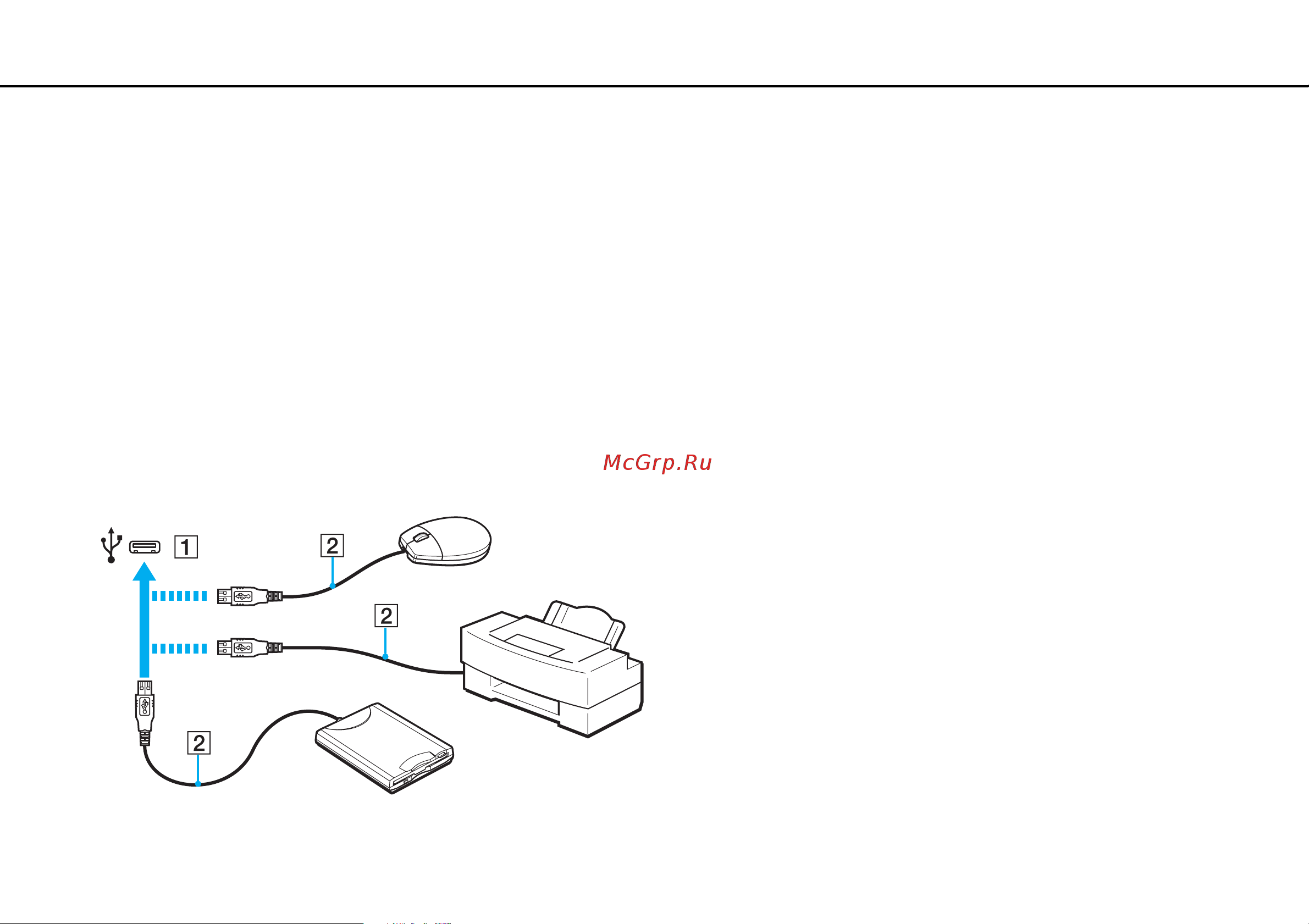

To connect a USB device

1 Choose the USB port (1) you prefer to use.

2 Plug the USB device cable (2) into the USB port.
