Sony VPCB11X9E/B [15/206] Locating controls and ports

Getting Started >

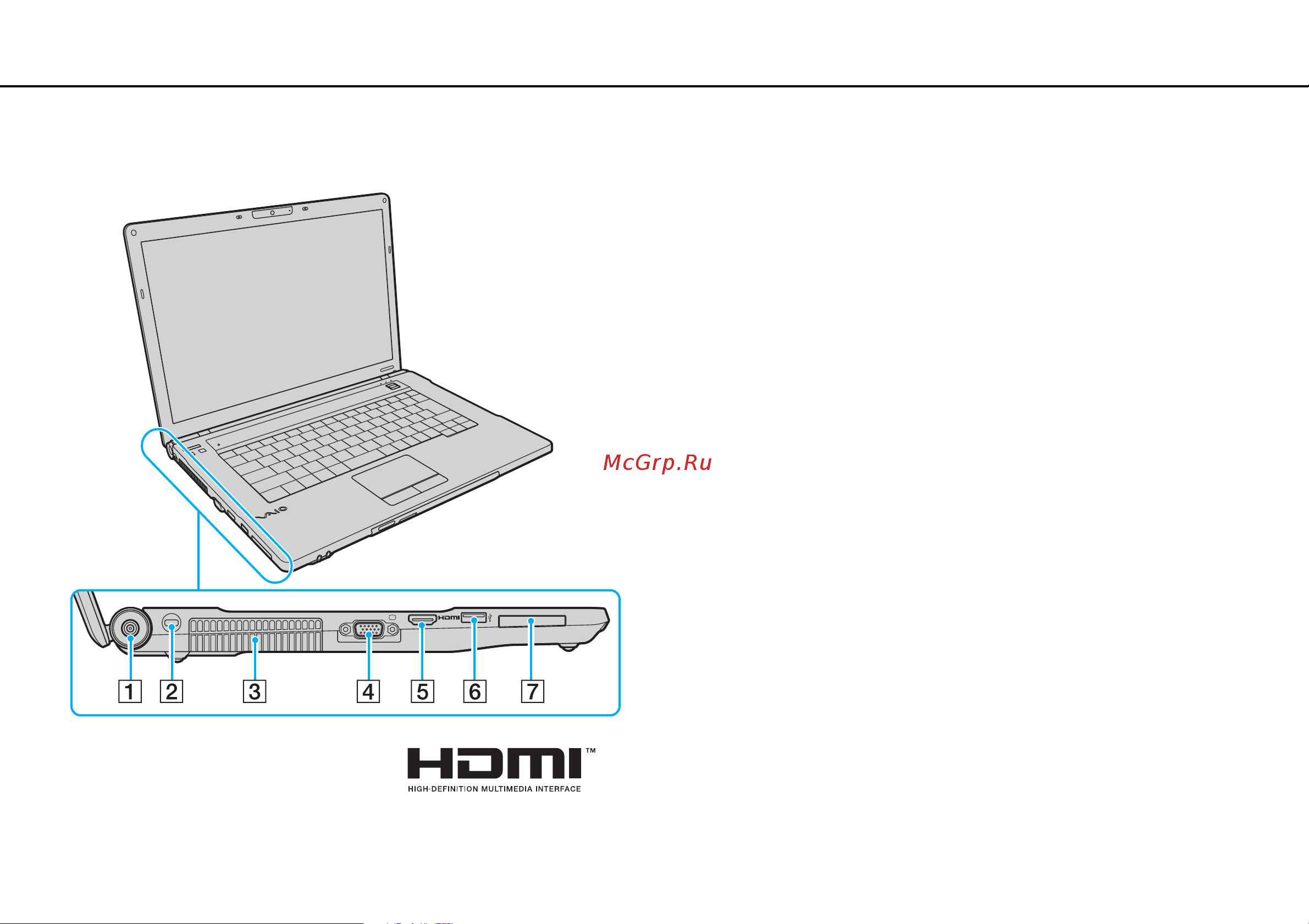

Locating Controls and Ports

Left

A DC IN port (page 18)

B Security slot

C Air vent

D Monitor port

(page 99)

E HDMI output port (page 101)

F USB port

(page 108)

G ExpressCard/34 slot (page 51)

Not functional when your computer is attached to the docking station.

Compliant with the USB 2.0 standard and supports high-/full-/low- speeds.
