Sony VPCB11X9E/B [14/206] Locating controls and ports

Getting Started >

Locating Controls and Ports

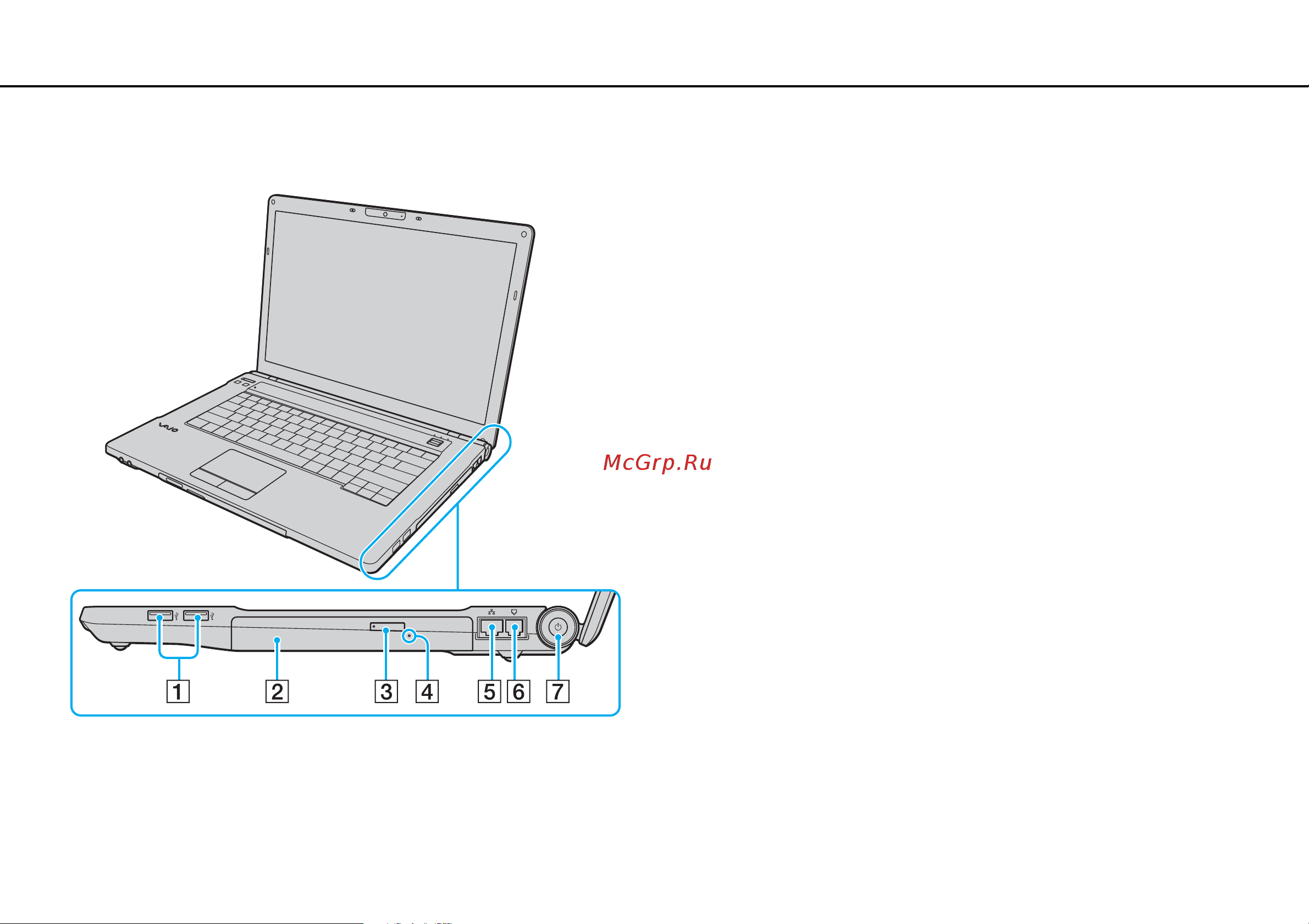

Right

A USB ports

(page 108)

B Optical disc drive (page 36)

C Drive eject button (page 36)

D Manual eject hole (page 181)

E Network (LAN) port (page 61)

F Modem port (page 59)

G Power button/Power indicator (page 17)

* Compliant with the USB 2.0 standard and support high-/full-/low- speeds.
