Sony VPCB11X9E/B [89/206] Connecting a docking station

Using Peripheral Devices >

Connecting a Docking Station

Attaching a docking station enables you to connect additional peripherals to your computer, such as a printer and an external

display.

A docking station is not supplied with your computer and is available as an optional accessory.

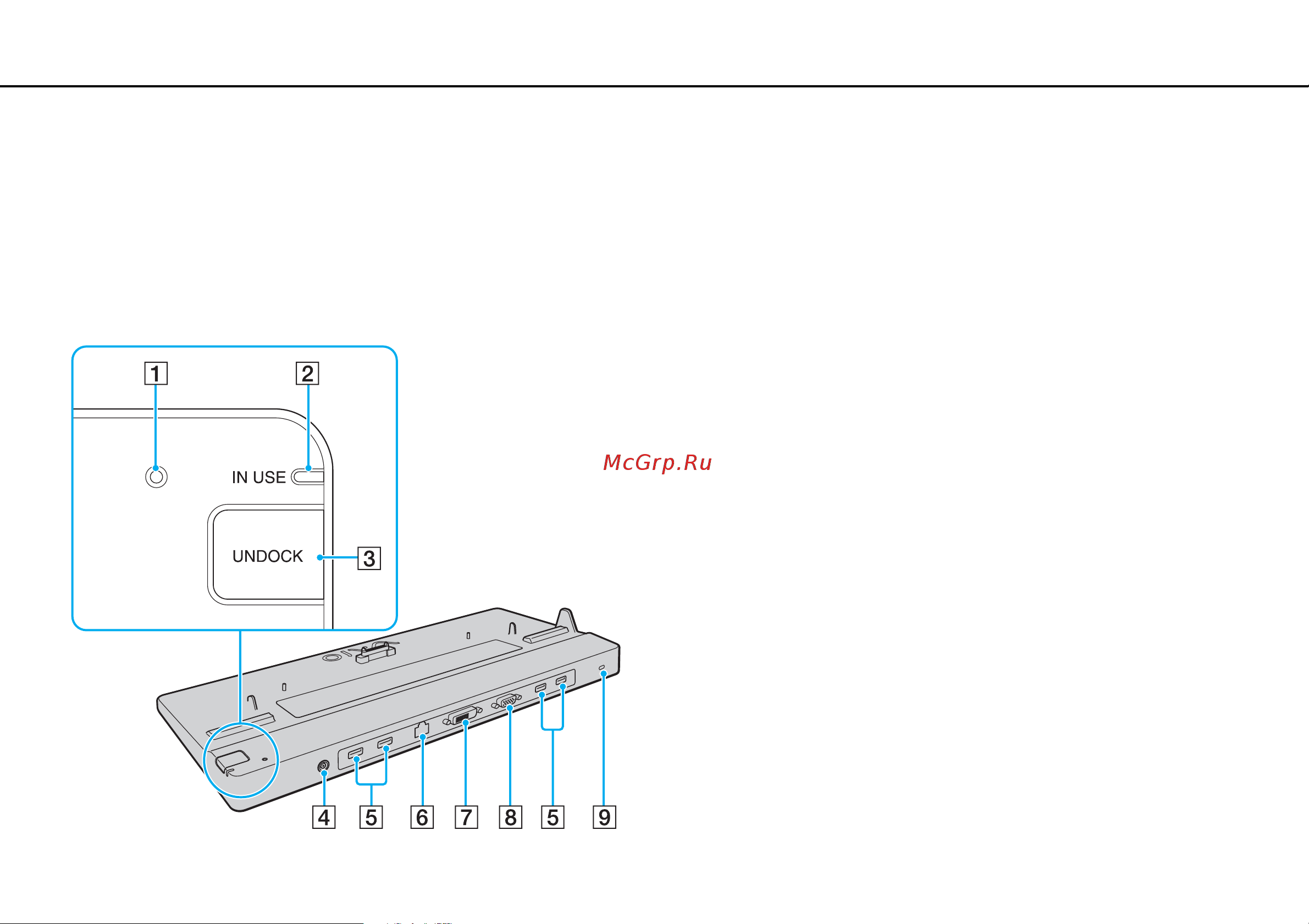

Locating Ports on the Docking Station

A DC IN indicator

Illuminates while the docking station is powered.

B IN USE indicator (page 94)

C UNDOCK button (page 94)

D DC IN port (page 91)

E USB ports

(page 108)

F Network (LAN) port (1000BASE-T / 100BASE-TX / 10BASE-T)

(page 61)

G DVI-D port (page 99)

H MONITOR port (page 99)

I Security slot

* Compliant with the USB 2.0 standard and support high-/full-/low- speeds.
